osłony ciśnieniowe, wiercone, z kołnierzem

Opis produktu

Wiercona osłona ciśnieniowa z kołnierzem.
Przeznaczona do czujników temperatury przy pomiarach temperatury gazów i cieczy pod dużym ciśnieniem.
Testowana ciśnieniowo: 500 bar, 20°C.

Dane techniczne

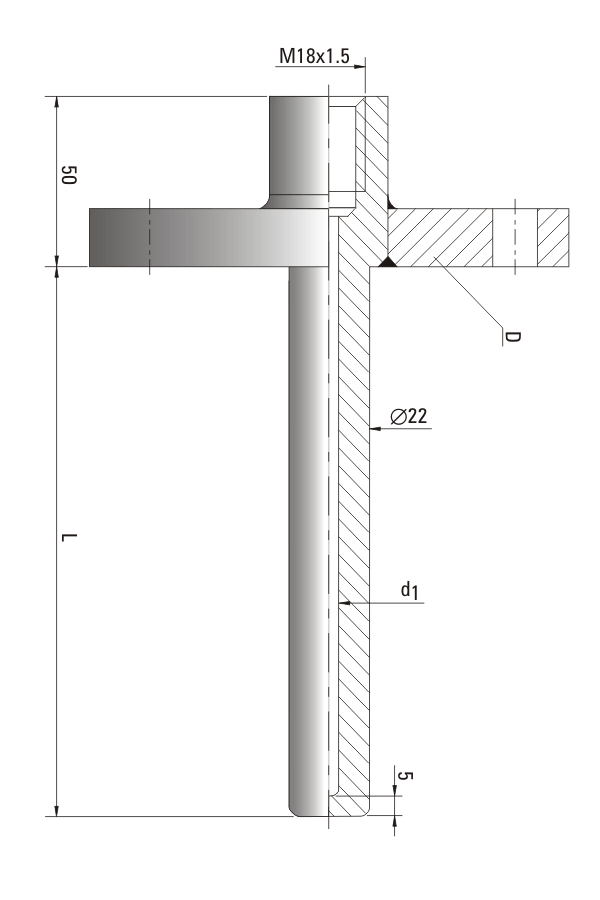

Typ	L [mm]	d₁	D	Materiał
F1	100	Ø7,0 lub Ø9,0	według PN-ISO 7005-1	1.4305 lub 1.4571 lub 1.4541
F2	200
F3	300
F4	400
F5	500
F6	600

Załączniki do produktu

oslony wiercone - karta katalogowa

{"typ":{"type":"translate","separator":"-","multiple":"0","translations":{"f1":{"value":"1","input":"0"},"f2":{"value":"2","input":"0"},"f3":{"value":"3","input":"0"},"f4":{"value":"4","input":"0"},"f5":{"value":"5","input":"0"},"f6":{"value":"6","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-d1-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"o7":{"value":"7","input":"0"},"o9":{"value":"9","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"oznaczenie-d":{"type":"user","separator":"-","multiple":"0","translations":{"specyfikacja-wedlug-pn-iso-7005-1":{"value":"","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"material":{"type":"translate","separator":"-","multiple":"0","translations":{"1-4305":{"value":"1.4305","input":"0"},"1-4571":{"value":"1.4571\t","input":"0"},"1-4541":{"value":"1.4541","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ

średnica d1 [mm]

oznaczenie D

materiał

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
