osłony ciśnieniowe, wiercone, do wspawania

osłony ciśnieniowe, wiercone, z kołnierzem

Opis produktu

Przeznaczona do czujników temperatury przy pomiarach temperatury gazów i cieczy pod dużym ciśnieniem.
Testowana ciśnieniowo: 500 bar, 20°C.

Dane techniczne

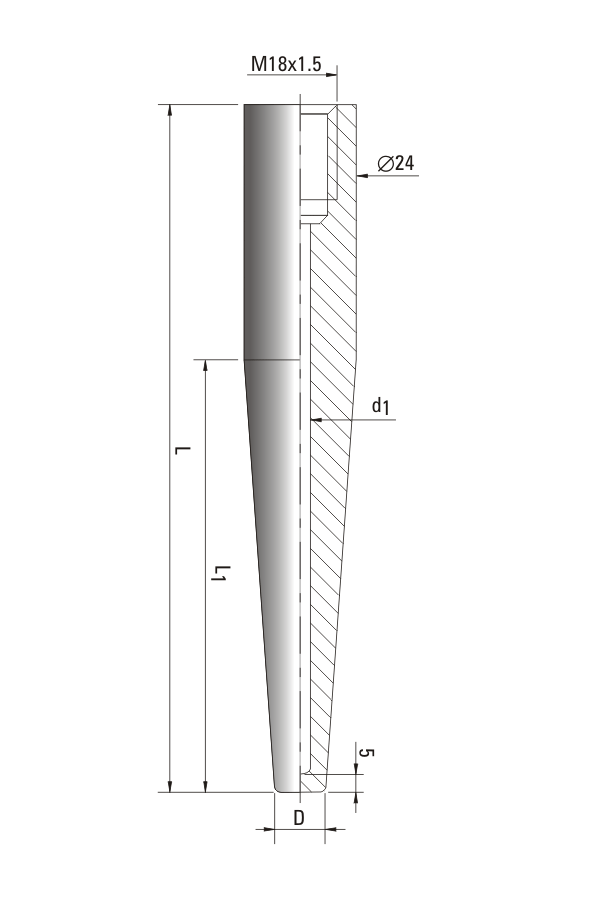

Typ	L [mm]	L₁ [mm]	d₁/D [mm]	Materiał
D1	100	50	Ø7,0/Ø12,5 lub Ø9,0/Ø14,5	1.4305 lub 1.4571 lub 1.4541
D2	200	150
D3	300	200
D4	400	250
D5	500
D6	600

Załączniki do produktu

oslony wiercone - karta katalogowa
