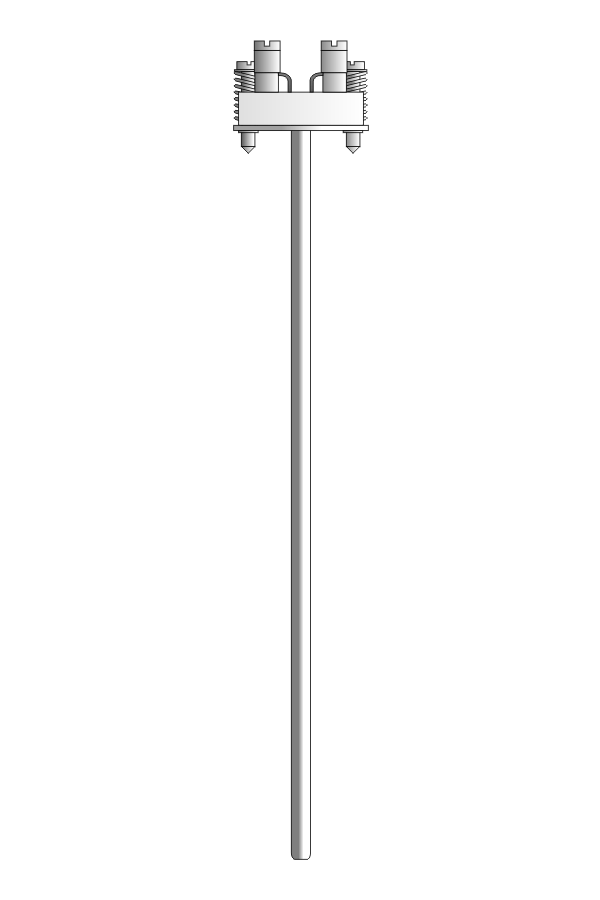

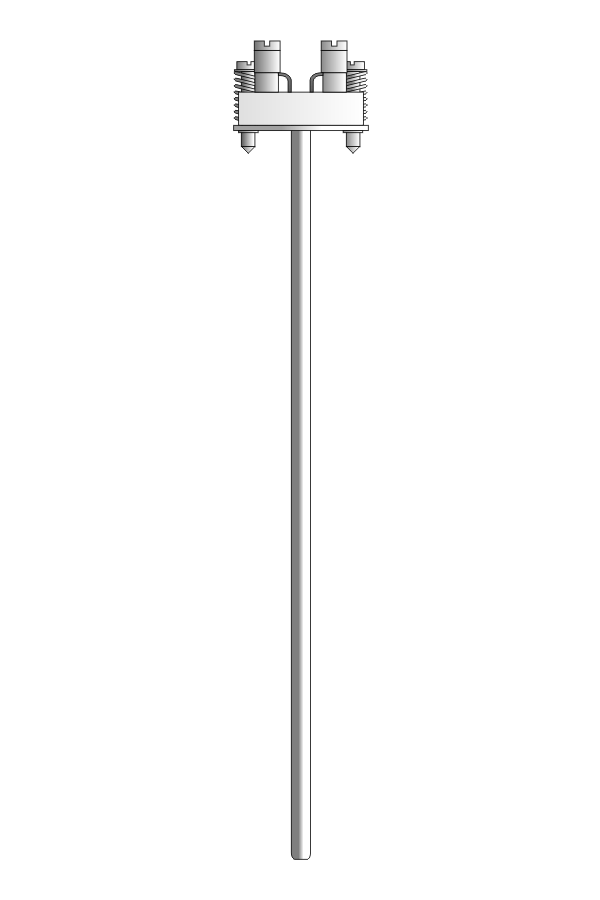

Czujnik temperatury TP-701_702

Czujnik temperatury TP-701_702

Czujnik temperatury TP-701_702

Opis produktu

Wymienny wkład pomiarowy do czujników temperatury.

Dane techniczne

Zakres pomiarowy	-40÷550°C opornik platynowy Pt100
	-40÷400°C termoelement Cu-CuNi (T)
	-40÷600°C termoelement Fe-CuNi (J)
	-40÷900°C termoelement NiCr-NiAl (K)
Elementy przetwarzające	pojedynczy Pt100, 2-przewodowo
	pojedynczy Pt100, 3-przewodowo
	pojedynczy Pt100, 4-przewodowo
	podwójny Pt100, 2-przewodowo
	podwójny Pt100, 3-przewodowo:
	pojedyncza termopara J
	pojedyncza termopara K
	pojedyncza termopara T
	podwójna termopara J
	podwójna termopara K:
	podwójna termopara T
Klasa elementu przetwarzającego	Pt100: B
Klasa elementu przetwarzającego	termopara T, J, K: 2
Rodzaj spoiny	izolowana

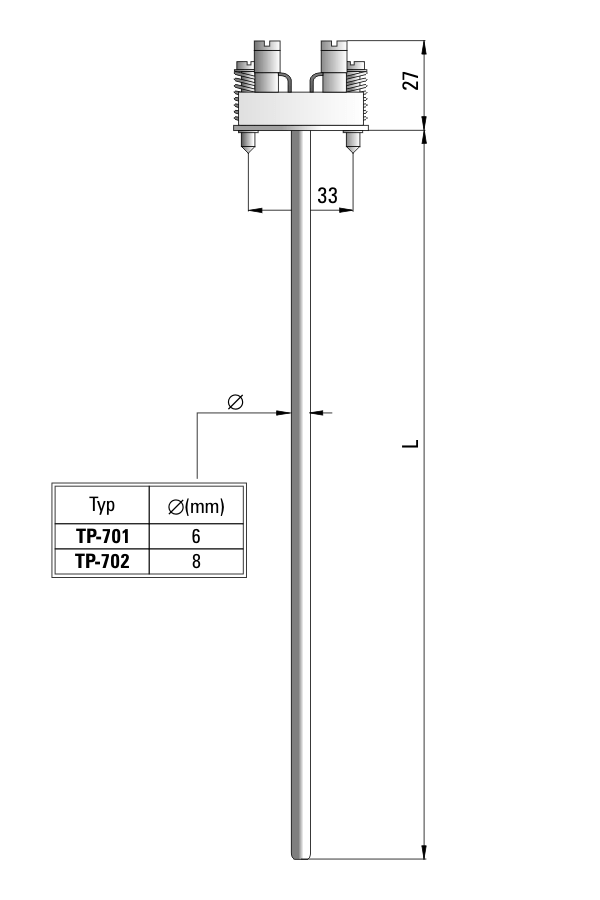

Długość wkładu (L)	80, 130, 230, 330, 430, 530, 630, 730, 830, 930, 1030, 1130 mm
Średnica osłony
TP-701	6 mm
TP-702	8 mm
Materiał osłony	stal 1H18N9T
Wyposażenie dodatkowe	przetwornik temperatury

Załączniki do produktu

TP-701_702 karta katalogowa

{"typ-srednica-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-701-o-6mm":{"value":"701","input":"0"},"tp-702-o-8mm":{"value":"702","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"},"termoelement-t-cu-cuni":{"value":"T","input":"0"},"opornik-platynowy-pt500":{"value":"Pt500","input":"0"},"opornik-platynowy-pt1000":{"value":"Pt1000","input":"0"},"opornik-niklowy-ni100":{"value":"Ni100","input":"0"},"opornik-niklowy-ni1000":{"value":"Ni1000","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"80":{"value":"","input":"0"},"130":{"value":"","input":"0"},"230":{"value":"","input":"0"},"330":{"value":"","input":"0"},"430":{"value":"","input":"0"},"530":{"value":"","input":"0"},"630":{"value":"","input":"0"},"730":{"value":"","input":"0"},"830":{"value":"","input":"0"},"930":{"value":"","input":"0"},"1030":{"value":"","input":"0"},"1130":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"30","to":"2030","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"klasa-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-2-standard":{"value":"-","input":"0"},"klasa-1":{"value":"(kl.1)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"K,J,T"}]}},"spoina-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"izolowana-standard":{"value":"-","input":"0"},"uziemiona":{"value":"(a)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"K,J,T"}]}},"klasa-montaz-termorezystora":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-b-2-przewodowo":{"value":"-","input":"0"},"klasa-b-3-przewodowo":{"value":"(3p)","input":"0"},"klasa-b-4-przewodowo":{"value":"(4p)","input":"0"},"klasa-a-3-przewodowo":{"value":"(A3p)","input":"0"},"klasa-a-4-przewodowo":{"value":"(A4p)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"Pt100,Pt500,Pt1000,Ni100.Ni1000"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ / średnica [mm]

element przetwarzający

element pojedynczy/podwójny

długość czujnika (L) [mm]

przewód kompensacyjny - izolacja

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego

WYKONANIA DOSTĘPNE NA MAGAZYNIE
