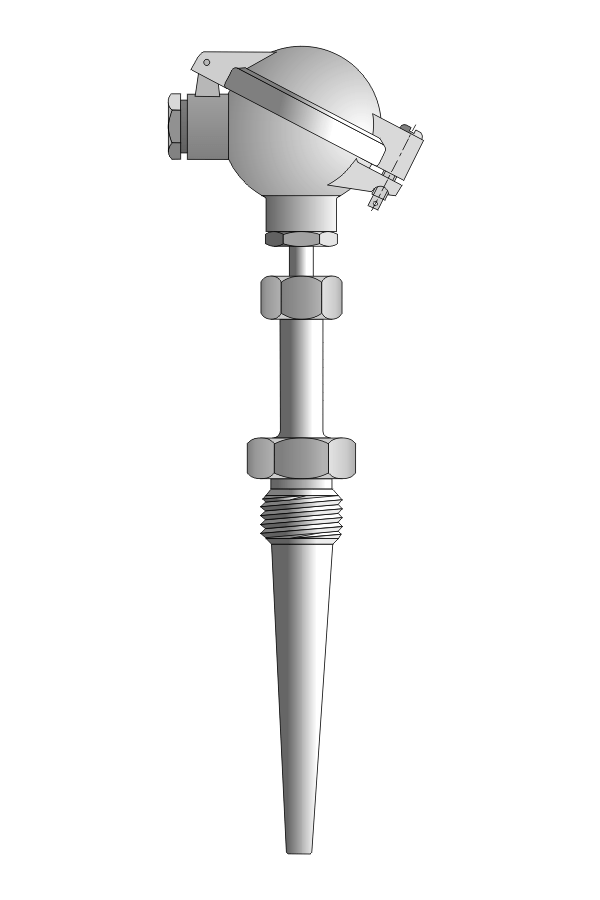

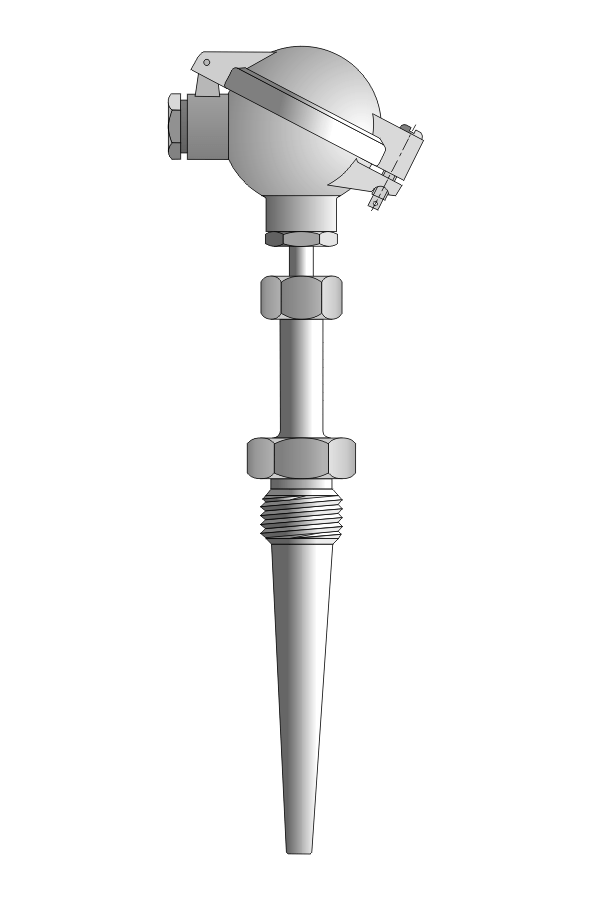

Czujnik temperatury TP-528

Czujnik temperatury TP-528

Czujnik temperatury TP-528

Opis produktu

Pomiar temperatury spalin silników wysokoprężnych, głównie okrętowych.

Dane techniczne

Zakres pomiarowy	-40÷800°C
Element przetwarzający	termoelement NiCr-NiAl (K)
Podłączenie termoelementów	pojedynczy termoelement
Podłączenie termoelementów	podwójny termoelement
Klasa termoelementu	1
Rodzaj spoiny pomiarowej termoelementu	izolowana
Osłona	jednolita, wysokociśnieniowa
Materiał osłony	stal 1H18N9T

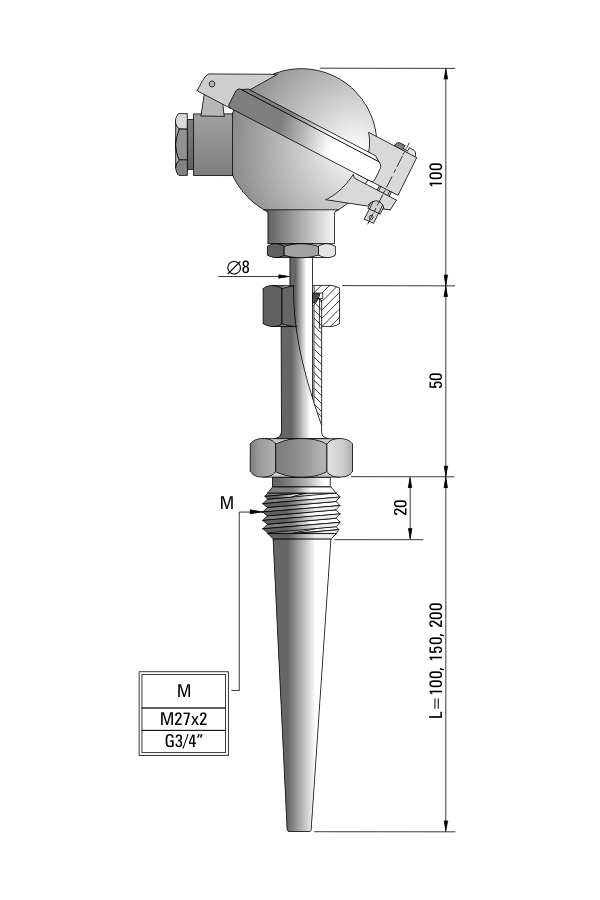

Przyłącze procesowe (M)	M27x2, G3/4″
Długość zanurzeniowa (L)	100, 150, 200 mm
Maksymalne ciśnienie robocze	12 MPa
Głowica przyłączeniowa	NA, IP54, 100°C
Wyposażenie dodatkowe	przewód kompensacyjny
Wyposażenie dodatkowe	przetwornik temperatury

Załączniki do produktu

TP-528 karta katalogowa

{"element-przetwarzajacy-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"100":{"value":"","input":"0"},"150":{"value":"","input":"0"},"200":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"50","to":"1000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przylacze-procesowe-m":{"type":"translate","separator":"-","multiple":"0","translations":{"m27x2":{"value":"","input":"0"},"g3-4":{"value":"","input":"0"},"inne":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"tak":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"glowica":{"type":"translate","separator":"","multiple":"0","translations":{"ba-standard":{"value":"-","input":"0"},"dnag-ip65":{"value":"(DNAG)","input":"0"},"beg-kwasoodporna":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przetwornik-temperatury":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"}]}},"zakres-przetwarzania-przetwornika":{"type":"translate","separator":"","multiple":"0","translations":{"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"0-1000c":{"value":"65","input":"0"},"0-1200c":{"value":"70","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TCH-21,TCH-31"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"-100","to":"200","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"0","to":"1200","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"-"}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

element przetwarzający pojedynczy / podwójny

długość czujnika L [mm]

przyłącze procesowe (M)

wykonanie pod przetwornik temperatury

głowica

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
