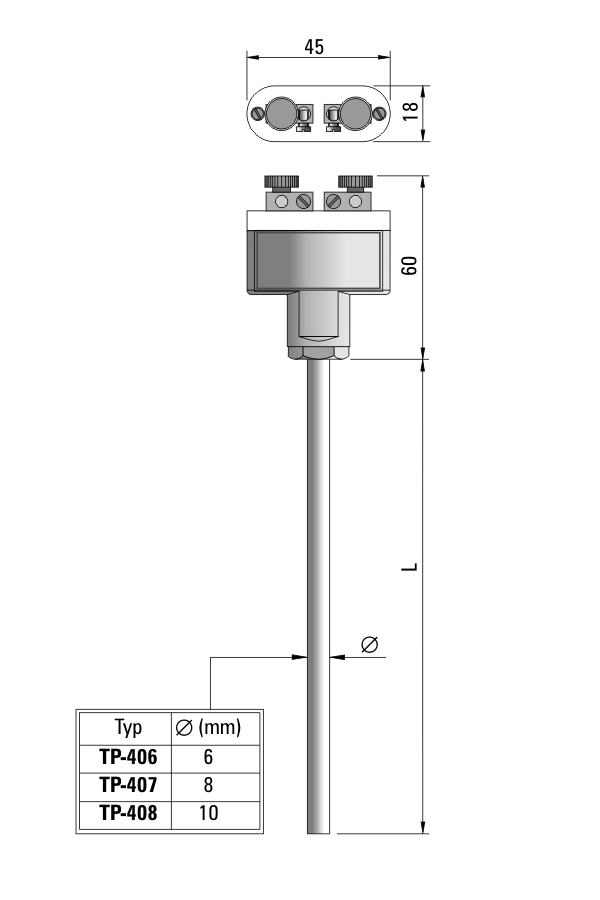

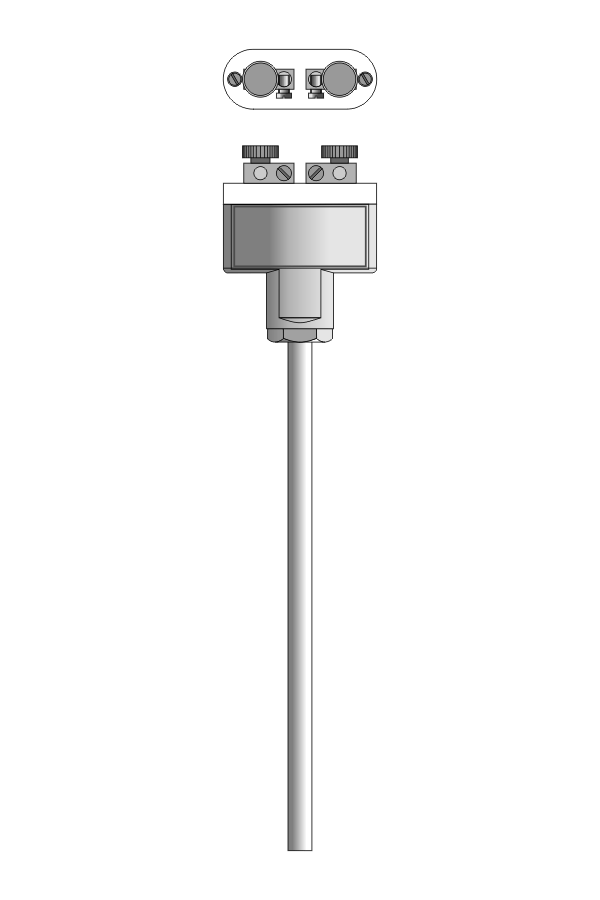

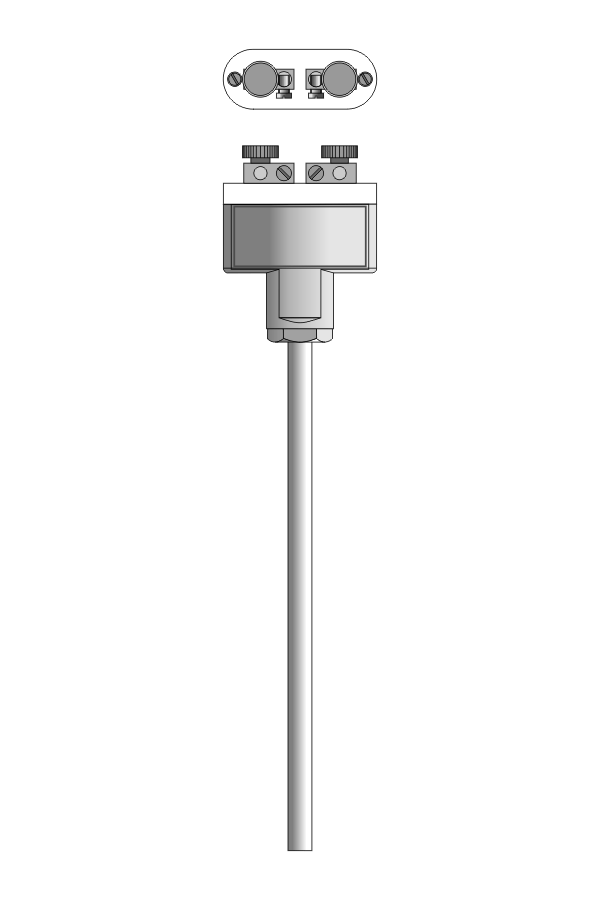

Czujnik temperatury TP-406_408

Czujnik temperatury TP-406_408

Czujnik temperatury TP-406_408

Opis produktu

Czujnik do pomiaru temperatury gazów, cieczy lub ciał stałych.

Dane techniczne

Zakres pomiarowy	-40÷550°C opornik platynowy Pt100 ⁽¹⁾
	-40÷400°C termoelement Cu-CuNi (T)
	-40÷600°C termoelement Fe-CuNi (J)
	-40÷900°C termoelement NiCr-NiAl (K)
Klasa elementu przetwarzającego	2 (B) ⁽³⁾
Materiał doprowadzeń (Pt100)	drut Cu/Ni
Montaż	2, 3, 4 przewodowy (Pt100)
Rodzaj spoiny termoelementu	izolowana ⁽²⁾
Typ głowicy	owalna-otwarta
Materiał osłony	stal 1H18N9T

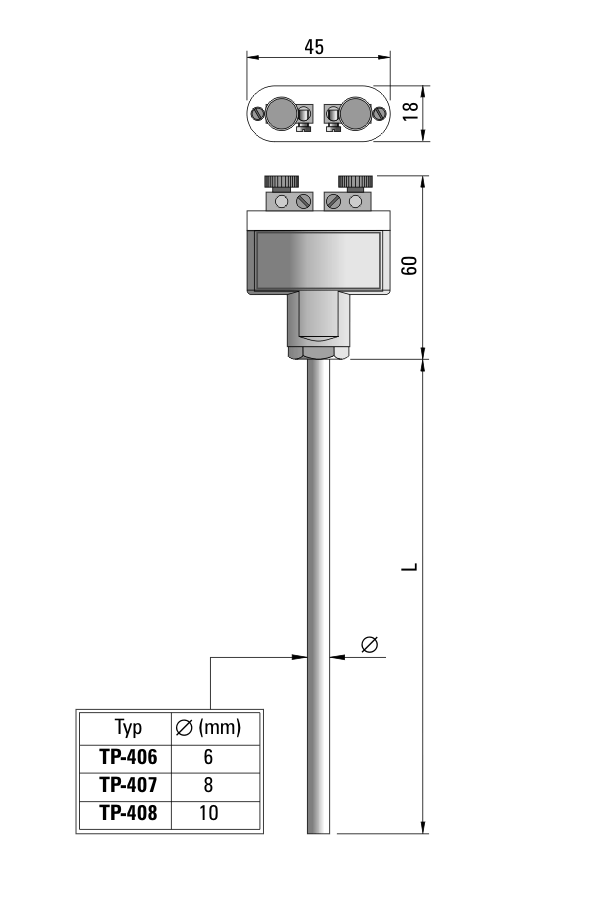

Średnica osłony Ø ⁽⁵⁾
TP-406	6
TP-407	8
TP-408	10
Długość czujnika L	200, 300, 400, 600, 800, 1000 mm ⁽²⁾
Wyposażenie dodatkowe	króciec przesuwny KP
	uchwyt zaciskowy UZ
	przewód kompensacyjny

⁽¹⁾ na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽²⁾ inne parametry na życzenie
⁽³⁾ na życzenie inna klasa elementu przetwarzającego: 1 (A)
⁽⁵⁾ na życzenie osłony o średnicy 9 i 11 mm

Załączniki do produktu

TP-401_408 karta katalogowa

{"typ-srednica-oslony-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-406-o-6mm":{"value":"406","input":"0"},"tp-407-o-8mm":{"value":"407","input":"0"},"tp-408-o-10mm":{"value":"408","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"-","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"},"termoelement-t-cu-cuni":{"value":"T","input":"0"},"opornik-platynowy-pt500":{"value":"Pt500","input":"0"},"opornik-platynowy-pt1000":{"value":"Pt1000","input":"0"},"opornik-niklowy-ni100":{"value":"Ni100","input":"0"},"opornik-niklowy-ni1000":{"value":"Ni1000","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"100","to":"2000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"krociec-przesuwny-kp":{"value":"KP","input":"0"},"uchwyt-kolnierzowy-uk":{"value":"UK","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"gwint-krocca":{"type":"translate","separator":"","multiple":"0","translations":{"m8x1-dla-srednicy-czujnika-max-6mm":{"value":"M8x1","input":"0"},"m10x1-dla-srednicy-czujnika-max-8mm":{"value":"M10x1","input":"0"},"m12x15-dla-srednicy-czujnika-max-9mm":{"value":"M12x1,5","input":"0"},"m20x15":{"value":"M20x1,5","input":"0"},"g1-2":{"value":"G1\/2\\\u0022","input":"0"},"inny":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wyposazenie-dodatkowe","is_equal":"KP"}]}},"klasa-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-2":{"value":"-","input":"0"},"klasa-1":{"value":"(kl.1)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"K,J,T"}]}},"klasa-termorezystora":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-b":{"value":"-","input":"0"},"klasa-a":{"value":"(kl.A)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"Pt100, Pt500, Pt1000, Ni100, Ni1000"}]}},"spoina-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"izolowana":{"value":"-","input":"0"},"uziemiona":{"value":"(a)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"","is_equal":"K,J,T"}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ / średnica osłony [mm]

element przetwarzający

element pojedynczy/podwójny

długość czujnika L [mm]

wyposażenie dodatkowe

spoina termoelementu

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego

WYKONANIA DOSTĘPNE NA MAGAZYNIE
