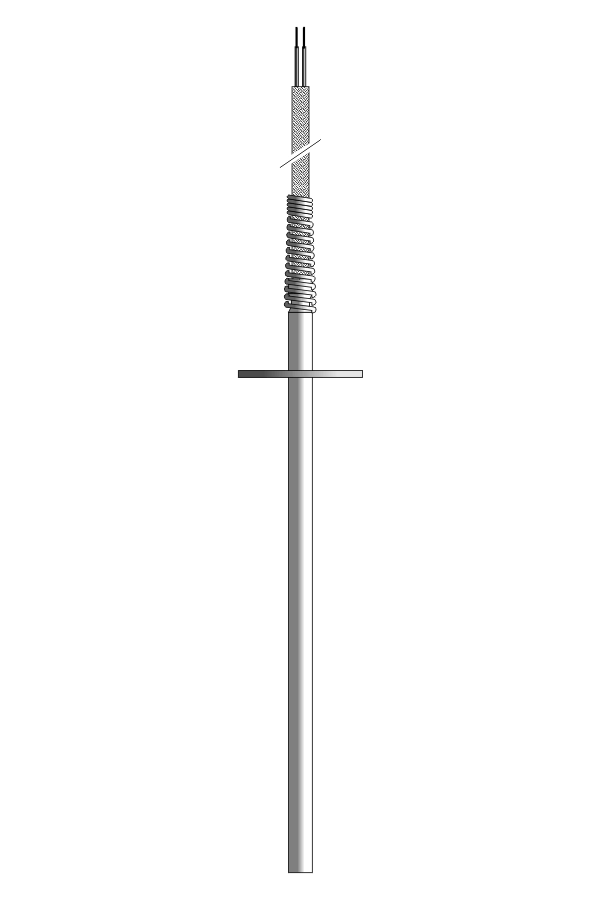

Czujnik temperatury TP-364

Opis produktu

Czujnik temperatury do systemów wentylacyjnych.

Dane techniczne

Zakres pomiarowy	-40÷250°C
Element przetwarzający	opornik platynowy Pt100 ⁽¹⁾ opornik platynowy Pt500 opornik platynowy Pt1000 termoelement Fe-CuNi (J) termoelement NiCr-NiAl (K) termoelement Cu-CuNi (T)
Klasa elementu przetwarzającego	2 (B) ⁽²⁾
Rodzaj spoiny pomiarowej termoelementu	izolowana ⁽²⁾
Średnica osłony	3, 4, 5, 6 mm ⁽²⁾
Długość czujnika L	50÷1000 mm ⁽²⁾
Długość przewodu L_K	0,15÷2,5 m ⁽²⁾
Materiał osłony	stal 1H18N9T

⁽¹⁾ na życzenie Ni100, Ni1000
⁽²⁾ inne parametry na życzenie

Załączniki do produktu

TP-364 karta katalogowa

{"element-przetwarzajacy":{"type":"translate","separator":"-","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"opornik-platynowy-pt500":{"value":"Pt500","input":"0"},"opornik-platynowy-pt1000":{"value":"Pt1000","input":"0"},"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"},"termoelement-t-cu-cuni":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-czujnika-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"3":{"value":"","input":"0"},"4":{"value":"","input":"0"},"5":{"value":"","input":"0"},"6":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"500":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"05":{"value":"","input":"0"},"10":{"value":"","input":"0"},"15":{"value":"","input":"0"},"20":{"value":"","input":"0"},"25":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"opcje-przewod":{"type":"translate","separator":" ","multiple":"0","translations":{"wykonanie-standardowe-teflon-tmax-260c":{"value":"-","input":"0"},"pvc-tmax-80c":{"value":"(PVC)","input":"0"},"silikon-tmax-180c":{"value":"(silikon)","input":"0"},"wlokno-szklane-tmax-400c":{"value":"(szkło)","input":"0"},"wlokno-szklane-i-pancerz":{"value":"(szkło+pancerz)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wymagania-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"dodaj":{"value":"(","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"inne wymiary kołnierza mocującego, inna klasa, rezystor 3 lub 4-żyłowy","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

element przetwarzający

średnica czujnika [mm]

długość czujnika (L) [mm]

długość przewodu (Lk) [m]

opcje - przewód

wymagania dodatkowe ?

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
