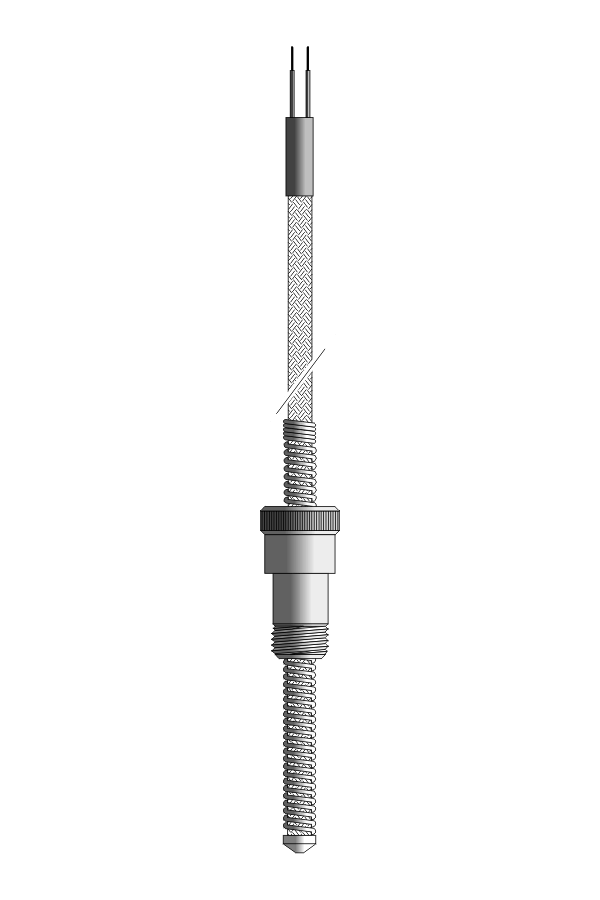

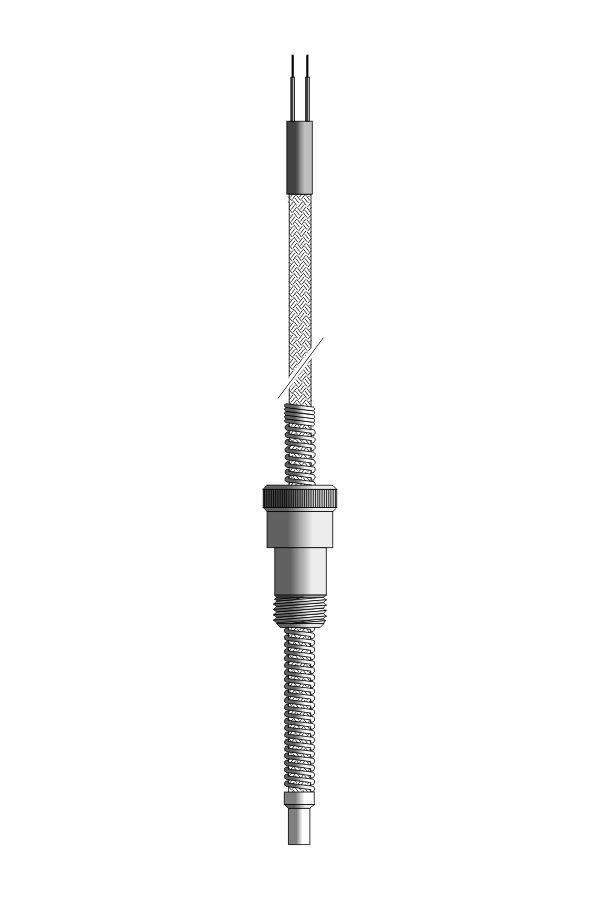

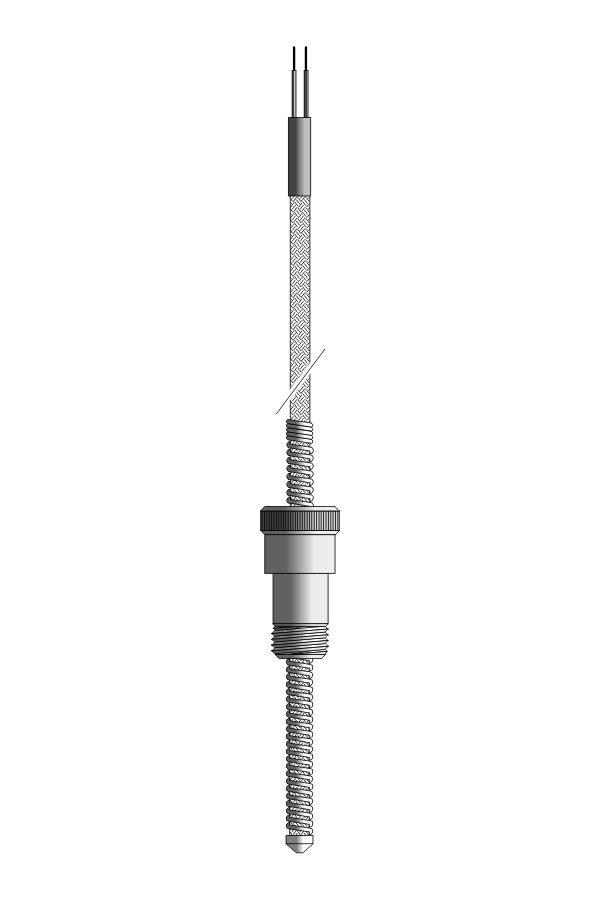

Czujnik temperatury TP-301_305

Opis produktu

Czujniki do pomiaru temperatury cylindrów wtryskarek, wytłaczarek oraz form wtryskowych.

Dane techniczne

Zakres pomiarowy	-40°C…+400°C
Element przetwarzający	opornik platynowy Pt100 ⁽¹⁾ termoelement Fe-CuNi (J) termoelement NiCr-NiAl (K)
Klasa elementu przetwarzającego	2 (B) ⁽²⁾
Rodzaj spoiny pomiarowej termoelementu	izolowana ⁽²⁾

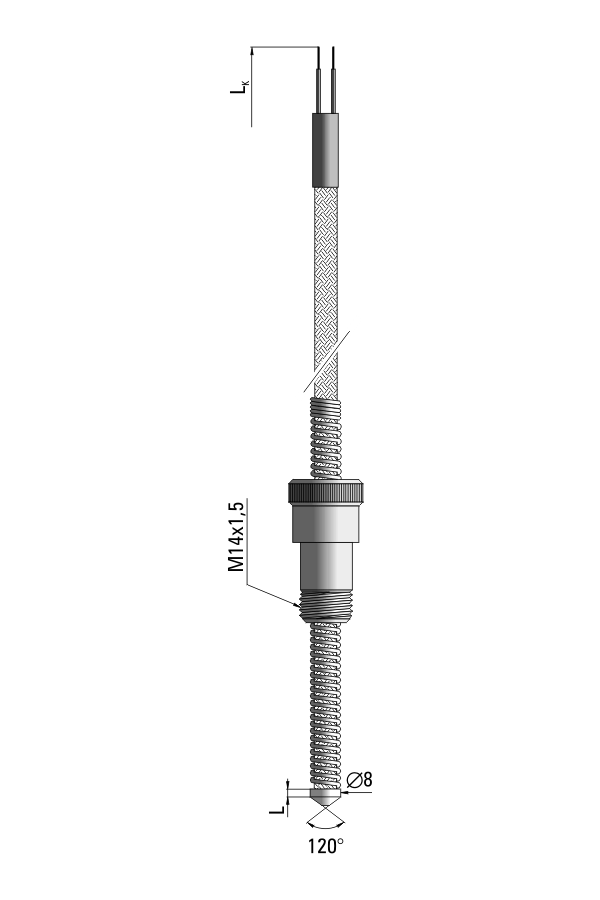

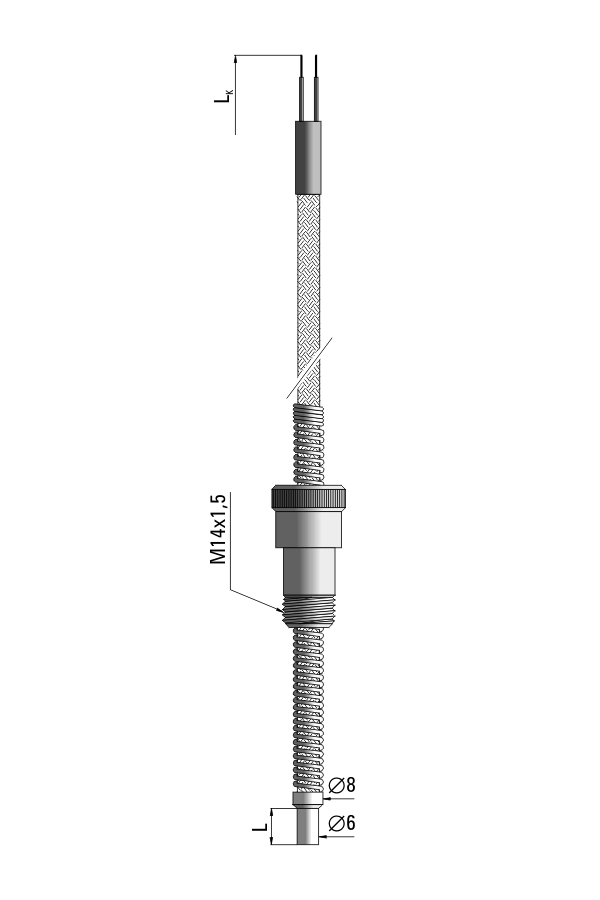

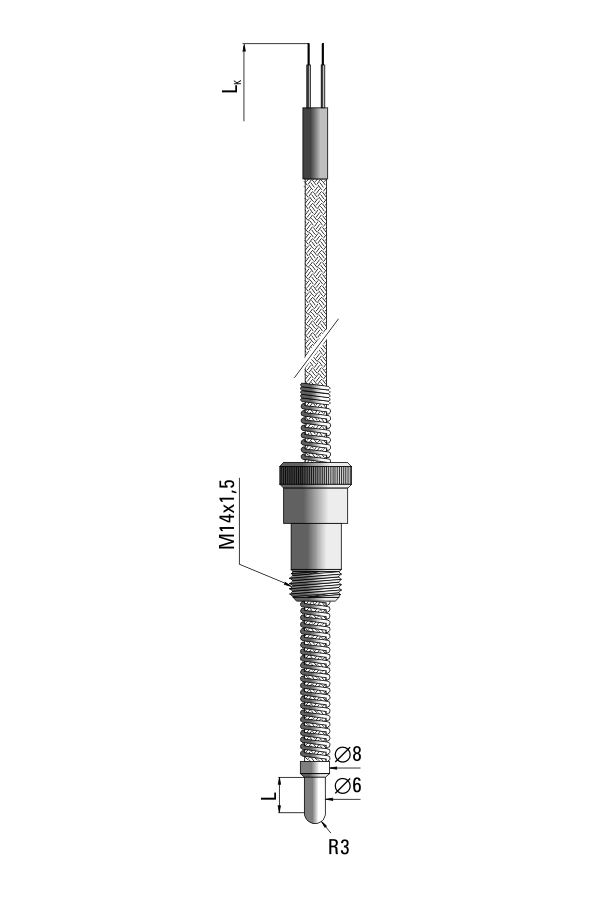

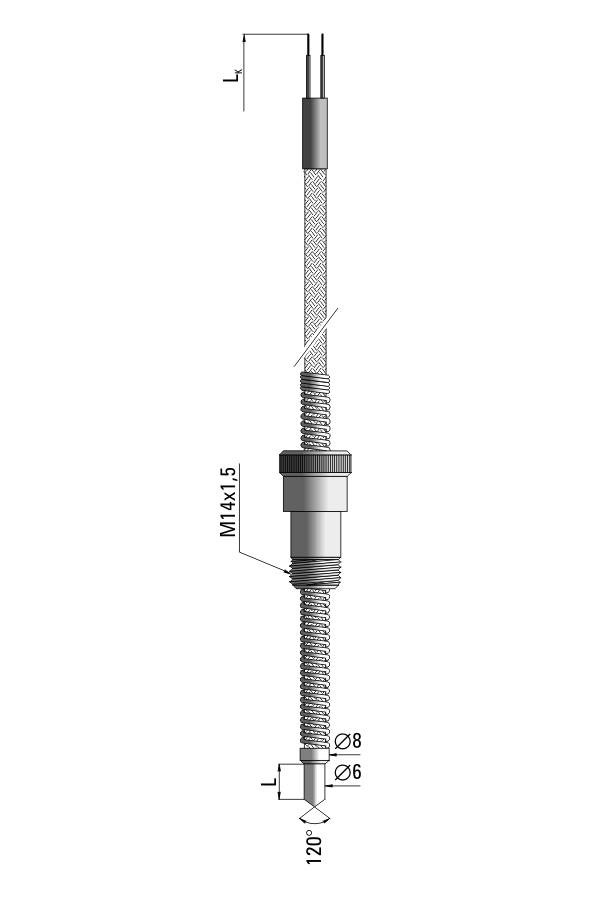

Długość czujnika L	1, 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm ⁽²⁾
Izolacja przewodu	włókno szklane i ekran stalowy ⁽³⁾
Długość przewodu L_K	1.5, 2.5 m ⁽²⁾

⁽¹⁾na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽²⁾inne parametry na życzenie
⁽³⁾na życzenie inne izolacje przewodu PCV, silikon, teflon, pancerz

Załączniki do produktu

TP-301_305 karta katalogowa

{"typ-czujnika":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-301":{"value":"301","input":"0"},"tp-302":{"value":"302","input":"0"},"tp-303":{"value":"303","input":"0"},"tp-304":{"value":"304","input":"0"},"tp-305":{"value":"305","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"1":{"value":"","input":"0"},"5":{"value":"","input":"0"},"10":{"value":"","input":"0"},"15":{"value":"","input":"0"},"20":{"value":"","input":"0"},"25":{"value":"","input":"0"},"30":{"value":"","input":"0"},"35":{"value":"","input":"0"},"40":{"value":"","input":"0"},"45":{"value":"","input":"0"},"50":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"15":{"value":"","input":"0"},"25":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"opcje-przewod":{"type":"translate","separator":" ","multiple":"0","translations":{"standard-wlokno-szklane-i-ekran-stalowy-tmax-400c":{"value":"-","input":"0"},"pvc-tmax-80c":{"value":"(PVC)","input":"0"},"silikon-tmax-180c":{"value":"(silikon)","input":"0"},"teflon-tmax-260c":{"value":"(teflon)","input":"0"},"pancerz":{"value":"(pancerz)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wymagania-dodatkowe":{"type":"translate","separator":"(","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"dodaj":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"inny gwint, inny kształt końcówki, inna średnica, inna długość króćca z gwintem, inna długość sprężyny","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

NAJPOPULARNIEJSZE WARIANTY

TP-301Pt100-10-1,5

129,00 zł
Stan: 18

TP-301J-10-1,5

119,00 zł
Stan: 10

Ceny netto

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ czujnika

element przetwarzający

długość czujnika (L) [mm]

długość przewodu (Lk) [m]

opcje - przewód

wymagania dodatkowe ?

Kod zamówieniowy:

Uwagi:
