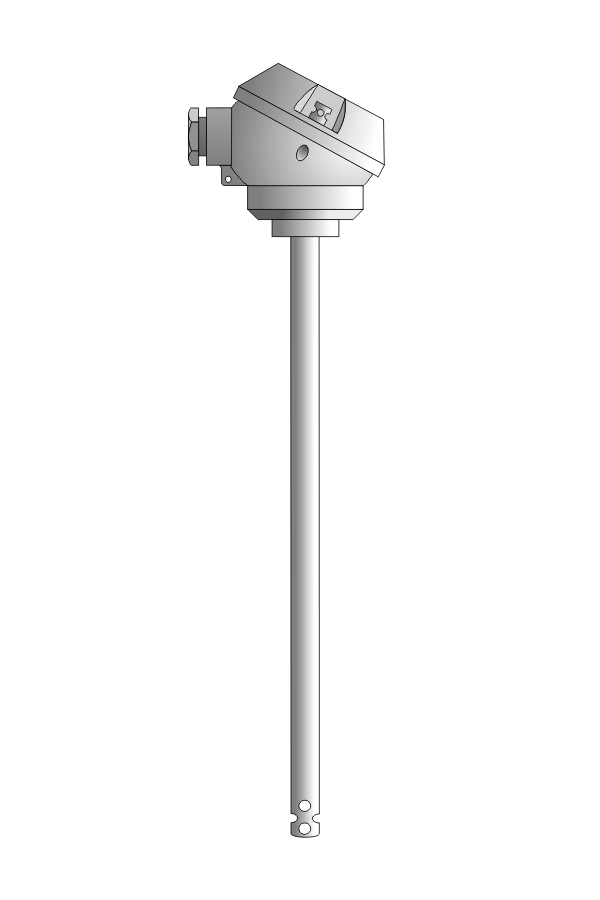

Czujnik temperatury TP-441_442

Czujnik temperatury TP-441_442

Czujnik temperatury TP-441_442

Opis produktu

Czujnik do pomiaru temperatury gazów wykonany z precyzyjnych termoelementów.

Dane techniczne

Zakres pomiarowy	-40÷400°C opornik platynowy Pt100
	-40÷400°C termoelement Cu-CuNi (T)
	-40÷400°C termoelement Fe-CuNi (J)
	-40÷600°C termoelement NiCr-NiAl (K)
Ilość elementów przetwarzających	1 lub 2
Klasa elementu przetwarzającego	1 (A)
Rodzaj spoiny termoelementu	izolowana

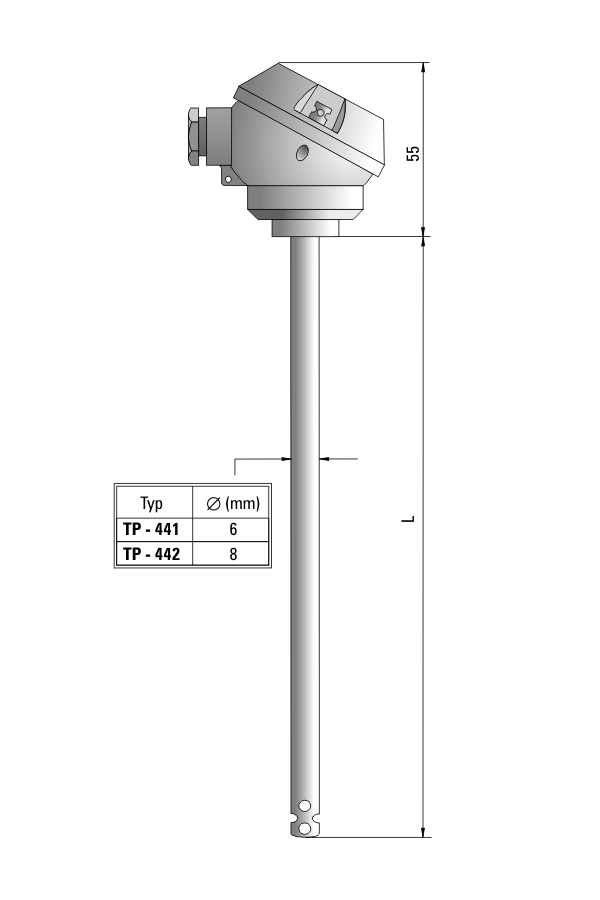

Średnica osłony	6, 8 mm
Materiał osłony	stal 1H18N9T
Długość czujnika (L)	50, 100, 200, 300, 400, 600, 800, 1000 mm
Typ głowicy	B lub MA (głowice czujnikowe)
Temperatura pracy głowicy	-40÷100°C
Wyposażenie dodatkowe	króciec przesuwny KP przetwornik temperatury przewód kompensacyjny

Załączniki do produktu

TP-441_442 karta katalogowa

{"typ-srednica-oslony-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-441-o-6mm":{"value":"441","input":"0"},"tp-442-o-8mm":{"value":"442","input":"0"},"tp-440-inna":{"value":"440","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"},"termoelement-t-cu-cuni":{"value":"T","input":"0"},"opornik-platynowy-pt500":{"value":"Pt500","input":"0"},"opornik-platynowy-pt1000":{"value":"Pt1000","input":"0"},"opornik-niklowy-ni100":{"value":"Ni100","input":"0"},"opornik-niklowy-ni1000":{"value":"Ni1000","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"50","to":"2000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"krociec-przesuwny-kp":{"value":"KP","input":"0"},"uchwyt-kolnierzowy-uk":{"value":"UK","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"gwint-krocca":{"type":"translate","separator":"","multiple":"0","translations":{"m8x1-dla-srednicy-czujnika-max-6mm":{"value":"M8x1","input":"0"},"m10x1-dla-srednicy-czujnika-max-8mm":{"value":"M10x1","input":"0"},"m12x15-dla-srednicy-czujnika-max-9mm":{"value":"M12x1,5","input":"0"},"m20x15":{"value":"M20x1,5","input":"0"},"g1-2":{"value":"G1\/2\\\u0022","input":"0"},"inny":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wyposazenie-dodatkowe","is_equal":"KP"}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"tak":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"glowica":{"type":"translate","separator":"","multiple":"0","translations":{"maa-mala":{"value":"-","input":"0"},"ba-standardowa":{"value":"(B)","input":"0"},"dnag-ip65":{"value":"(DNAG)","input":"0"},"beg-kwasoodporna":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"montaz-termorezystora":{"type":"translate","separator":"","multiple":"0","translations":{"3-przewodowo":{"value":"-","input":"0"},"4-przewodowo":{"value":"(4p)","input":"0"},"2-przewodowo":{"value":"(2p)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przetwornik-temperatury-ma-jktni100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tehm":{"value":"TEHM-27","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"-"},{"field":"element-przetwarzajacy","is_equal":"J,K,T,Ni100"}]}},"przetwornik-temperatury-ma-pt100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tehm":{"value":"TEHM-27","input":"0"},"4-20ma-tchm":{"value":"TCHM-21","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"-"},{"field":"element-przetwarzajacy","is_equal":"Pt100"}]}},"przetwornik-temperatury-ba-jk":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"(B),(DNAG),(BEG)"},{"field":"element-przetwarzajacy","is_equal":"J,K"}]}},"przetwornik-temperatury-ba-pt100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tchf":{"value":"TCHF-21","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"(B),(DNAG),(BEG)"},{"field":"element-przetwarzajacy","is_equal":"Pt100"}]}},"przetwornik-temperatury-ba-tni100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"(B),(DNAG),(BEG)"},{"field":"element-przetwarzajacy","is_equal":"T,Ni100"}]}},"zakres-przetwarzania-przetwornika-k":{"type":"translate","separator":"","multiple":"0","translations":{"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik-temperatury-ba-jk","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"K"}]}},"zakres-przetwarzania-przetwornika-j":{"type":"translate","separator":"","multiple":"0","translations":{"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik-temperatury-ba-jk","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"J"}]}},"zakres-przetwarzania-przetwornika-pt100":{"type":"translate","separator":"","multiple":"0","translations":{"50-50c":{"value":"10","input":"0"},"0-50c":{"value":"15","input":"0"},"0-100c":{"value":"20","input":"0"},"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH (TEHM).","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-ma-pt100","is_equal":"TCHM-21"},{"field":"przetwornik-temperatury-ba-pt100","is_equal":"TCHF-21,TCH-21,TCH-31"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"Pt100"},{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"K"},{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"J"},{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"T"},{"from":"-60","to":"150","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-ma-jktni100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ma-pt100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ba-jk","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-tni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"0","to":"800","field":"element-przetwarzajacy","value":"Pt100"},{"from":"0","to":"1200","field":"element-przetwarzajacy","value":"K"},{"from":"0","to":"1000","field":"element-przetwarzajacy","value":"J"},{"from":"0","to":"230","field":"element-przetwarzajacy","value":"T"},{"from":"0","to":"180","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-ma-jktni100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ma-pt100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ba-jk","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-tni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"inna-srednica-oslony":{"type":"translate","separator":"","multiple":"0","translations":{"10mm":{"value":"(10mm)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"typ-srednica-oslony-mm","is_equal":"440"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"-"}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

NAJPOPULARNIEJSZE WARIANTY

TP-442Pt100-1-400

245,00 zł
Stan: 10

Ceny netto

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ / średnica osłony [mm]

element przetwarzający

element pojedynczy/podwójny

długość czujnika L [mm]

wyposażenie dodatkowe

wykonanie pod przetwornik temperatury

głowica

montaż termorezystora

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
