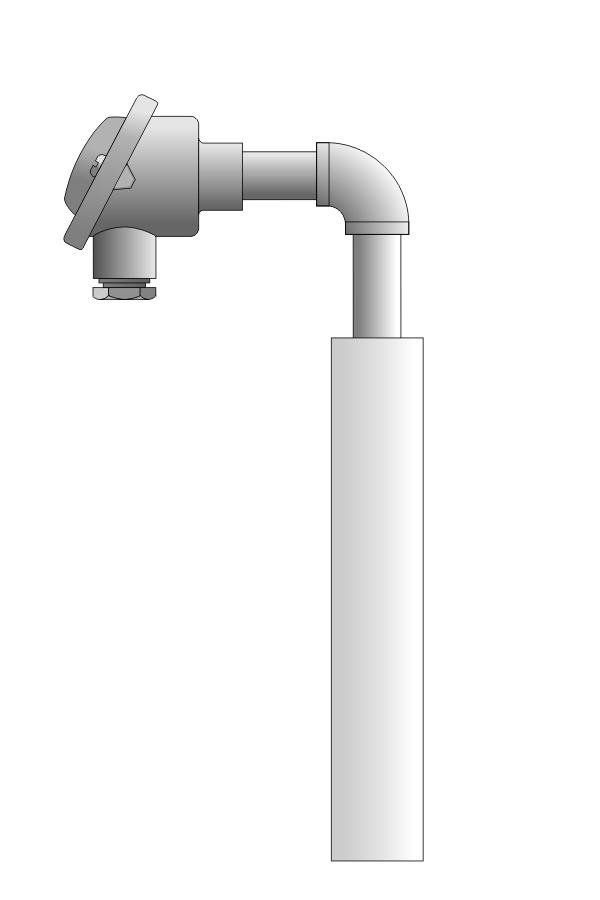

Czujnik_temperatury TP-941_944 (osłona z węglika krzemu)

Czujnik_temperatury TP-941_944 (osłona z węglika krzemu)

Czujnik_temperatury TP-941_944 (osłona z węglika krzemu)

Opis produktu

Czujnik do pomiaru temperatury ciekłych metali, z osłoną ceramiczną (węglik krzemu azotowany).

Sprawdź wszystkie nasze czujniki temperatury!

Dane techniczne

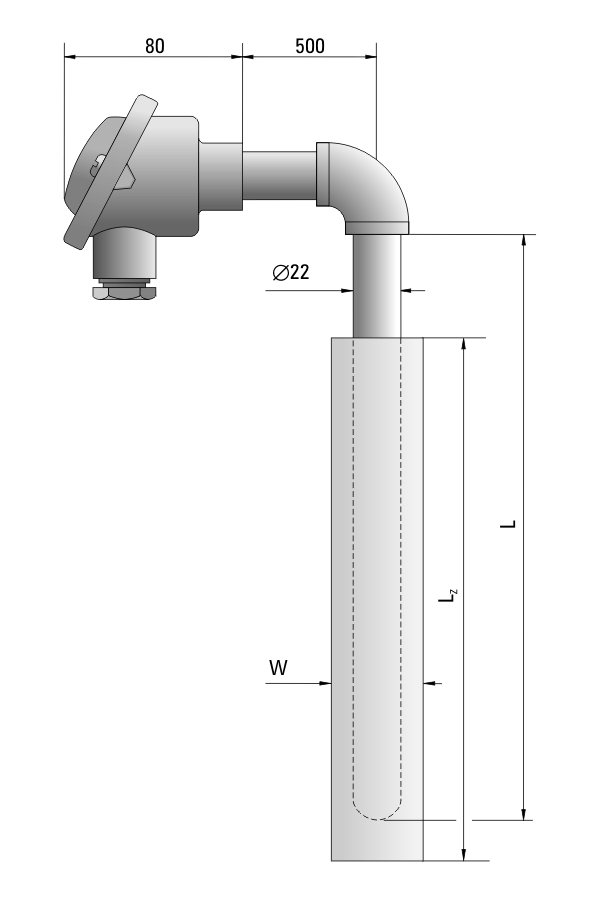

Wykonanie	Długość L czujnika [mm]	Długość Lz czujnika [mm]	Osłona ceramiczna (W)
TP-941	600	400	okrągła 45 mm
TP-942	800	600	półokrągła 52 mm
TP-943	1000	700	półokrągła 52 mm
TP-944	1200	950	półokrągła 57 mm

Zakres pomiarowy	0÷600°C termoelement Fe-CuNi (J)
Zakres pomiarowy	0÷900°C termoelement NiCr-NiAl (K)
Ilość elementów przetwarzających	1 lub 2
Klasa elementu przetwarzającego	2
Spoina pomiarowa termoelementu	izolowana
Materiał osłony ceramicznej	węglik krzemu azotowany
Typ głowicy	B, DA
Wyp. dodatkowe	przetwornik temperatury
Wyp. dodatkowe	przewód kompensacyjny

Załączniki do produktu

TP-941_944

{"typ-dlugosc-zanurzeniowa-lz-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-941-400":{"value":"941","input":"0"},"tp-942-600":{"value":"942","input":"0"},"tp-943-700":{"value":"943","input":"0"},"tp-944-950":{"value":"944","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"tak":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"klasa-termoelementu":{"type":"translate","separator":"-","multiple":"0","translations":{"klasa-2-standard":{"value":"-","input":"0"},"klasa-1":{"value":"(kl.1)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"(L=","multiple":"0","translations":{"standardowa":{"value":"-","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"400","to":"2000","field":"dlugosc-czujnika-l-mm","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"glowica":{"type":"translate","separator":"","multiple":"0","translations":{"ba-standard":{"value":"-","input":"0"},"daa":{"value":"(DAA)","input":"0"},"dnag-ip65":{"value":"(DNAG)","input":"0"},"beg-kwasoodporna":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przetwornik-temperatury-jk":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"}]}},"zakres-przetwarzania-przetwornika-k":{"type":"translate","separator":"","multiple":"0","translations":{"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"0-1000c":{"value":"65","input":"0"},"0-1200c":{"value":"70","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik-temperatury-jk","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"K"}]}},"zakres-przetwarzania-przetwornika-j":{"type":"translate","separator":"","multiple":"0","translations":{"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"J"},{"field":"przetwornik-temperatury-jk","is_equal":"TCH-21,TCH-31"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"-100","to":"300","field":"","value":""}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-jk","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"0","to":"1200","field":"element-przetwarzajacy","value":"K"},{"from":"0","to":"1000","field":"element-przetwarzajacy","value":"J"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-jk","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"-"}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ / długość zanurzeniowa (Lz) [mm]

element przetwarzający

element pojedynczy / podwójny

wykonanie pod przetwornik temperatury

klasa termoelementu

długość czujnika (L) [mm]

głowica

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego

WYKONANIA DOSTĘPNE NA MAGAZYNIE
