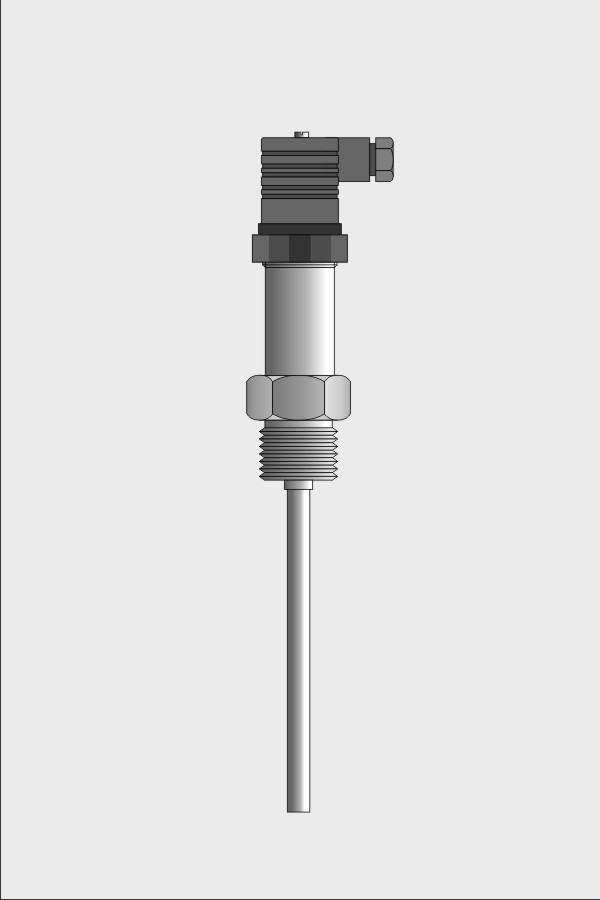

Czujnik temperatury z przetwornikiem TP-995

Opis produktu

Pomiar temperatury cieczy, gazów i ciał stałych w zbiornikach, kanałach i rurociągach przemysłowych. Czujnik temperatury zakończony dwoma złączami wsuwkowymi, płaskimi 6,3×0,8 mm do nasuwek konektorowych.

Dane techniczne

Czujnik temperatury
Zakres pomiarowy	-40÷200°C
Element przetwarzający	opornik platynowy Pt100
Montaż termorezystora	pojedynczy, 2-przewodowo
Klasa termorezystora	B
Materiał osłony i korpusu	stal 1H18N9T
Maksymalne ciśnienie robocze	1,6 MPa
Stopień ochrony złącza	IP65

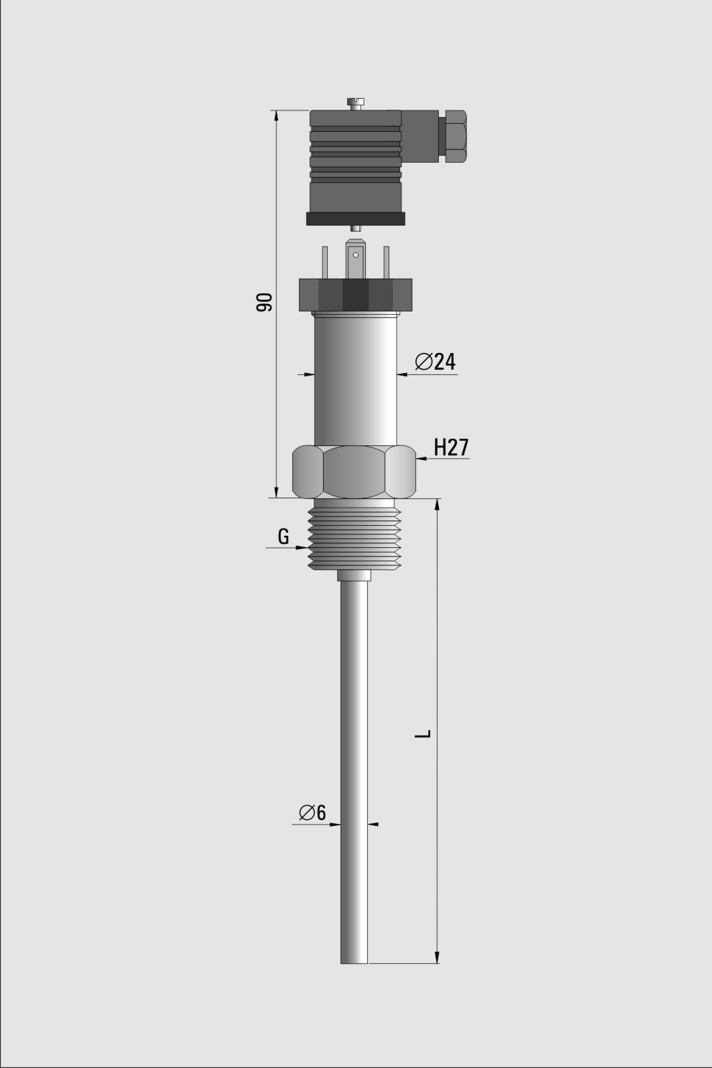

Wielkość gwintu (G)	M14x1.5, M20x1.5, G3/8″, G1/2″, bez gwintu
Wyposażenie dodatkowe	mufa do wspawania
Długość czujnika (L) [mm]	50÷1000 mm
Przetwornik temperatury
Zakres pomiarowy	-50÷200°C, programowalny
Błąd przetwarzania	0,2°C
Błąd temperaturowy	0,01°C/°C
Sygnał wyjściowy	4÷20 mA TP-995/A
Sygnał wyjściowy	0÷10V TP-995/V
Zasilanie	8÷36 VDC/24 mA TP-995/A (from current loop)
Zasilanie	8÷36 VDC/18 mA TP-995/V
Temperatura pracy złącza i korpusu	-40÷80°C

Załączniki do produktu

TP-995_karta katalogowa TP-995_M12_instrukcja obsługi

{"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"50","input":"0"},"85":{"value":"85","input":"0"},"100":{"value":"100","input":"0"},"150":{"value":"150","input":"0"},"200":{"value":"200","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"gwint-g":{"type":"translate","separator":"-","multiple":"0","translations":{"m14x15":{"value":"M14x1,5","input":"0"},"m20x15":{"value":"M20x1,5","input":"0"},"g3-8":{"value":"G3\/8","input":"0"},"g1-2":{"value":"G1\/2","input":"0"},"inny":{"value":"","input":"1"},"bez-gwintu":{"value":"0","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"sygnal-wyjsciowy":{"type":"translate","separator":"\/","multiple":"0","translations":{"4-20ma":{"value":"A","input":"0"},"0-10v":{"value":"V","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dol-zakresu-pomiarowego-c":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"(-50)","input":"0"},"20":{"value":"","input":"0"},"0":{"value":"","input":"0"},"inny":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"gora-zakresu-pomiarowego-c":{"type":"translate","separator":"-","multiple":"0","translations":{"200":{"value":"200","input":"0"},"100":{"value":"100","input":"0"},"50":{"value":"50","input":"0"},"20":{"value":"20","input":"0"},"0":{"value":"0","input":"0"},"inny":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"zlacze-przylaczeniowe":{"type":"translate","separator":"","multiple":"0","translations":{"zaworowe-standard":{"value":"-","input":"0"},"m12-opcja":{"value":"(M12)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"mufa-do-wspawania":{"value":"(mufa)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"klasa-termorezystora":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-b-standard":{"value":"-","input":"0"},"klasa-a-opcja":{"value":"(kl.A)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-oslony":{"type":"translate","separator":"(","multiple":"0","translations":{"o-6mm-standard":{"value":"-","input":"0"},"inna-mm":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

NAJPOPULARNIEJSZE WARIANTY

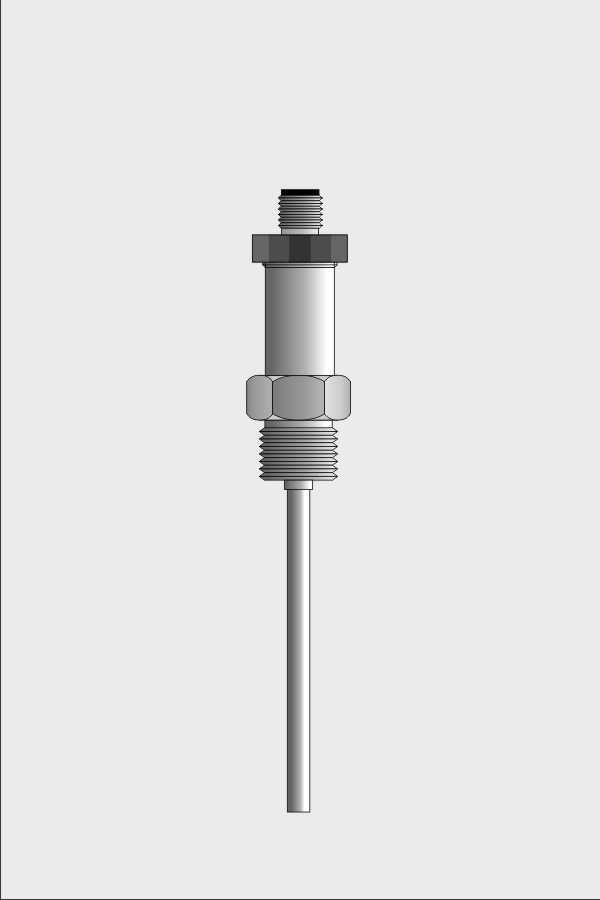

TP-995-100-G1/2″/A-0-120°C (M12)
