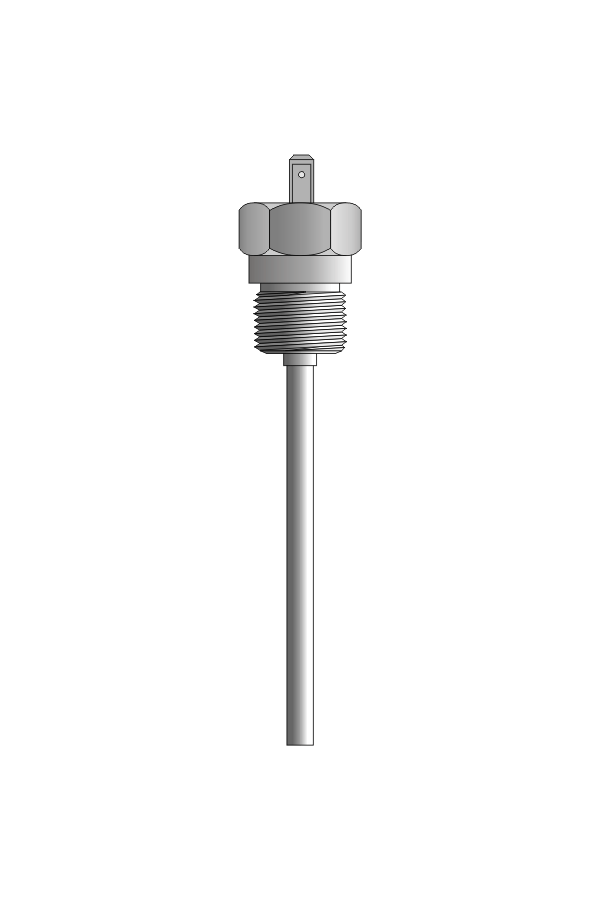

Czujnik temperatury TP-993

Opis produktu

Pomiar temperatury cieczy, gazów i ciał stałych w zbiornikach, kanałach i rurociągach przemysłowych. Czujnik temperatury zakończony dwoma złączami wsuwkowymi, płaskimi 6,3×0,8 mm do nasuwek konektorowych.

Dane techniczne

Zakres pomiarowy	-40÷150°C
Element przetwarzający	opornik platynowy Pt100, Pt500, Pt1000 ⁽¹⁾ – pojedynczy lub podwójny
Klasa termorezystora	B ⁽²⁾
Materiał osłony i korpusu	stal 1H18N9T
Maksymalne ciśnienie robocze	1,6 MPa
Stopień ochrony złącza	IP00
Gwint G	M12x1.5, M14x1.5, M20x1.5, G3/8″, G1/2″, bez gwintu ⁽³⁾
Wyposażenie dodatkowe	mufa do wspawania
Długość czujnika L [mm]	50, 85, 100, 150, 200 mm ⁽²⁾

⁽¹⁾ Na życzenie Ni100, Ni1000
⁽²⁾ Inne parametry na życzenie
⁽³⁾ Na życzenie inne gwinty calowe i metryczne

Załączniki do produktu

TP-991_993 karta katalogowa
