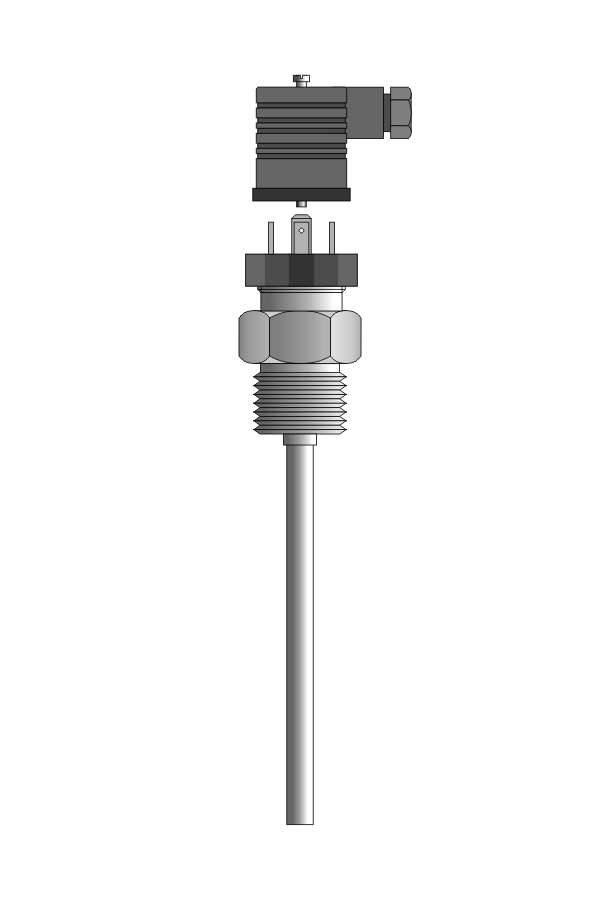

Czujnik temperatury TP-992

Opis produktu

Pomiar temperatury cieczy, gazów i ciał stałych w zbiornikach, kanałach i rurociągach przemysłowych. Czujnik temperatury posiada złącze przemysłowe.

Dane techniczne

Zakres pomiarowy	-40÷200°C
Element przetwarzający	opornik platynowy Pt100, Pt500, Pt1000 ⁽¹⁾ – pojedynczy lub podwójny
Klasa elementów przetwarzających	B ⁽²⁾

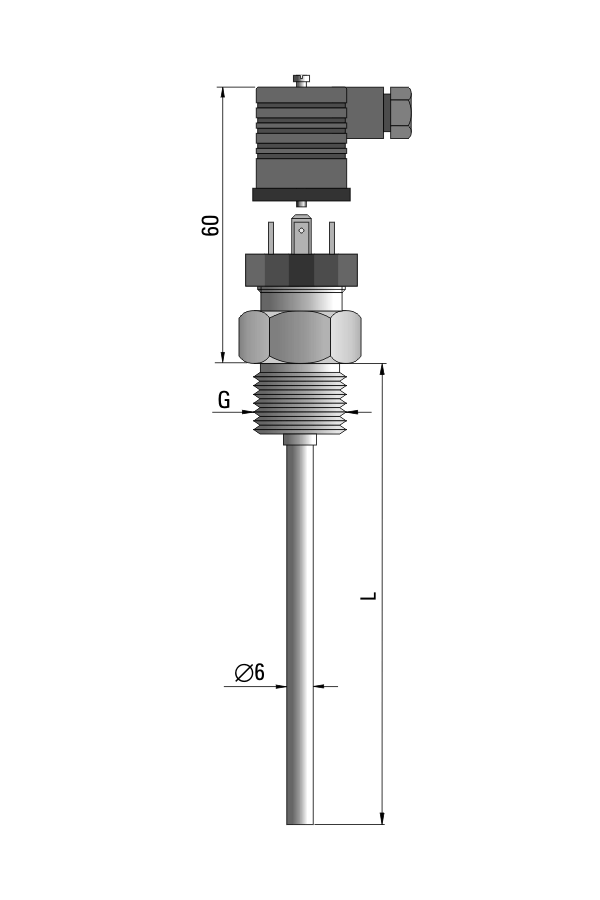

Długość czujnika L [mm]	50, 85, 100, 150, 200 mm ⁽²⁾
Materiał osłony i korpusu	stal 1H18N9T
Maksymalne ciśnienie robocze	1,6 MPa
Stopień ochrony złącza	IP65
Gwint G	M12x1.5, M14x1.5, M20x1.5, G3/8″, G1/2″, bez gwintu ⁽³⁾
Wyposażenie dodatkowe	mufa do wspawania

⁽¹⁾ Na życzenie Ni100, Ni1000
⁽²⁾ Inne parametry na życzenie
⁽³⁾ Na życzenie inne gwinty calowe i metryczne

Załączniki do produktu

TP-991_993 karta katalogowa

{"element-przetwarzajacy":{"type":"translate","separator":"-","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"opornik-platynowy-pt500":{"value":"Pt500","input":"0"},"opornik-platynowy-pt1000":{"value":"Pt1000","input":"0"},"opornik-niklowy-ni100":{"value":"Ni100","input":"0"},"opornik-niklowy-ni1000":{"value":"Ni1000","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"50","input":"0"},"85":{"value":"85","input":"0"},"100":{"value":"100","input":"0"},"150":{"value":"150","input":"0"},"200":{"value":"200","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"10","to":"1500","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"gwint-g":{"type":"translate","separator":"-","multiple":"0","translations":{"m12x15":{"value":"M12x1,5","input":"0"},"m14x15":{"value":"M14x1,5","input":"0"},"m20x15":{"value":"M20x1,5","input":"0"},"g3-8":{"value":"G3\/8\\\u0027\\\u0027","input":"0"},"g1-2":{"value":"G1\/2\\\u0027\\\u0027","input":"0"},"bez-gwintu":{"value":"0","input":"0"},"inny":{"value":"","input":"1"}},"validation":{"required":"1","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"klasa-montaz-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"standard-klasa-b-2-przewodowo":{"value":"-","input":"0"},"klasa-b-3-przewodowo":{"value":"(3p)","input":"0"},"klasa-b-4-przewodowo":{"value":"(4p)","input":"0"},"klasa-a-3-przewodowo":{"value":"(kl. A)(3p)","input":"0"},"klasa-a-4-przewodowo":{"value":"(kl. A)(4p)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"mufa-do-wspawania":{"value":"(mufa)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

NAJPOPULARNIEJSZE WARIANTY

TP-992Pt100-1-100-G1/2”

255,00 zł
Stan: 10

Ceny netto

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

element przetwarzający

element pojedynczy/podwójny

długość czujnika (L) [mm]

gwint (G)

klasa / montaż termoelementu

wyposażenie dodatkowe

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
