Czujnik temperatury TP-981_984 (instalacje CO)

Czujnik temperatury TP-981_984 (instalacje CO)

Czujnik temperatury TP-981_984 (instalacje CO)

Opis produktu

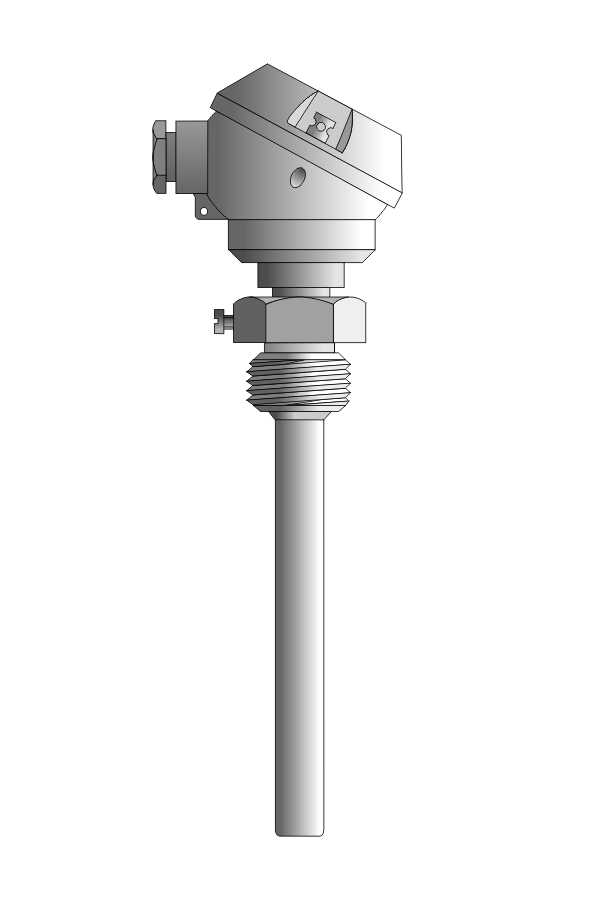

Czujnik do pomiaru temperatury w rurociągach lub instalacjach ciśnieniowych CO.

Dane techniczne

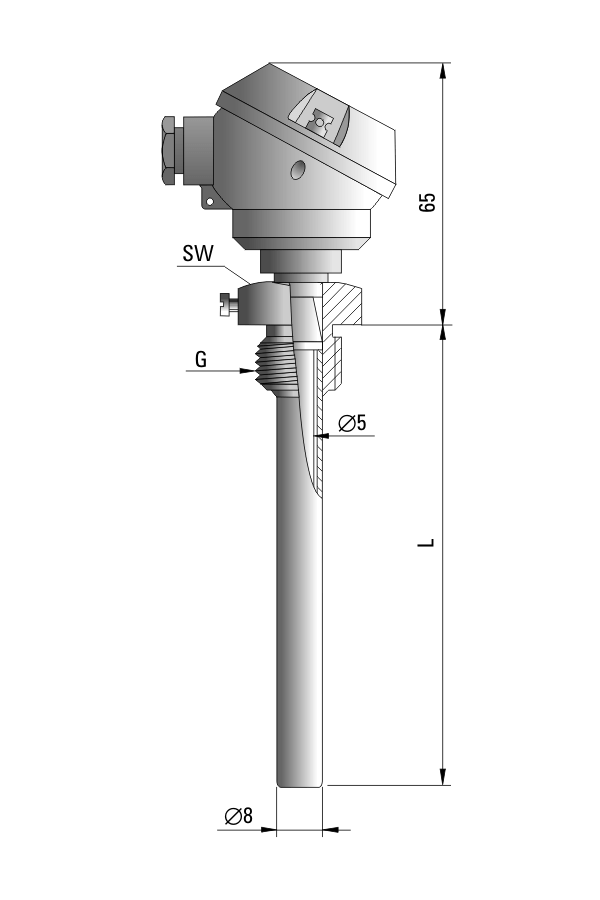

typ	przyłącze procesowe G ⁽⁴⁾	uchwyt SW
TP-981	G1/2″	6kt24
TP-982	G3/8″	6kt19
TP-983	G1/4″	6kt17
TP-984	do wspawania Ø22

Zakres pomiarowy	-40÷150°C
Element przetwarzający	termorezystor platynowy Pt100 ⁽¹⁾ – pojedynczy lub podwójny
Montaż	2, 3, 4 przewodowy
Klasa elementu przetwarzającego	B ⁽²⁾
Montaż termorezystora	2, 3 lub 4 przewodowy
Materiał osłony	stal 1H18N9T
Długość czujnika (L)	50, 85, 100, 150 lub 200 mm
Maksymalne ciśnienie robocze	1,6 MPa
Typ głowicy	MA lub B ⁽³⁾
Wyposażenie dodatkowe	mufa do wspawania
Wyposażenie dodatkowe	przetwornik temperatury T

⁽¹⁾ na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽²⁾ inne parametry na życzenie
⁽³⁾ na życzenie głowica z IP65 lub kwasoodporna
⁽⁴⁾ na życzenie inne gwinty calowe i metryczne

Załączniki do produktu

TP-981_984 karta katalogowa

{"typ-rodzaj-gwintu":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-981-g1-2":{"value":"981","input":"0"},"tp-982-g3-8":{"value":"982","input":"0"},"tp-983-g1-4":{"value":"983","input":"0"},"tp-984-%e2%8c%8022-do-wspawania":{"value":"984","input":"0"},"tp-980-inny":{"value":"980","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"-","input":"0"},"opornik-platynowy-pt500":{"value":"Pt500","input":"0"},"opornik-platynowy-pt1000":{"value":"Pt1000","input":"0"},"opornik-niklowy-ni100":{"value":"Ni100","input":"0"},"opornik-niklowy-ni1000":{"value":"Ni1000","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"","input":"0"},"85":{"value":"","input":"0"},"100":{"value":"","input":"0"},"150":{"value":"","input":"0"},"200":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"20","to":"2000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"tak":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"mufa-do-wspawania":{"value":"(mufa)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"glowica":{"type":"translate","separator":"","multiple":"0","translations":{"maa-mala":{"value":"-","input":"0"},"ba-standardowa":{"value":"(B)","input":"0"},"dnag-ip65":{"value":"(DNAG)","input":"0"},"beg-kwasoodporna":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"inny-gwint":{"type":"translate","separator":"(","multiple":"0","translations":{"wpisz-rodzaj-gwintu":{"value":"","input":"1"}},"validation":{"required":"1","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"typ-rodzaj-gwintu","is_equal":"980"}]}},"klasa-montaz-termorezystora":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-b-2-przewodowo":{"value":"-","input":"0"},"klasa-b-3-przewodowo":{"value":"(3p)","input":"0"},"klasa-b-4-przewodowo":{"value":"(4p)","input":"0"},"klasa-a-3-przewodowo":{"value":"(A3p)","input":"0"},"klasa-a-4-przewodowo":{"value":"(A4p)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przetwornik-temperatury-ma-pt100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tehm":{"value":"TEHM-27","input":"0"},"4-20ma-tchm":{"value":"TCHM-21","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"-"},{"field":"element-przetwarzajacy","is_equal":"-"}]}},"przetwornik-temperatury-ma-ni100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tehm":{"value":"TEHM-27","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"-"},{"field":"element-przetwarzajacy","is_equal":"Ni100"}]}},"przetwornik-temperatury-ba-pt100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tchf":{"value":"TCHF-21","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"(B),(DNAG),(BEG)"},{"field":"element-przetwarzajacy","is_equal":"-"}]}},"przetwornik-temperatury-ba-ni100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"(B),(DNAG),(BEG)"},{"field":"element-przetwarzajacy","is_equal":"Ni100"}]}},"zakres-przetwarzania-przetwornika-pt100":{"type":"translate","separator":"","multiple":"0","translations":{"50-50c":{"value":"10","input":"0"},"0-50c":{"value":"15","input":"0"},"0-100c":{"value":"20","input":"0"},"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-ma-pt100","is_equal":"TCHM-21"},{"field":"przetwornik-temperatury-ba-pt100","is_equal":"TCH-21,TCH-31,TCHF-21"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"-100","to":"100","field":"element-przetwarzajacy","value":"Pt100"},{"from":"-60","to":"100","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-ma-pt100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ma-ni100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ba-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-ni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"0","to":"800","field":"element-przetwarzajacy","value":"Pt100"},{"from":"0","to":"150","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-ma-pt100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ma-ni100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ba-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-ni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}}}

NAJPOPULARNIEJSZE WARIANTY

TP-981-1-100

255,00 zł
Stan: 7

TP-981-1-100-T; TCHM-2120
(Czujnik z przetwornikiem 4…20mA/0…+100°C)

470,00 zł
Stan: 0

Ceny netto

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ (rodzaj gwintu)

element przetwarzający

element pojedynczy / podwójny

długość czujnika (L) [mm]

wykonanie pod przetwornik temperatury

wyposażenie dodatkowe

głowica

klasa / montaż termorezystora

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego

WYKONANIA DOSTĘPNE NA MAGAZYNIE
