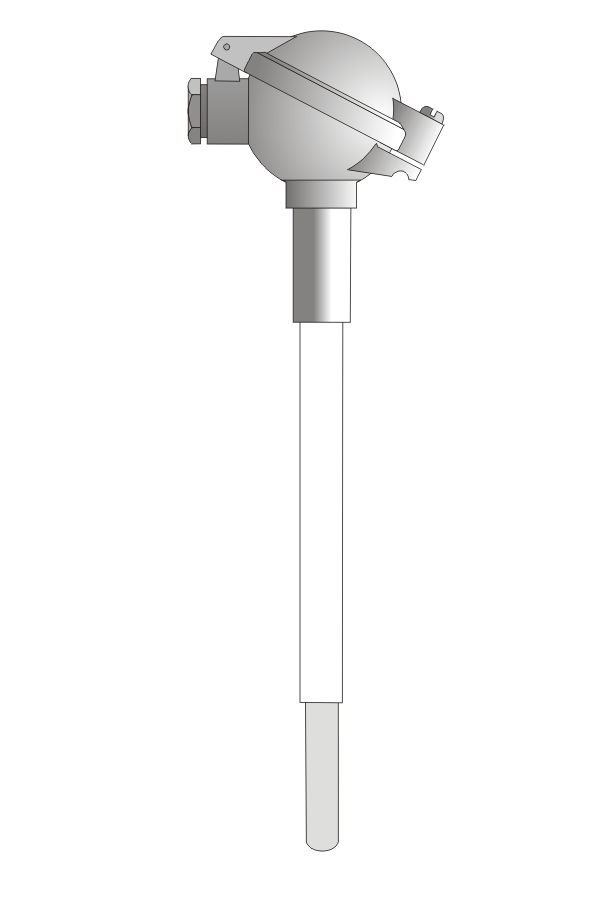

Czujnik temperatury TP-819 (ceramiczny)

Czujnik temperatury TP-819 (ceramiczny)

Opis produktu

Czujnik do pomiaru wysokich temperatur w trudnych warunkach przemysłowych. Przeznaczone głównie do pomiaru temperatury w piecach do obróbki termicznej szkła. Czujnik TP-819 posiada tuleję platynorodową osadzoną w osłonie ceramicznej.

Sprawdź również inne czujniki temperatury z oferty Czaki!

Dane techniczne

Zakres pomiarowy	600÷1600°C
Rodzaj termoelementu	S: PtRh90/10%-Pt, 0,5mm
Rodzaj termoelementu	B: PtRh70/30%-PtRh94/6%, 0,5mm
Klasa termoelementu	2
Elementy przetwarzające	pojedyncza termopara S
	pojedyncza termopara B
	podwójna termopara S
	podwójna termopara B
Długość czujnika (L)	400÷1400 mm
Osłona ceramiczna	ceramika C799 10mm
Długość osłony ceramicznej (A)	100÷300 mm
Materiał nośnika	stal 1H18N9T
Typ głowicy	NA
Temperatura pracy głowicy	-40÷100°C
Wyposażenie dodatkowe	przetwornik temperatury
Wyposażenie dodatkowe	przewód kompensacyjny

Załączniki do produktu

TP-817_819 karta katalogowa

{"element-przetwarzajacy":{"type":"translate","separator":"-","multiple":"0","translations":{"termoelement-s-ptrh90-10-pt":{"value":"S","input":"0"},"termoelement-b-ptrh70-30-ptrh94-6":{"value":"B","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny-potrojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"},"potrojny":{"value":"3","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-oslony-ceramicznej-a-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"100":{"value":"100","input":"0"},"200":{"value":"200","input":"0"},"300":{"value":"300","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"50","to":"600","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"400":{"value":"400","input":"0"},"500":{"value":"500","input":"0"},"600":{"value":"600","input":"0"},"800":{"value":"800","input":"0"},"1000":{"value":"1000","input":"0"},"1400":{"value":"1400","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"150","to":"2000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"tak":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"glowica":{"type":"translate","separator":"-","multiple":"0","translations":{"dana-standard":{"value":"-","input":"0"},"dnag-ip65":{"value":"(DANAG)","input":"0"},"beg-kwasoodporna":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przetwornik":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"}]}},"zakres-przetwarzania-przetwornika":{"type":"translate","separator":"","multiple":"0","translations":{"300-1400c":{"value":"75","input":"0"},"300-1600c":{"value":"80","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik","is_equal":"TCH-21,TCH-31"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"0","to":"1000","field":"element-przetwarzajacy","value":"S"},{"from":"400","to":"1000","field":"element-przetwarzajacy","value":"B"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"800","to":"1600","field":"element-przetwarzajacy","value":"S"},{"from":"800","to":"1800","field":"element-przetwarzajacy","value":"B"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV+ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon+ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"-"}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

element przetwarzający

element pojedynczy / podwójny / potrójny

długość osłony ceramicznej (A) [mm]

długość czujnika (L) [mm]

wykonanie pod przetwornik temperatury

głowica

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego

WYKONANIA DOSTĘPNE NA MAGAZYNIE
