Czujnik temperatury TP-801_805 (ceramiczny)

Czujnik temperatury TP-801_805 (ceramiczny)

Czujnik temperatury TP-801_805 (ceramiczny)

Opis produktu

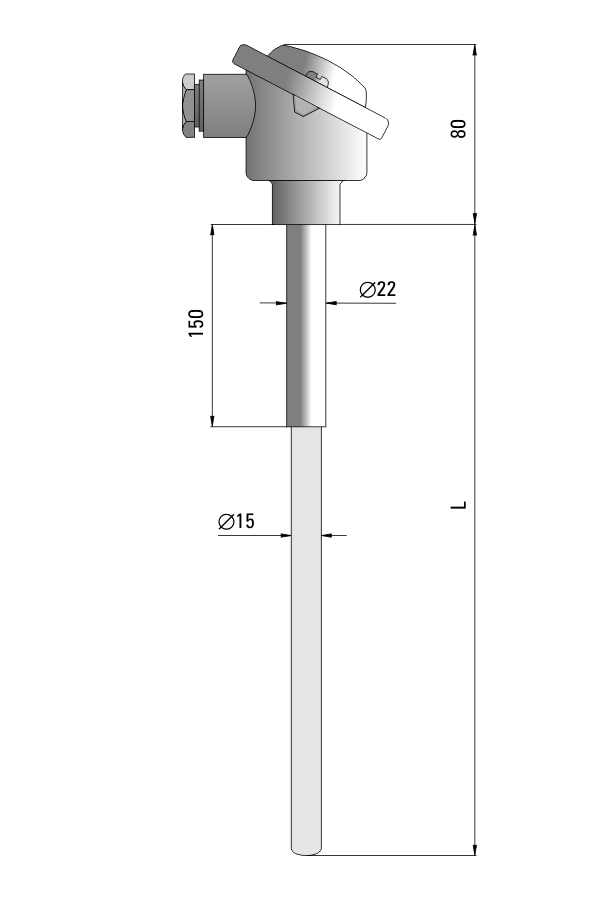

Czujnik z żaroodporną osłoną ceramiczną do pomiaru wysokich temperatur.

Sprawdź wszystkie nasze czujniki temperatury!

Dane techniczne

Typ	Temp.max	Osłona	Termoelement
TP-801	1200°C	ceramika C610	NiCr-NiAl (K)
TP-802	1300°C	ceramika C610	PtRh90/10%-Pt (S)
TP-803	1400°C	ceramika C610	PtRh90/10%-Pt (S)
TP-804	1500°C	ceramika C799	PtRh90/10%-Pt (S)
TP-805	1600°C	ceramika C799	PtRh70/30%-PtRh94/6% (B)

Klasa termoelementów	1
Ilość elementów przetwarzających	1, 2

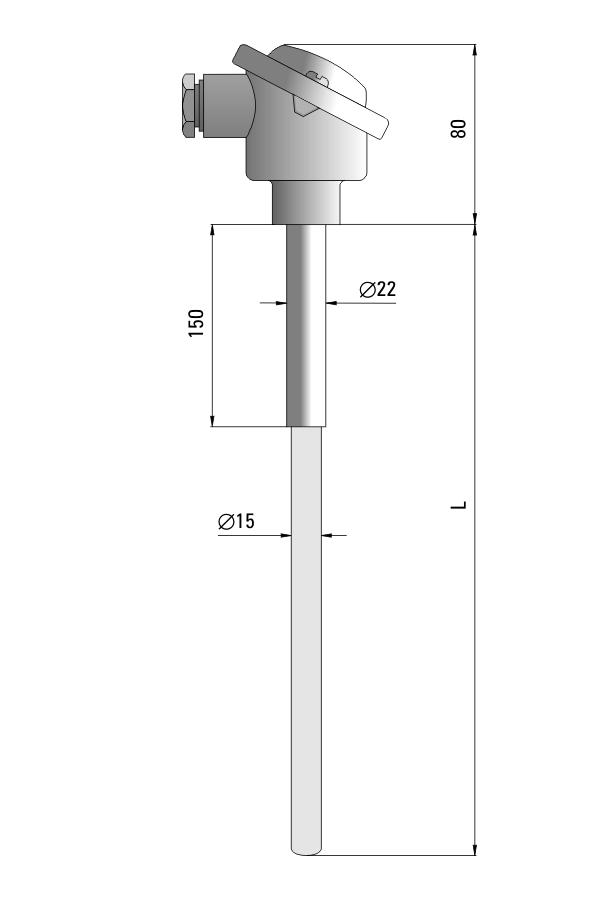

Długość czujnika (L)	300, 500, 700, 1000, 1400 mm
Średnica osłony ceramicznej	15 mm
Średnica nośnika	22 mm
Typ głowicy	B lub NA
Temperatura pracy głowicy	-40÷100°C
Wyposażenie dodatkowe	uchwyt zaciskowy UZ-22
	przetwornik temperatury
	przewód kompensacyjny

Załączniki do produktu

TP-801_805 karta katalogowa

{"wykonanie-temp-max":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-801-1200c":{"value":"801","input":"0"},"tp-802-1300c":{"value":"802","input":"0"},"tp-803-1400c":{"value":"803","input":"0"},"tp-804-1500c":{"value":"804","input":"0"},"tp-805-1600c":{"value":"805","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy-kn":{"type":"translate","separator":"","multiple":"0","translations":{"termoelement-k-nicr-nial":{"value":"-","input":"0"},"termoelement-n-nicrsi-nisi":{"value":"N","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-temp-max","is_equal":"801"}]}},"element-przetwarzajacy-sr":{"type":"translate","separator":"","multiple":"0","translations":{"termoelement-s-ptrh90-10-pt":{"value":"-","input":"0"},"termoelement-r-ptrh87-13-pt":{"value":"R","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-temp-max","is_equal":"802,803,804"}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"300":{"value":"","input":"0"},"500":{"value":"","input":"0"},"700":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"1400":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"200","to":"2500","field":"","value":""}]},"hint":"Długości większe jak 1400mm realizowane są poprzez  równoczesne wydłużenie nosnika stalowego.","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"uchwyt-zaciskowy-uz":{"value":"UZ-22","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"tak":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"glowica":{"type":"translate","separator":"","multiple":"0","translations":{"ba-standard":{"value":"-","input":"0"},"dnag-ip65":{"value":"(DNAG)","input":"0"},"beg-kwasoodporna":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przetwornik-temperatury":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"}]}},"zakres-przetwarzania-przetwornika-kn":{"type":"translate","separator":"","multiple":"0","translations":{"0-800c":{"value":"60","input":"0"},"0-1000c":{"value":"65","input":"0"},"0-1200c":{"value":"70","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TCH-21,TCH-31"},{"field":"wykonanie-temp-max","is_equal":"801"}]}},"zakres-przetwarzania-przetwornika-srb":{"type":"translate","separator":"","multiple":"0","translations":{"300-1400c":{"value":"","input":"0"},"300-1600c":{"value":"","input":"0"},"inny":{"value":"","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TCH-21,TCH-31"},{"field":"wykonanie-temp-max","is_equal":"802,803,804,805"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"-100","to":"1000","field":"wykonanie-temp-max","value":"801"},{"from":"-100","to":"1000","field":"wykonanie-temp-max","value":"802"},{"from":"0","to":"1000","field":"wykonanie-temp-max","value":"803"},{"from":"0","to":"1000","field":"wykonanie-temp-max","value":"804"},{"from":"400","to":"1000","field":"wykonanie-temp-max","value":"805"}]},"hint":"","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"800","to":"1300","field":"wykonanie-temp-max","value":"801"},{"from":"800","to":"1600","field":"wykonanie-temp-max","value":"802"},{"from":"800","to":"1600","field":"wykonanie-temp-max","value":"803"},{"from":"800","to":"1600","field":"wykonanie-temp-max","value":"804"},{"from":"800","to":"1800","field":"wykonanie-temp-max","value":"805"}]},"hint":"","display":{"always":"-1","when":[{"field":"przetwornik-temperatury","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"-"}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

wykonanie / temp. max.

element pojedynczy / podwójny

długość czujnika (L) [mm] ?

wyposażenie dodatkowe

wykonanie pod przetwornik temperatury

głowica

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego

WYKONANIA DOSTĘPNE NA MAGAZYNIE
