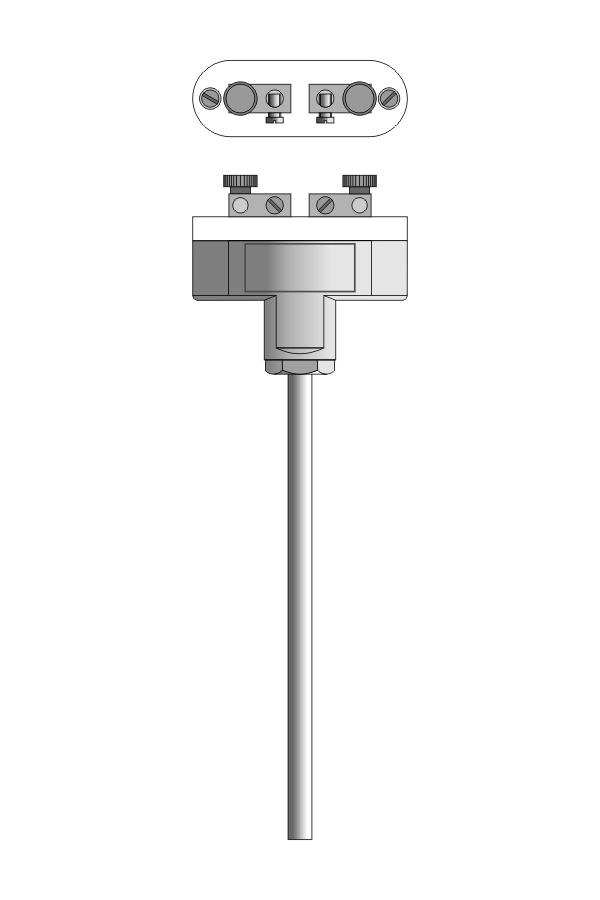

Czujnik temperatury TP-692 (żaroodporny)

Opis produktu

Czujnik temperatury z osłoną żaroodporną.

Sprawdź wszystkie nasze czujniki temperatury!

Dane techniczne

Zakres pomiarowy	-40÷700°C termoelement Fe-CuNi (J)
Zakres pomiarowy	-40÷1100°C termoelement NiCr-NiAl (K)
Elementy przetwarzające	pojedyncza termopara J
	pojedyncza termopara K
	podwójna termopara J
	podwójna termopara K:
Klasa elementu przetwarzającego	2
Rodzaj spoiny termoelementu	izolowana

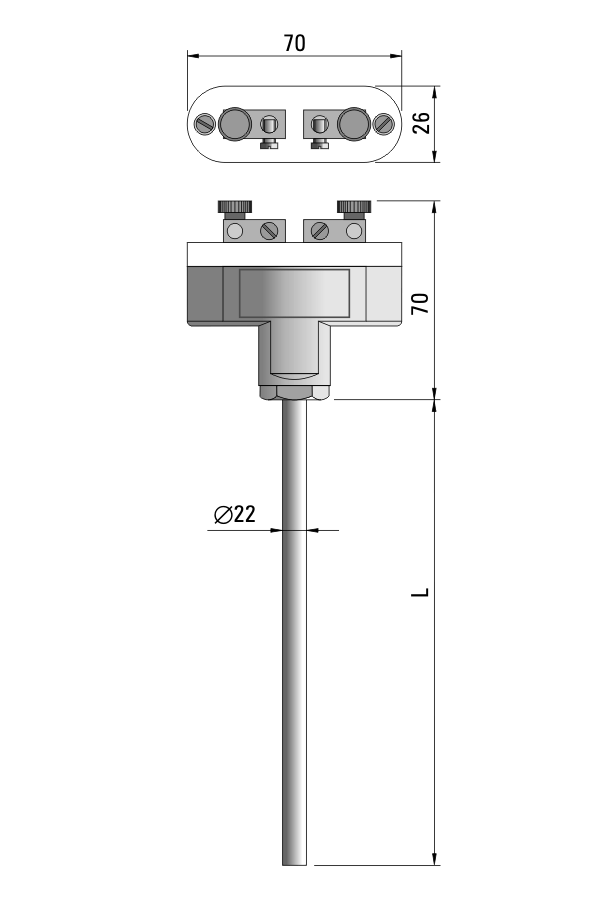

Średnica osłony	22 mm
Długość czujnika	400, 600, 800, 1000, 1200, 1600, 2000 mm
Materiał osłony	stal żaroodporna 1.4749 (H25T)
Typ głowicy	DA, owalna, otwarta
Temperatura pracy głowicy	-40÷100°C
Wyposażenie dodatkowe	uchwyt zaciskowy UZ
	przetwornik temperatury
	przewód kompensacyjny

Załączniki do produktu

TP-691_692 karta katalogowa

{"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"400":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"1200":{"value":"","input":"0"},"1600":{"value":"","input":"0"},"2000":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"200","to":"2000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"uchwyt-zaciskowy-uz":{"value":"UZ-22","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"inna-srednica-czujnika","is_equal":"-"}]}},"klasa-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-2-standard":{"value":"-","input":"0"},"klasa-1":{"value":"(kl.1)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"spoina-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"izolowana-standard":{"value":"-","input":"0"},"uziemiona":{"value":"(a)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"inna-srednica-czujnika":{"type":"translate","separator":"","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"o-20mm":{"value":"(fi20)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

element przetwarzający

długość czujnika [mm]

klasa termoelementu

spoina termoelementu

inna średnica czujnika

przewód kompensacyjny - izolacja

Kod zamówieniowy:

Uwagi:
