Czujnik temperatury TP-661_662 (wymienny wkład pomiarowy)

Czujnik temperatury TP-661_662 (wymienny wkład pomiarowy)

Czujnik temperatury TP-661_662 (wymienny wkład pomiarowy)

Opis produktu

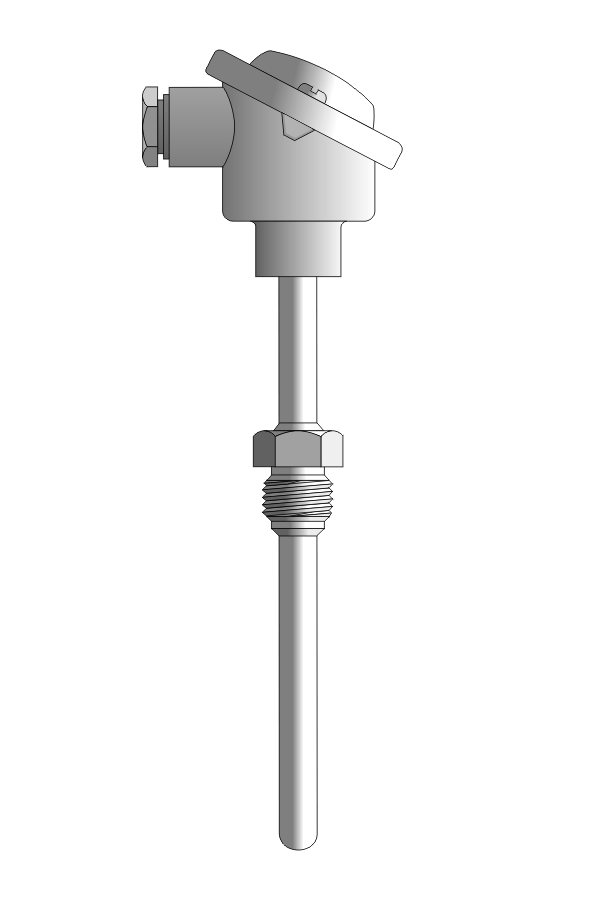

Czujnik głowicowy, z wymiennym wkładem pomiarowym, z przyłączem procesowym M24x1.5. Stosowany do pomiarów temperatury w rurociągach i zbiornikach ciśnieniowych.

Dane techniczne

Zakres pomiarowy	-40÷550°C opornik platynowy Pt100
	-40÷400°C termoelement Cu-CuNi (T)
	-40÷600°C termoelement Fe-CuNi (J)
	-40÷900°C termoelement NiCr-NiAl (K)
Elementy przetwarzające	pojedynczy Pt100, 2-przewodowo
	pojedynczy Pt100, 3-przewodowo
	pojedynczy Pt100, 4-przewodowo
	podwójny Pt100, 2-przewodowo
	podwójny Pt100, 3-przewodowo:
	pojedyncza termopara J
	pojedyncza termopara K
	pojedyncza termopara T
	podwójna termopara J
	podwójna termopara K
	podwójna termopara T
Klasa czujnika	Pt100: B
Klasa czujnika	termopara T, J, K: 2
Rodzaj spoiny	izolowana

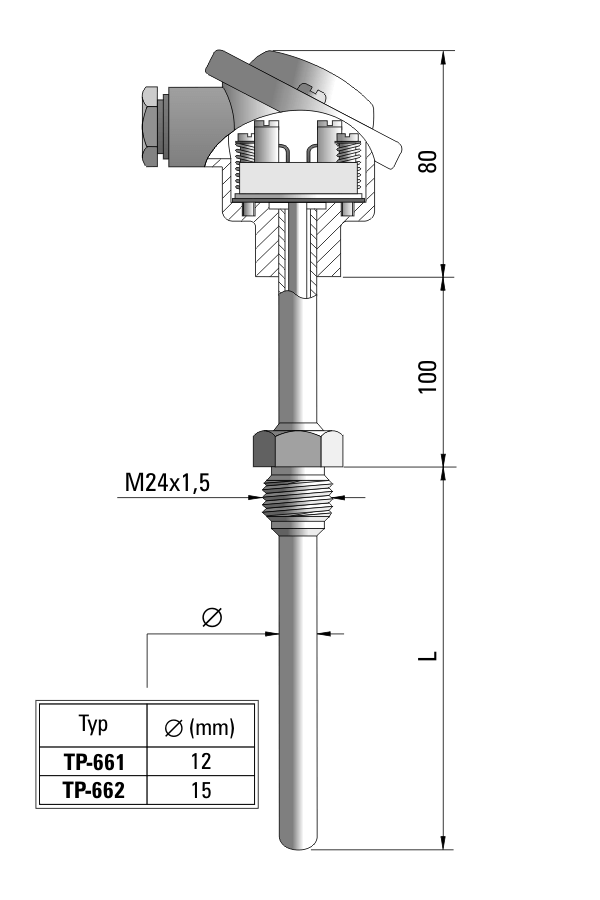

Długość czujnika (L)	100, 200, 300, 400, 600, 800, 1000 mm
Wkład pomiarowy	TP-702
Długość wkładu pomiarowego	L + 130 mm
Średnica osłony
TP-661	12 mm
TP-662	15 mm
Przyłącze procesowe	M24x1,5
Materiał osłony	stal 1H18N9T
Typ głowicy	B lub NA
Temperatura pracy głowicy	-40÷100°C
Wyposażenie dodatkowe	mufa do wspawania
	przetwornik temperatury
	przewód kompensacyjny

Załączniki do produktu

TP-661_662 karta katalogowa
