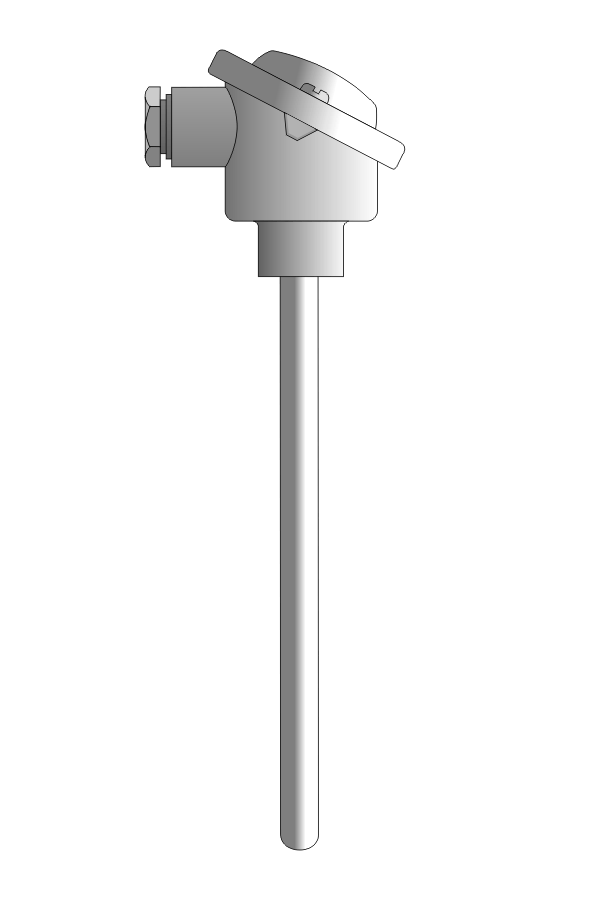

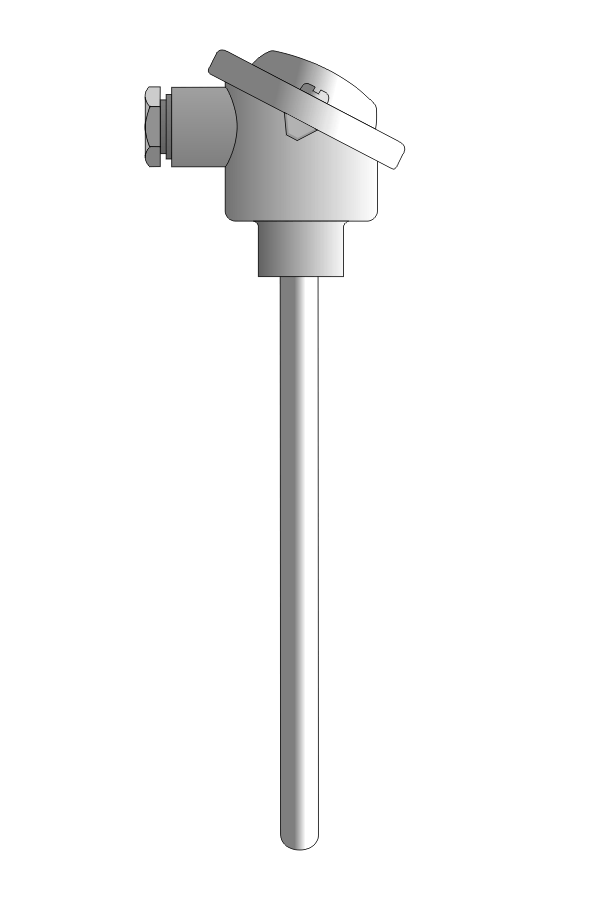

Czujnik temperatury TP-651_652 (wymienny wkład pomiarowy)

Czujnik temperatury TP-651_652 (wymienny wkład pomiarowy)

Czujnik temperatury TP-651_652 (wymienny wkład pomiarowy)

Opis produktu

Czujnik temperatury głowicowy, z wymiennym wkładem pomiarowym. Stosowany do pomiarów temperatury w rurociągach i zbiornikach ciśnieniowych.

Dane techniczne

Zakres pomiarowy	-40÷550°C opornik platynowy Pt100
	-40÷400°C termoelement Cu-CuNi (T)
	-40÷600°C termoelement Fe-CuNi (J)
	-40÷900°C termoelement NiCr-NiAl (K)
Elementy przetwarzające	pojedynczy Pt100, 2-przewodowo
	pojedynczy Pt100, 3-przewodowo
	pojedynczy Pt100, 4-przewodowo
	podwójny Pt100, 2-przewodowo
	podwójny Pt100, 3-przewodowo:
	pojedyncza termopara J
	pojedyncza termopara K
	pojedyncza termopara T
	podwójna termopara J
	podwójna termopara K:
	podwójna termopara T
Klasa czujnika	Pt100: B
Klasa czujnika	termopara T, J, K: 2
Rodzaj spoiny	izolowana

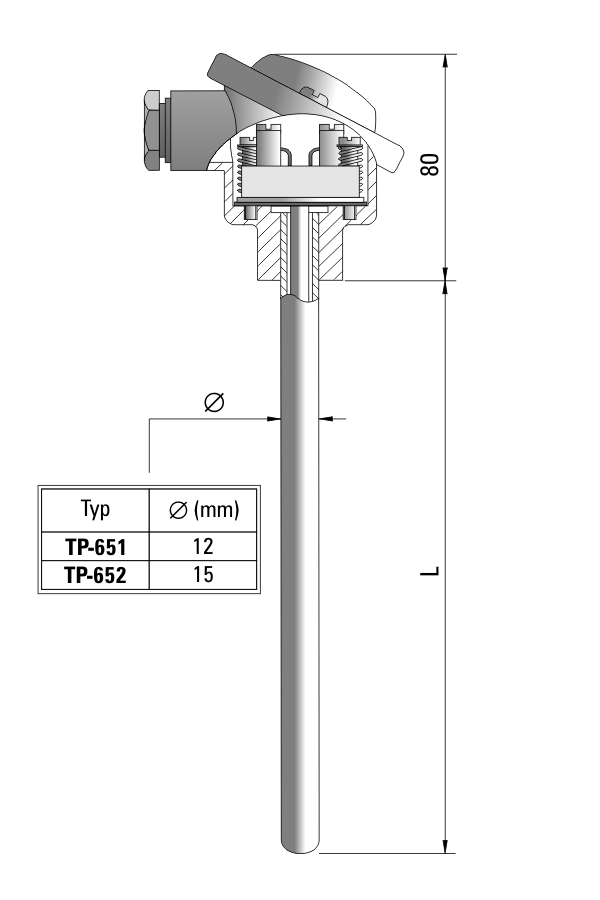

Długość czujnika (L)	200, 300, 400, 600, 800, 1000 mm
Wkład pomiarowy	TP-702
Długość wkładu pomiarowego	L + 30 mm
Średnica osłony
TP-651	12 mm
TP-652	15 mm
Materiał osłony	stal 1H18N9T
Typ głowicy	B lub NA
Temperatura pracy głowicy	-40÷100°C
Wyposażenie dodatkowe	króciec przesuwny KP
	uchwyt zaciskowy UZ
	przetwornik temperatury
	przewód kompensacyjny

Załączniki do produktu

TP-651_652 karta katalogowa

{"typ-srednica-czujnika":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-651-o-12mm":{"value":"651","input":"0"},"tp-652-o-15mm":{"value":"652","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"},"termoelement-t-cu-cuni":{"value":"T","input":"0"},"opornik-platynowy-pt500":{"value":"Pt500","input":"0"},"opornik-platynowy-pt1000":{"value":"Pt1000","input":"0"},"opornik-niklowy-ni100":{"value":"Ni100","input":"0"},"opornik-niklowy-ni1000":{"value":"Ni1000","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"","range":[{"from":"50","to":"2000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"krociec-przesuwny-kp":{"value":"KP","input":"0"},"uchwyt-zaciskowy-uz":{"value":"UZ","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"gwint-krocca":{"type":"translate","separator":"","multiple":"0","translations":{"m20x15":{"value":"M20x1,5","input":"0"},"g1-2":{"value":"G1\/2\\\u0022","input":"0"},"m24x15":{"value":"M24x1,5","input":"0"},"m27x2":{"value":"M27x2","input":"0"},"g3-4":{"value":"G3\/4\\\u0022","input":"0"},"inny":{"value":"","input":"1"}},"validation":{"required":"1","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"Gwint króćca musi stanowić co najmniej 125% średnicy czujnika.","display":{"always":"-1","when":[{"field":"gwint-krocca","is_equal":"KP"}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"tak":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"glowica":{"type":"translate","separator":"","multiple":"0","translations":{"ba-standard":{"value":"-","input":"0"},"dnag-ip65":{"value":"(DNAG)","input":"0"},"beg-kwasoodporna":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"klasa-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-2-standard":{"value":"-","input":"0"},"klasa-1":{"value":"(kl.1)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"K,J,T"}]}},"spoina-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"izolowana-standard":{"value":"-","input":"0"},"uziemiona":{"value":"(a)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"K,J,T"}]}},"klasa-montaz-termorezystora":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-b-2-przewodowo":{"value":"-","input":"0"},"klasa-b-3-przewodowo":{"value":"(3p)","input":"0"},"klasa-b-4-przewodowo":{"value":"(4p)","input":"0"},"klasa-a-3-przewodowo":{"value":"(A3p)","input":"0"},"klasa-a-4-przewodowo":{"value":"(A4p)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"Pt100,Pt500,Pt1000,Ni100,Ni1000"}]}},"przetwornik-temperatury-jk":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TCH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TCH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"element-przetwarzajacy","is_equal":"K,J"}]}},"przetwornik-temperatury-pt100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tchf":{"value":"TCHF-21","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"element-przetwarzajacy","is_equal":"Pt100"}]}},"przetwornik-temperatury-tni100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"element-przetwarzajacy","is_equal":"T,Ni100"}]}},"zakres-przetwarzania-przetwornika-k":{"type":"translate","separator":"","multiple":"0","translations":{"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"0-1000c":{"value":"65","input":"0"},"0-1200c":{"value":"70","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik-temperatury-jk","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"K"}]}},"zakres-przetwarzania-przetwornika-j":{"type":"translate","separator":"","multiple":"0","translations":{"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik-temperatury-jk","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"J"}]}},"zakres-przetwarzania-przetwornika-pt100":{"type":"translate","separator":"","multiple":"0","translations":{"50-50c":{"value":"10","input":"0"},"0-50c":{"value":"15","input":"0"},"0-100c":{"value":"20","input":"0"},"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu niestandardowego wpisz zakres w polu Uwagi lub wybierz przetwornik programowalny TEH.","display":{"always":"-1","when":[{"field":"przetwornik-temperatury-pt100","is_equal":"TCH-21,TCH-31,TCHF-21"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"Pt100"},{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"K"},{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"J"},{"from":"-100","to":"180","field":"element-przetwarzajacy","value":"T"},{"from":"-60","to":"150","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-jk","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-tni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"0","to":"800","field":"element-przetwarzajacy","value":"Pt100"},{"from":"0","to":"1200","field":"element-przetwarzajacy","value":"K"},{"from":"0","to":"1000","field":"element-przetwarzajacy","value":"J"},{"from":"0","to":"800","field":"element-przetwarzajacy","value":"T"},{"from":"0","to":"230","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-jk","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-tni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"-"},{"field":"element-przetwarzajacy","is_equal":"K,J,T"}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ / średnica czujnika

element przetwarzający

element pojedynczy / podwójny

długość czujnika (L) [mm]

wyposażenie dodatkowe

wykonanie pod przetwornik temperatury

głowica

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego

WYKONANIA DOSTĘPNE NA MAGAZYNIE
