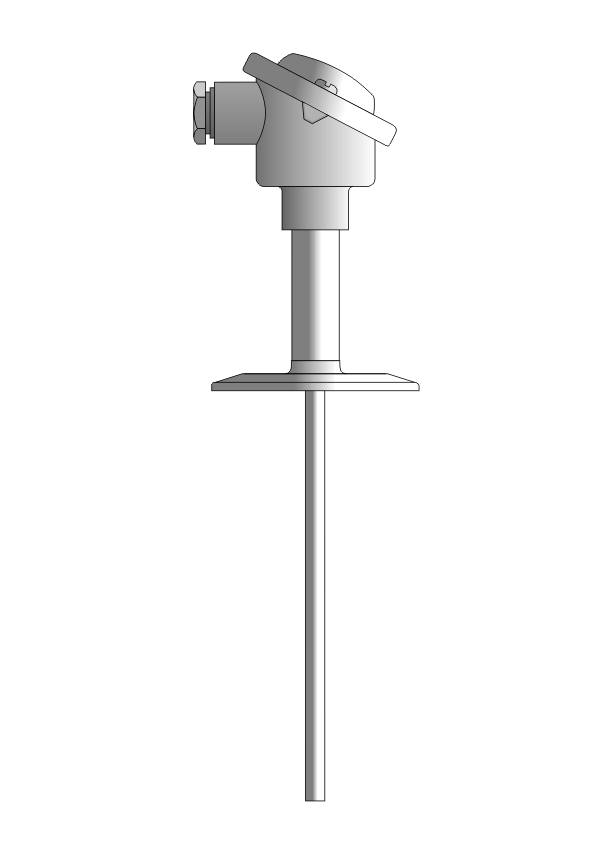

Czujnik temperatury TP-631_633 (Tri-Clamp, wymienny wkład pomiarowy)

Czujnik temperatury TP-631_633 (Tri-Clamp, wymienny wkład pomiarowy)

Czujnik temperatury TP-631_633 (Tri-Clamp, wymienny wkład pomiarowy)

Opis produktu

Czujnik temperatury z wymiennym wkładem pomiarowym. Przeznaczony do pomiarów temperatury w przemyśle spożywczym i farmaceutycznym. Higieniczne i cieczoszczelne połączenie.

Dane techniczne

Zakres pomiarowy	0÷150°C
Element przetwarzający	opornik platynowy Pt100
Montaż termorezystora	1P2: pojedynczy Pt100, 2-przewodowo
	1P3: pojedynczy Pt100, 3-przewodowo
	1P4: pojedynczy Pt100, 4-przewodowo
	2P2: podwójny Pt100, 2-przewodowo
	2P3: podwójny Pt100, 3-przewodowo
Długość zanurzeniowa czujnika (L)	50, 100, 200 mm
Typ wkładu pomiarowego	TP-701
Długość wkładu pomiarowego	L + 130 mm
Klasa elementu przetwarzającego	B

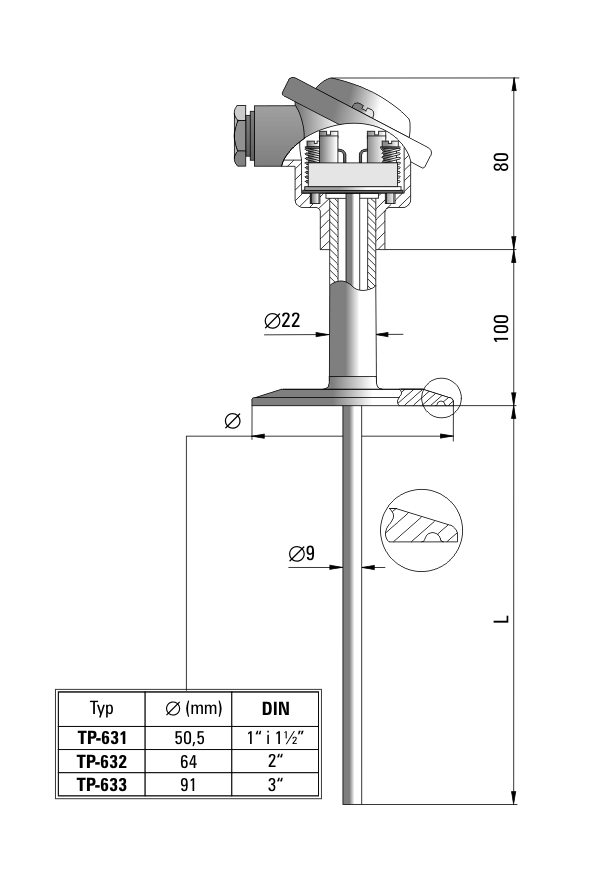

Przyłącze procesowe (wg PN-ISO 2852)
TP-631	50.5 mm (1″ DIN)
TP-632	64 mm (2″ DIN)
TP-633	91 mm (3″ DIN)
Średnica osłony	9 mm
Materiał osłony	stal 1H18N9T
Typ głowicy	B lub NA
Temperatura pracy głowicy	-40÷100°C
Wyposażenie dodatkowe	TC: silikonowa uszczelka złącza
	T: przetwornik temperatury
	klamra złącza (motylek)

Załączniki do produktu

TP-631_633 karta katalogowa

{"typ-wykonanie":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-631":{"value":"631","input":"0"},"tp-632":{"value":"632","input":"0"},"tp-633":{"value":"633","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"opornik-platynowy-pt100-standard":{"value":"-","input":"0"},"opornik-platynowy-pt500":{"value":"Pt500","input":"0"},"opornik-platynowy-pt1000":{"value":"Pt1000","input":"0"},"opornik-niklowy-ni100":{"value":"Ni100","input":"0"},"opornik-niklowy-ni1000":{"value":"Ni1000","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"10","to":"2000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"tak":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"glowica":{"type":"translate","separator":"","multiple":"0","translations":{"ba-standard":{"value":"-","input":"0"},"dnag-ip65":{"value":"(DNAG)","input":"0"},"beg-kwasoodporna":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"klasa-montaz-termorezystora":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-b-2-przewodowo":{"value":"-","input":"0"},"klasa-b-3-przewodowo":{"value":"(3p)","input":"0"},"klasa-b-4-przewodowo":{"value":"(4p)","input":"0"},"klasa-a-3-przewodowo":{"value":"(A3p)","input":"0"},"klasa-a-4-przewodowo":{"value":"(A4p)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"uszczelka-zlacza-tc":{"value":"(TC)","input":"0"},"klamra-zlacza-motylek":{"value":"(klamra)","input":"0"},"uszczelka-zlacza-tc-klamra-zlacza-motylek":{"value":"(TC\/klamra)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przetwornik-temperatury-pt100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tchf":{"value":"TCHF-21","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"element-przetwarzajacy","is_equal":"-"}]}},"przetwornik-temperatury-ni100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"element-przetwarzajacy","is_equal":"Ni100"}]}},"zakres-przetwarzania-przetwornika-pt100":{"type":"translate","separator":"","multiple":"0","translations":{"50-50c":{"value":"10","input":"0"},"0-50c":{"value":"15","input":"0"},"0-100c":{"value":"20","input":"0"},"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przetwornik-temperatury-pt100","is_equal":"TCH-21,TCH-31,TCHF-21"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"","range":[{"from":"-100","to":"100","field":"element-przetwarzajacy","value":"Pt100"},{"from":"-60","to":"100","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"0","to":"800","field":"element-przetwarzajacy","value":"Pt100"},{"from":"0","to":"180","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}}}

NAJPOPULARNIEJSZE WARIANTY

TP-631-1-50

379,00 zł
Stan: na zamówienie (wykonanie 2-7 dni)

Ceny netto

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ - wykonanie

TP-631▾

TP-631
TP-632
TP-633

element przetwarzający

opornik platynowy Pt100 (standard)▾

opornik platynowy Pt100 (standard)
opornik platynowy Pt500
opornik platynowy Pt1000
opornik niklowy Ni100
opornik niklowy Ni1000

element pojedynczy / podwójny

pojedynczy▾

pojedynczy
podwójny

długość czujnika L [mm]

50▾

50
100
200
inna

wykonanie pod przetwornik temperatury

nie▾

nie
tak

głowica

BA (standard)▾

BA (standard)
DNAG (IP65)
BEG (kwasoodporna)

klasa / montaż termorezystora

klasa B 2-przewodowo▾

klasa B 2-przewodowo
klasa B 3-przewodowo
klasa B 4-przewodowo
klasa A 3-przewodowo
klasa A 4-przewodowo

wyposażenie dodatkowe

brak▾

brak
uszczelka złącza TC
klamra złącza (motylek)
uszczelka złącza TC + klamra złącza (motylek)

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
