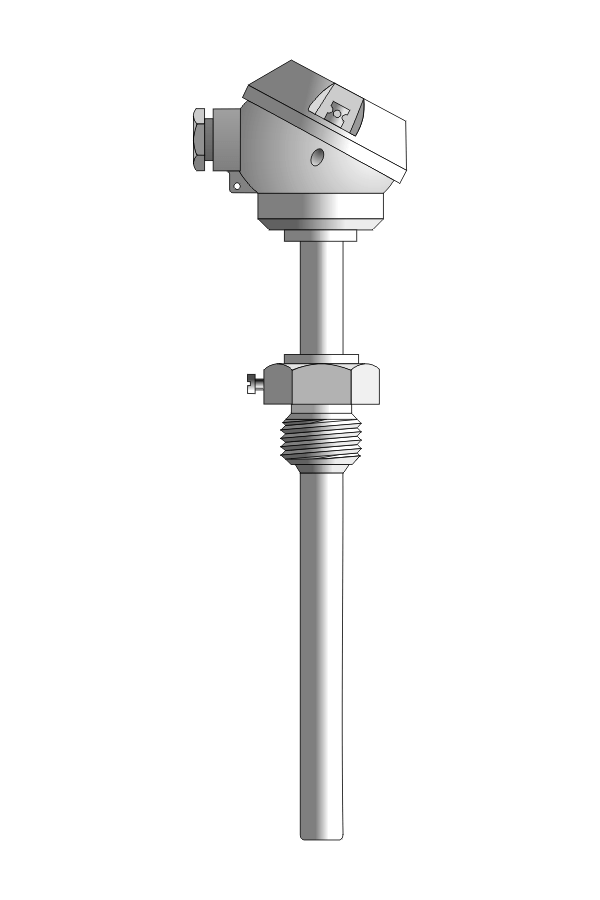

Czujnik temperatury TP-491_495 (z osłoną)

Czujnik temperatury TP-491_495 (z osłoną)

Czujnik temperatury TP-491_495 (z osłoną)

Opis produktu

Czujnik do pomiaru temperatury w zbiornikach i rurociągach.

Dane techniczne

Zakres pomiarowy	-40÷550°C opornik platynowy Pt100
	-40÷400°C termoelement Cu-CuNi (T)
	-40÷600°C termoelement Fe-CuNi (J)
	-40÷900°C termoelement NiCr-NiAl (K)
Ilość elementów przetwarzających	1 lub 2
Montaż	2, 3 lub 4 przewodowy (Pt100)
Klasa elementu przetwarzającego	2 (B)
Rodzaj spoiny termoelementu	izolowana

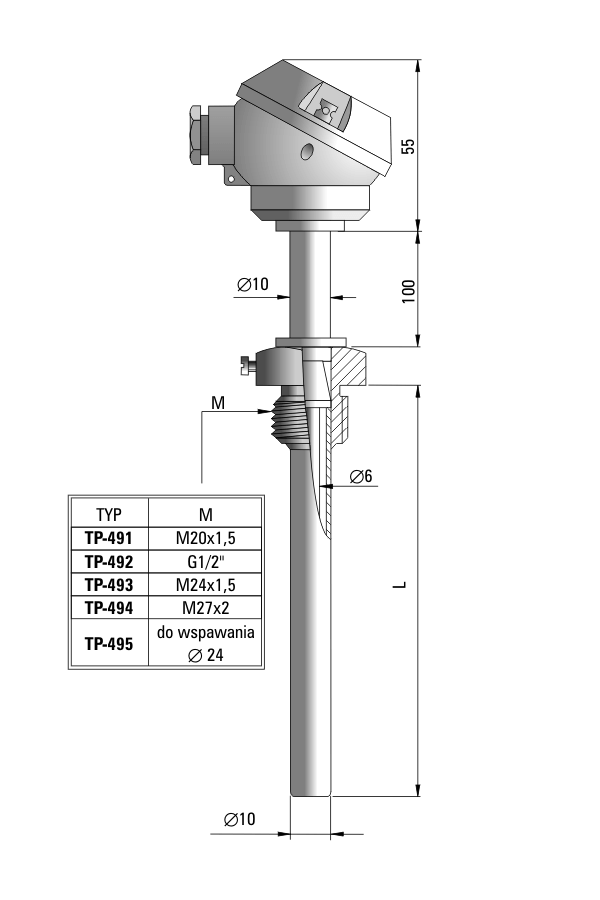

Przyłącze procesowe	TP-491: M20x1,5
	TP-492: G1/2″
	TP-493: M24x1,5
	TP-494: M27x2
	TP-495: do wspawania ⌀24
Materiał osłony	stal 1H18N9T
Długość zanurzeniowa (L)	50, 100, 200, 300, 400, 600, 800, 1000 mm
Typ głowicy	MA lub B
Temperatura pracy głowicy	-40÷100°C
Wyposażenie dodatkowe	mufa do wspawania
	przetwornik temperatury
	przewód kompensacyjny

Załączniki do produktu

TP-491_495 karta katalogowa

{"typ-rodzaj-gwintu":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-491-m20x15":{"value":"491","input":"0"},"tp-492-g1-2":{"value":"492","input":"0"},"tp-493-m24x15":{"value":"493","input":"0"},"tp-494-m27x2":{"value":"494","input":"0"},"tp-495-do-wspawania-fi24":{"value":"495","input":"0"},"tp-490-inny":{"value":"490","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"},"termoelement-t-cu-cuni":{"value":"T","input":"0"},"opornik-platynowy-pt500":{"value":"Pt500","input":"0"},"opornik-platynowy-pt1000":{"value":"Pt1000","input":"0"},"opornik-niklowy-ni100":{"value":"Ni100","input":"0"},"opornik-niklowy-ni1000":{"value":"Ni1000","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-zanurzeniowa-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"50","to":"2000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wykonanie-pod-przetwornik-temperatury":{"type":"translate","separator":"-","multiple":"0","translations":{"nie":{"value":"-","input":"0"},"tak":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"glowica":{"type":"translate","separator":"","multiple":"0","translations":{"maa-mala":{"value":"-","input":"0"},"ba-standardowa":{"value":"(B)","input":"0"},"dnag-ip65":{"value":"(DNAG)","input":"0"},"beg-kwasoodporna":{"value":"(BEG)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"inny-gwint":{"type":"translate","separator":"","multiple":"0","translations":{"wpisz-rodzaj-gwintu":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"typ-rodzaj-gwintu","is_equal":"490"}]}},"klasa-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-2-standard":{"value":"-","input":"0"},"klasa-1":{"value":"(kl.1)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"K,J,T"}]}},"spoina-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"izolowana":{"value":"-","input":"0"},"uziemiona":{"value":"(a)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"K,J,T"}]}},"klasa-montaz-termorezystora":{"type":"translate","separator":"","multiple":"0","translations":{"klasa-b-2-przewodowo":{"value":"-","input":"0"},"klasa-b-3-przewodowo":{"value":"(3p)","input":"0"},"klasa-b-4-przewodowo":{"value":"(4p)","input":"0"},"klasa-a-3-przewodowo":{"value":"(A3p)","input":"0"},"klasa-a-4-przewodowo":{"value":"(A4p)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"element-przetwarzajacy","is_equal":"Pt100,Pt500,Pt1000,Ni100,Ni1000"}]}},"przetwornik-temperatury-ma-jktni100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tehm":{"value":"TEHM-27","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"element-przetwarzajacy","is_equal":"J,K,T,Ni100"},{"field":"glowica","is_equal":"-"}]}},"przetwornik-temperatury-ma-pt100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tehm":{"value":"TEHM-27","input":"0"},"4-20ma-tchm":{"value":"TCHM-21","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"-"},{"field":"element-przetwarzajacy","is_equal":"Pt100"}]}},"przetwornik-temperatury-ba-jk":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"(B),(DNAG),(BEG)"},{"field":"element-przetwarzajacy","is_equal":"J,K"}]}},"przetwornik-temperatury-ba-pt100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-tchf":{"value":"TCHF-21","input":"0"},"4-20ma-tch":{"value":"TCH-21","input":"0"},"4-20ma-teh":{"value":"TEH-28","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-tch":{"value":"TCH-31","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"(B),(DNAG),(BEG)"},{"field":"element-przetwarzajacy","is_equal":"Pt100"}]}},"przetwornik-temperatury-ba-tni100":{"type":"translate","separator":";","multiple":"0","translations":{"mam-wlasny-przetwornik":{"value":"-","input":"0"},"4-20ma-teh":{"value":"TEH-27","input":"0"},"4-20ma-z-z-izolacja-galwaniczna-teh":{"value":"TEH-28","input":"0"},"0-10v-teh":{"value":"TEH-37","input":"0"},"0-10v-z-izolacja-galwaniczna-teh":{"value":"TEH-38","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"T"},{"field":"glowica","is_equal":"(B),(DNAG),(BEG)"},{"field":"element-przetwarzajacy","is_equal":"T,Ni100"}]}},"zakres-przetwarzania-przetwornika-k":{"type":"translate","separator":"","multiple":"0","translations":{"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"0-1000c":{"value":"65","input":"0"},"0-1200c":{"value":"70","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu innego należy go podać w polu Uwagi, bądź wybrać przetwornik programowalny TEH(TEHM).","display":{"always":"-1","when":[{"field":"przetwornik-temperatury-ba-jk","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"K"}]}},"zakres-przetwarzania-przetwornika-j":{"type":"translate","separator":"","multiple":"0","translations":{"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu innego należy go podać w polu Uwagi, bądź wybrać przetwornik programowalny TEH(TEHM).","display":{"always":"-1","when":[{"field":"przetwornik-temperatury-ba-jk","is_equal":"TCH-21,TCH-31"},{"field":"element-przetwarzajacy","is_equal":"J"}]}},"zakres-przetwarzania-przetwornika-pt100":{"type":"translate","separator":"-","multiple":"0","translations":{"50-50c":{"value":"10","input":"0"},"0-50c":{"value":"15","input":"0"},"0-100c":{"value":"20","input":"0"},"0-150c":{"value":"25","input":"0"},"0-200c":{"value":"30","input":"0"},"0-300c":{"value":"35","input":"0"},"0-400c":{"value":"40","input":"0"},"0-500c":{"value":"45","input":"0"},"0-600c":{"value":"50","input":"0"},"0-700c":{"value":"55","input":"0"},"0-800c":{"value":"60","input":"0"},"inny":{"value":"00","input":"0"}},"validation":{"required":"1","type":"number","range":[{"from":"","to":"","field":"","value":""}]},"hint":"W przypadku zakresu innego należy go podać w polu Uwagi, bądź wybrać przetwornik programowalny TEH(TEHM).","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-ba-pt100","is_equal":"TCH-21,TCH-31,TCHF-21"},{"field":"przetwornik-temperatury-ma-pt100","is_equal":"TCHM-21"}]}},"dol-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"Pt100"},{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"K"},{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"J"},{"from":"-100","to":"200","field":"element-przetwarzajacy","value":"T"},{"from":"-60","to":"150","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-ma-jktni100","is_equal":"TEH-27"},{"field":"przetwornik-temperatury-ma-pt100","is_equal":"TEH-27"},{"field":"przetwornik-temperatury-ba-jk","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-tni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"gora-zakresu-przetwarzania-przetwornika":{"type":"translate","separator":"-","multiple":"0","translations":{"wpisz-temperature-c":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"0","to":"800","field":"element-przetwarzajacy","value":"Pt100"},{"from":"0","to":"1200","field":"element-przetwarzajacy","value":"K"},{"from":"0","to":"1000","field":"element-przetwarzajacy","value":"J"},{"from":"0","to":"230","field":"element-przetwarzajacy","value":"T"},{"from":"0","to":"180","field":"element-przetwarzajacy","value":"Ni100"}]},"hint":"","display":{"always":"-2","when":[{"field":"przetwornik-temperatury-ma-jktni100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ma-pt100","is_equal":"TEHM-27"},{"field":"przetwornik-temperatury-ba-jk","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-pt100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"},{"field":"przetwornik-temperatury-ba-tni100","is_equal":"TEH-27,TEH-28,TEH-37,TEH-38"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wykonanie-pod-przetwornik-temperatury","is_equal":"-"},{"field":"element-przetwarzajacy","is_equal":"K,J,T"}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ (rodzaj gwintu)

element przetwarzający

element pojedynczy / podwójny

długość zanurzeniowa [mm]

wykonanie pod przetwornik temperatury

głowica

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego

WYKONANIA DOSTĘPNE NA MAGAZYNIE
