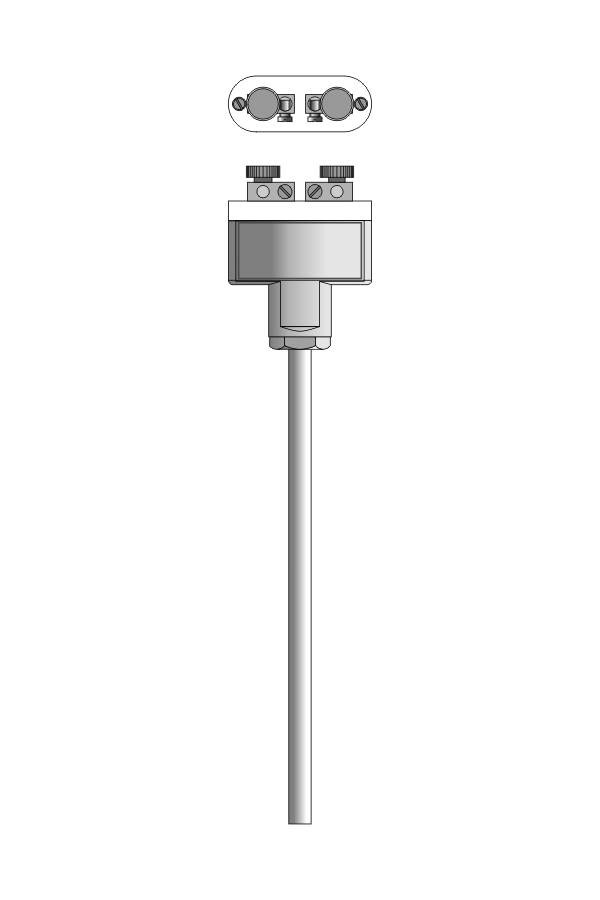

Czujnik temperatury TP-435_438 (termoelement płaszczowy)

Czujnik temperatury TP-435_438 (termoelement płaszczowy)

Czujnik temperatury TP-435_438 (termoelement płaszczowy)

Opis produktu

Czujnik do pomiaru temperatury gazów, cieczy lub ciał stałych.

Dane techniczne

Zakres pomiarowy	-40÷800°C termoelement Fe-CuNi (J)
	-40÷1100°C termoelement NiCr-NiAl (K)
	-40÷1250°C termoelement NiCrSi-NiSi (N)
Ilość elementów przetwarzających	1 lub 2
Klasa elementu przetwarzającego	1
Rodzaj spoiny termoelementu	uziemiona (a) izolowana (b) nieosłonięta (c)

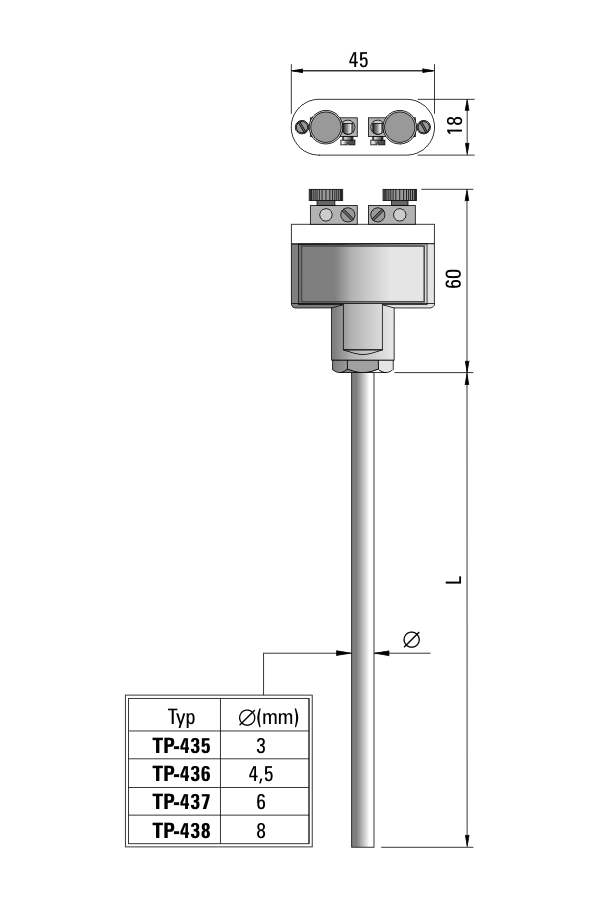

Średnica osłony	3, 4.5, 6, 8 mm
Długość czujnika (L)	200, 300, 400, 600, 800, 1000 mm
Materiał płaszcza	Inconel (J,K), Nicrobell (N)
Typ głowicy	owalna, otwarta
Temperatura pracy głowicy	-40÷100°C
Wyposażenie dodatkowe	króciec przesuwny KP przetwornik pomiarowy przewód kompensacyjny

Załączniki do produktu

TP-431_438 karta katalogowa

{"typ-srednica-oslony-mm":{"type":"translate","separator":"","multiple":"0","translations":{"tp-435-o-3mm":{"value":"435","input":"0"},"tp-436-o-4-5mm":{"value":"436","input":"0"},"tp-437-o-6mm":{"value":"437","input":"0"},"tp-438-o-8mm":{"value":"438","input":"0"},"tp-4350-inna":{"value":"4350","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"termoelement":{"type":"translate","separator":"","multiple":"0","translations":{"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"},"termoelement-n-nicrsi-nisi":{"value":"N","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"termoelement-pojedynczy-podwojny":{"type":"translate","separator":"-","multiple":"0","translations":{"pojedynczy":{"value":"1","input":"0"},"podwojny":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"rodzaj-spoiny-pomiarowej":{"type":"translate","separator":"","multiple":"0","translations":{"izolowana-standard":{"value":"b","input":"0"},"uziemiona":{"value":"a","input":"0"},"nieoslonieta":{"value":"c","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"","range":[{"from":"50","to":"50000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"krociec-przesuwny-kp":{"value":"KP","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"gwint-krocca":{"type":"translate","separator":"","multiple":"0","translations":{"m8x1-dla-srednicy-czujnika-max-6mm":{"value":"M8x1","input":"0"},"m10x1":{"value":"M10x1","input":"0"},"m12x15":{"value":"M12x1,5","input":"0"},"m20x15":{"value":"M20x1,5","input":"0"},"g1-2":{"value":"G1\/2","input":"0"},"inny":{"value":"","input":"1"}},"validation":{"required":"1","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"Gwint króćca musi stanowić nie mniej jak 125% średnicy czujnika.","display":{"always":"-1","when":[{"field":"wyposazenie-dodatkowe","is_equal":"KP"}]}},"inna-srednica-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"1mm":{"value":"(1mm)","input":"0"},"1-5mm":{"value":"(1.5mm)","input":"0"},"2mm":{"value":"(2mm)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"typ-srednica-oslony-mm","is_equal":"4350"}]}},"przewod-kompensacyjny-izolacja":{"type":"translate","separator":";","multiple":"0","translations":{"bez-przewodu":{"value":"-","input":"0"},"pcv":{"value":"PCV","input":"0"},"pcvekran":{"value":"PCV\/ekran","input":"0"},"silikon":{"value":"silikon","input":"0"},"silikonekran":{"value":"silikon\/ekran","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przewod-kompensacyjny-dlugosc":{"type":"translate","separator":"-","multiple":"0","translations":{"dlugosc-m":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"50","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"przewod-kompensacyjny-izolacja","is_equal":"PCV,PCV\/ekran,silikon,silikon\/ekran"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ / średnica osłony [mm]

termoelement

termoelement pojedynczy / podwójny

rodzaj spoiny pomiarowej

długość czujnika L [mm]

wyposażenie dodatkowe

przewód kompensacyjny - izolacja

przewód kompensacyjny - długość

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego

WYKONANIA DOSTĘPNE NA MAGAZYNIE
