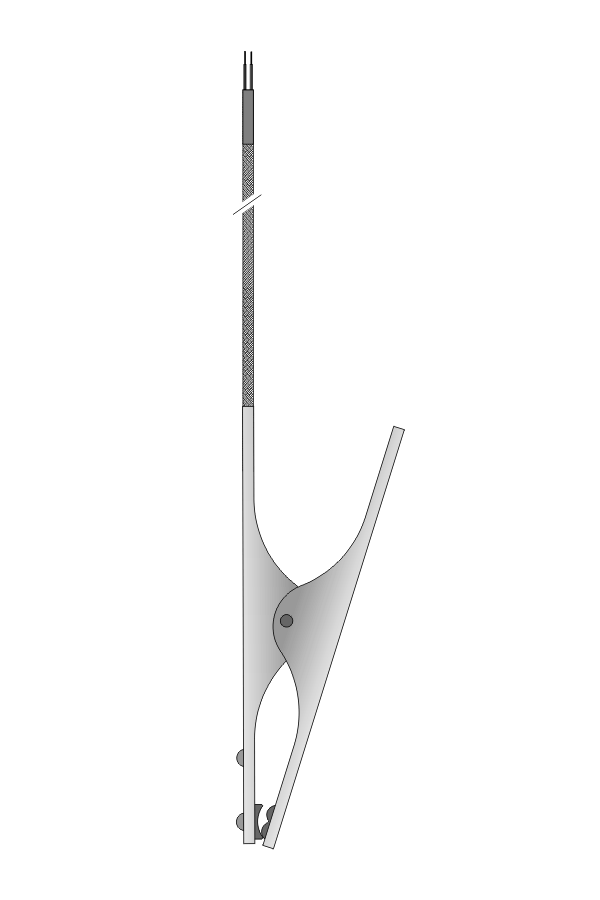

Czujnik temperatury TP-398

Opis produktu

Czujnik do pomiaru temperatury powierzchni rur, rurociągów lub elementów walcowych o średnicach do 50mm.

Dane techniczne

Zakres pomiarowy	–40÷300°C
Element przetwarzający	opornik platynowy Pt100 ⁽¹⁾ Fe-CuNi (J) NiCr-NiAl (K) Cu-CuNi (T)
Klasa termoelementu	2 (B) ⁽¹⁾
Rodzaj spoiny pomiarowej	uziemiona ⁽¹⁾
Materiał kleszczy	stal ocynkowana
Długość przewodu L_K	0,5÷5 m ⁽¹⁾
Izolacja przewodu	włókno szklane i ekran stalowy ⁽²⁾
Wyposażenie dodatkowe	wtyk przyłączeniowy MP lub MT

⁽¹⁾ inne parametry na życzenie
⁽²⁾ na życzenie inne izolacje przewodu: silikon, teflon, pancerz

Załączniki do produktu

TP-398 karta katalogowa
