Czujnik temperatury TP-397

Opis produktu

Czujnik do pomiaru temperatury powierzchni rur, rurociągów lub elementów walcowych.

Sprawdź również inne czujniki temperatury z oferty Czaki!

Dane techniczne

Zakres pomiarowy	–40÷250°C
Element przetwarzający	Fe-CuNi (J) NiCr-NiAl (K) Cu-CuNi (T)
Klasa termoelementu	2
Rodzaj spoiny pomiarowej	uziemiona ⁽¹⁾

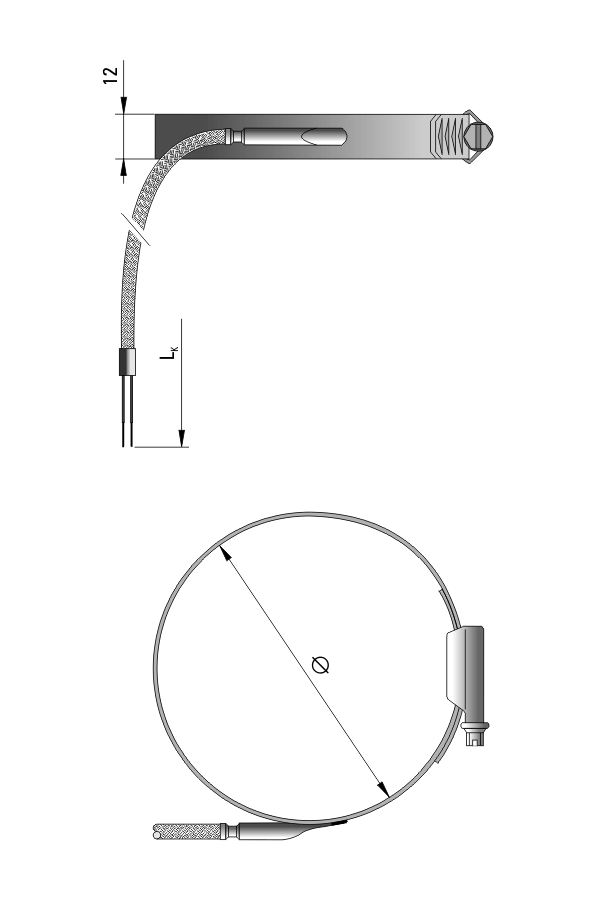

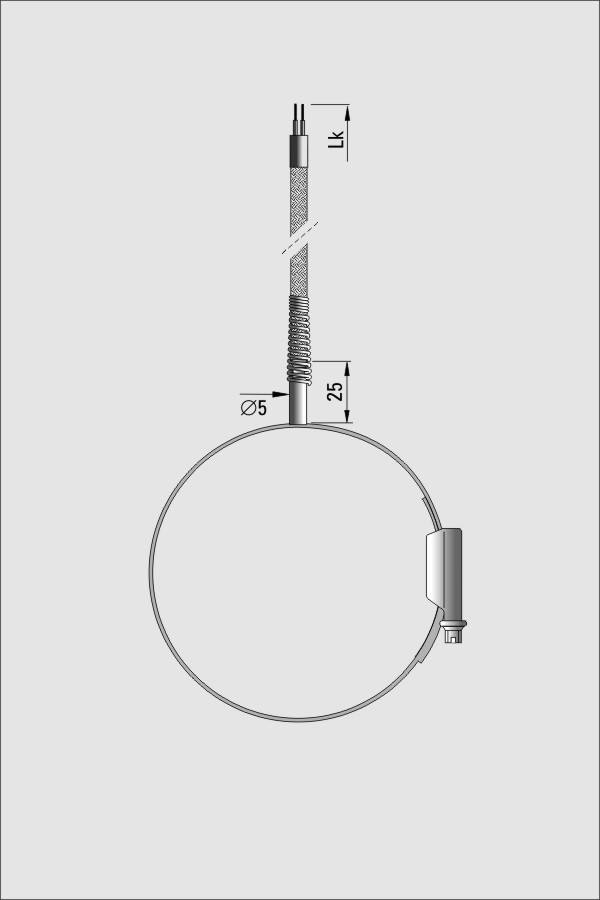

Średnica opaski Ø	32÷50, 50÷70, 70÷90, 90÷110, 110÷1300 mm ⁽¹⁾
Materiał opaski zaciskowej	stal nierdzewna 1.4016

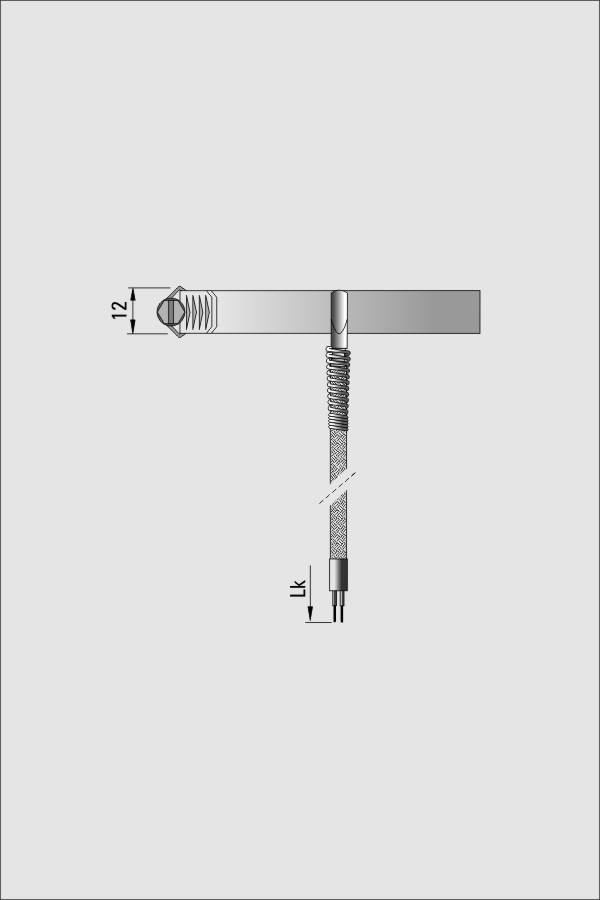

Długość przewodu L_K	0,5÷2,5 m ⁽¹⁾
Izolacja przewodu	włókno szklane i ekran stalowy ⁽²⁾

⁽¹⁾ inne parametry na życzenie
⁽²⁾ na życzenie inne izolacje przewodu PCV, silikon, teflon, pancerz

Załączniki do produktu

TP-397 karta katalogowa
