Czujnik temperatury TP-388

Opis produktu

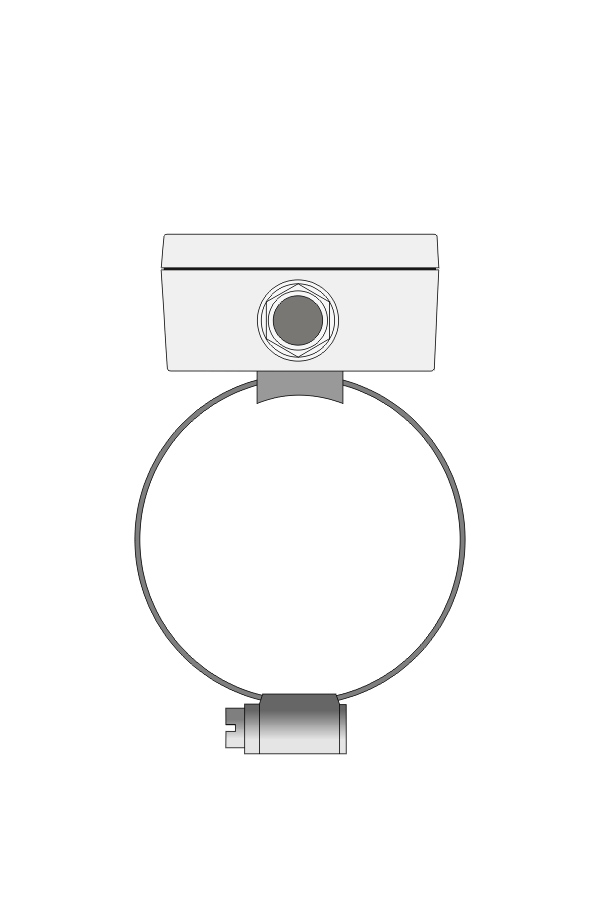

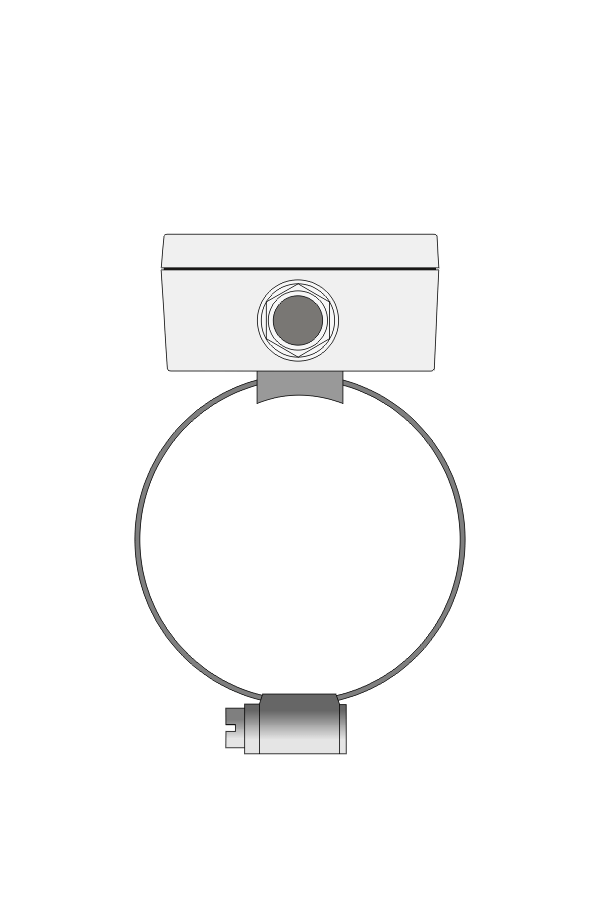

Czujnik do pomiaru temperatury powierzchni rurociągów i kanałów wentylacyjnych od 32 mm do 130 mm.
Wyposażony w radiator zwiększający powierzchnię odbioru ciepła. Mocowany za pomocą opaski zaciskowej.

Sprawdź również inne czujniki temperatury z oferty Czaki!

Dane techniczne

Zakres pomiarowy	-30÷90°C ⁽¹⁾
Element przetwarzający	opornik platynowy Pt100 ⁽²⁾
Klasa elementu przetwarzającego	B
Maksymalny prąd pomiarowy	1 mA

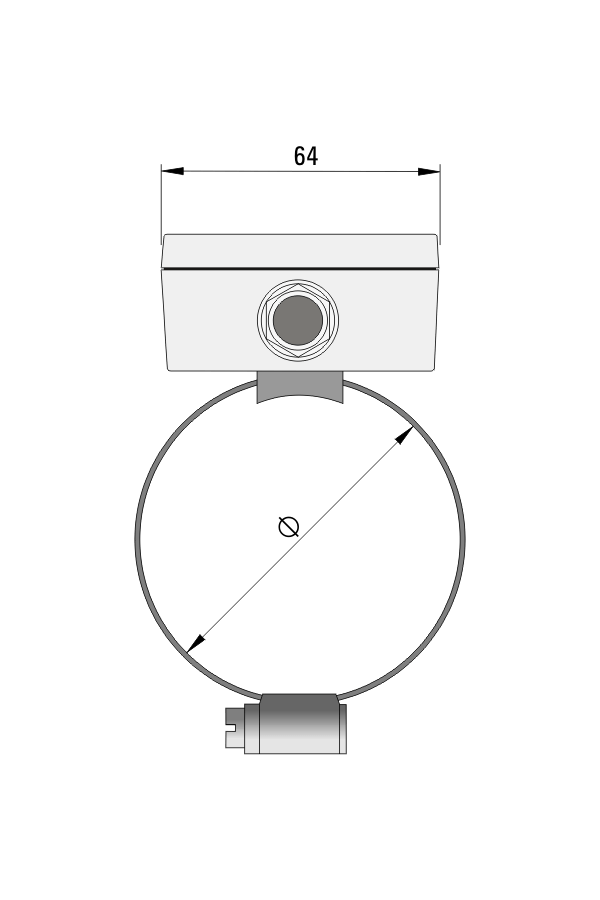

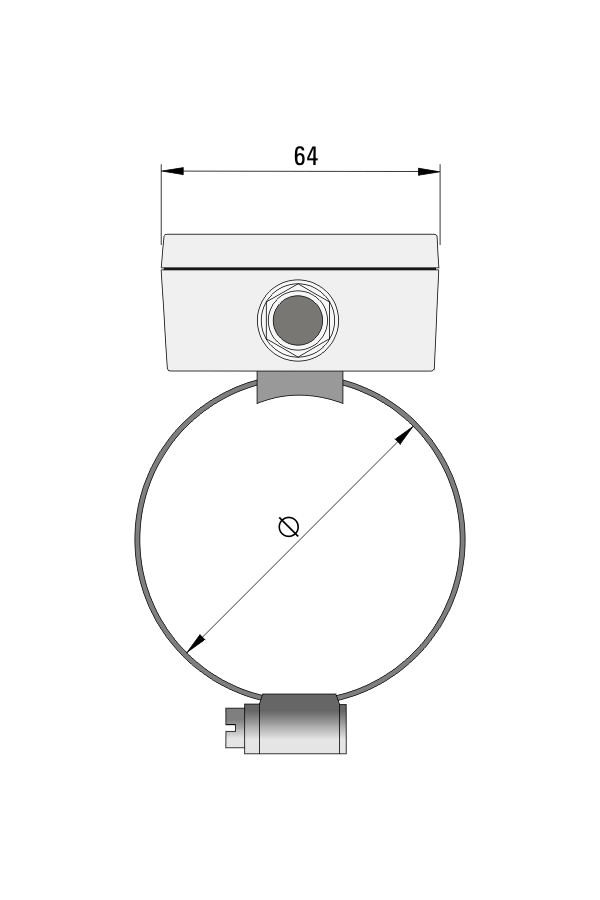

Średnica rury	32÷130 mm ⁽¹⁾
Materiał obudowy	tworzywo PC
Stopień ochrony	IP54
Wyposażenie dodatkowe	przetwornik temperatury

⁽¹⁾ inne parametry na życzenie
⁽²⁾ na życzenie Pt500, Pt1000, Ni100, Ni1000, termoelementy

Załączniki do produktu

TP-388 karta katalogowa

{"srednica-rurociagu-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"32":{"value":"","input":"0"},"40":{"value":"","input":"0"},"50":{"value":"","input":"0"},"80":{"value":"","input":"0"},"100":{"value":"","input":"0"},"125":{"value":"","input":"0"},"130":{"value":"","input":"0"},"150":{"value":"","input":"0"},"160":{"value":"","input":"0"},"300":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"przetwornik-stalozakresowy-t":{"value":"T","input":"0"},"przetwornik-programowalny-te":{"value":"TE","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"zakres-dolny-przetwornika":{"type":"translate","separator":";(4-20mA) °C:","multiple":"0","translations":{"30":{"value":"","input":"0"},"0":{"value":"","input":"0"},"inny":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-2","when":[{"field":"wyposazenie-dodatkowe","is_equal":"T,TE"}]}},"zakres-gorny-przetwornika":{"type":"translate","separator":"÷","multiple":"0","translations":{"70":{"value":"","input":"0"},"90":{"value":"","input":"0"},"inny":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-2","when":[{"field":"wyposazenie-dodatkowe","is_equal":"T,TE"}]}}}

NAJPOPULARNIEJSZE WARIANTY

TP-388-50

210,00 zł
Stan: 0

TP-388-50-T (-30+90°C/4-20mA)

415,00 zł
Stan: 0

Ceny netto

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

średnica rurociągu [mm]:

wyposażenie dodatkowe

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
