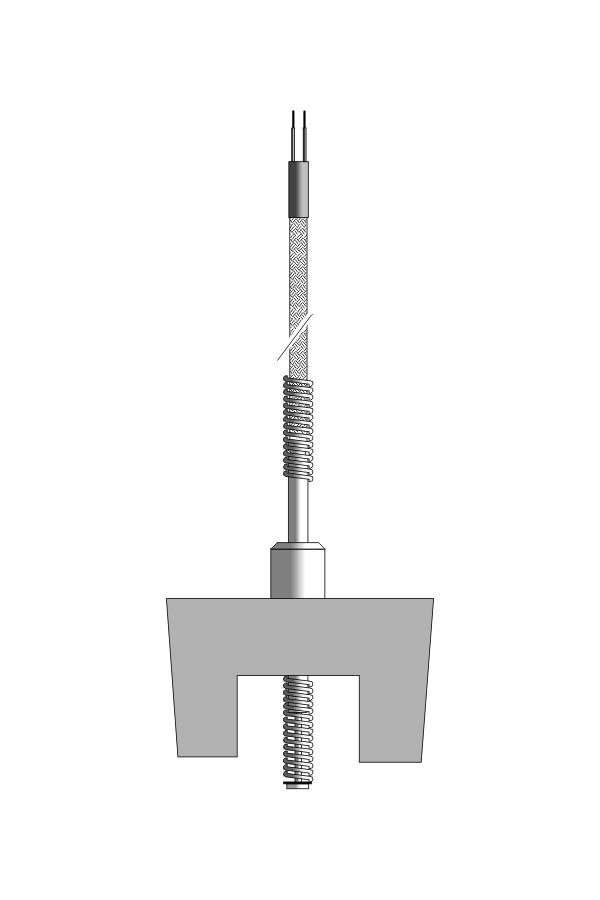

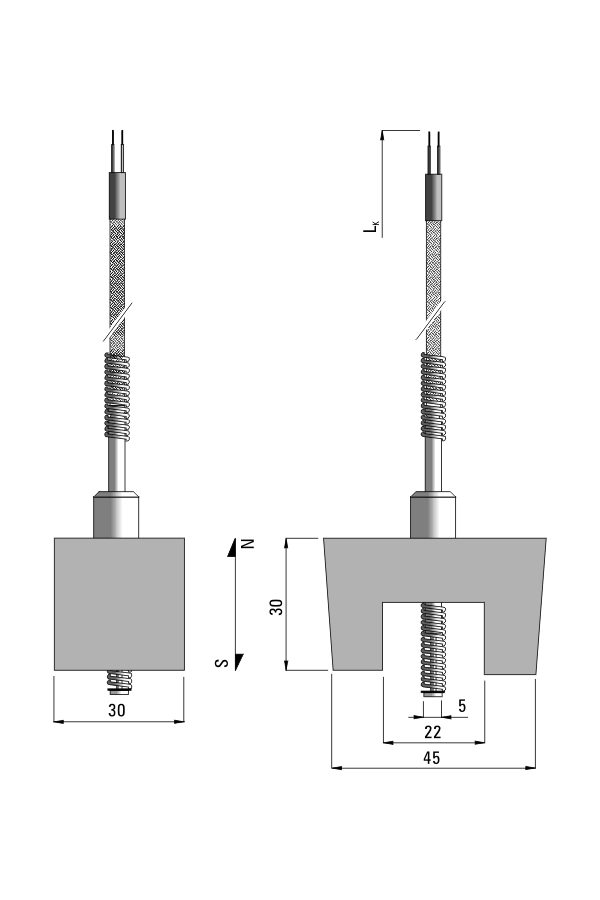

Czujnik temperatury TP-385

Opis produktu

Czujnik do pomiaru temperatury powierzchni bloków, części maszyn lub elementów konstrukcyjnych wykonanych z materiałów magnetycznych.

Dane techniczne

Zakres pomiarowy	0÷400°C
Rodzaj elementu przetwarzającego	termoelement Cu-CuNi (T) termoelement Fe-CuNi (J) termoelement NiCr-NiAl (K)
Rodzaj spoiny	izolowana ⁽¹⁾
Klasa termoelementu	2 ⁽¹⁾
Materiał magnesu	Alnico
Materiał osłony	stal 1H18N9T
Izolacja przewodu	włókno szklane i ekran stalowy ⁽²⁾
Długość przewodu L_K	0.5, 1.5, 2.5 m ⁽¹⁾
Wyposażenie dodatkowe	wtyk MT

⁽¹⁾ inne parametry na życzenie
⁽²⁾ na życzenie inne izolacje przewodu PCV, silikon, teflon, pancerz

Załączniki do produktu

TP-385 karta katalogowa

{"termoelement":{"type":"translate","separator":"","multiple":"0","translations":{"k-nicr-nial":{"value":"K","input":"0"},"j-fe-cuni":{"value":"J","input":"0"},"t-cu-cuni":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"05":{"value":"","input":"0"},"15":{"value":"","input":"0"},"25":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"wtyk-mt":{"value":"MT","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"opcje-przewod":{"type":"translate","separator":" ","multiple":"0","translations":{"wykonanie-standardowe-wlokno-szklane-i-ekran-stalowy-tmax-400c":{"value":"-","input":"0"},"pcv-tmax-80c":{"value":"(PCV)","input":"0"},"silikon-tmax-180c":{"value":"(silikon)","input":"0"},"teflon-tmax-260c":{"value":"(teflon)","input":"0"},"pancerz":{"value":"(pancerz)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

termoelement

długość przewodu (Lk) [m]

wyposażenie dodatkowe

opcje - przewód

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
