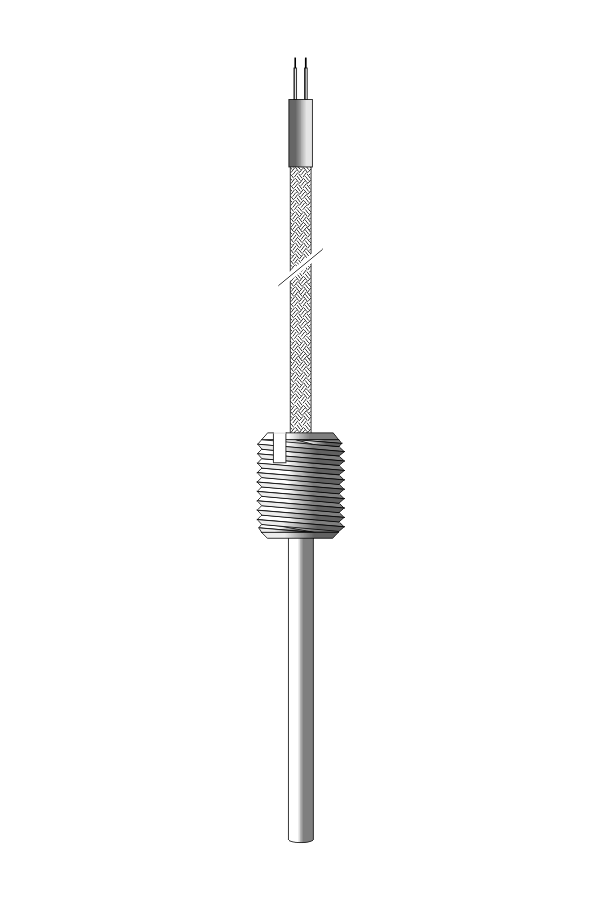

Czujnik temperatury TP-379

Opis produktu

Czujnik do pomiaru temperatury części łożysk silników, części maszyn, bloków i różnych elementów konstrukcyjnych.

Dane techniczne

Zakres pomiarowy	-40÷400°C
Element przetwarzający	opornik platynowy Pt100 ⁽¹⁾ termoelement Cu-CuNi (T) termoelement Fe-CuNi (J) termoelement NiCr-NiAl (K)
Rodzaj spoiny pomiarowej termoelementu	izolowana ⁽²⁾
Klasa elementu przetwarzającego	2 (B) ⁽²⁾

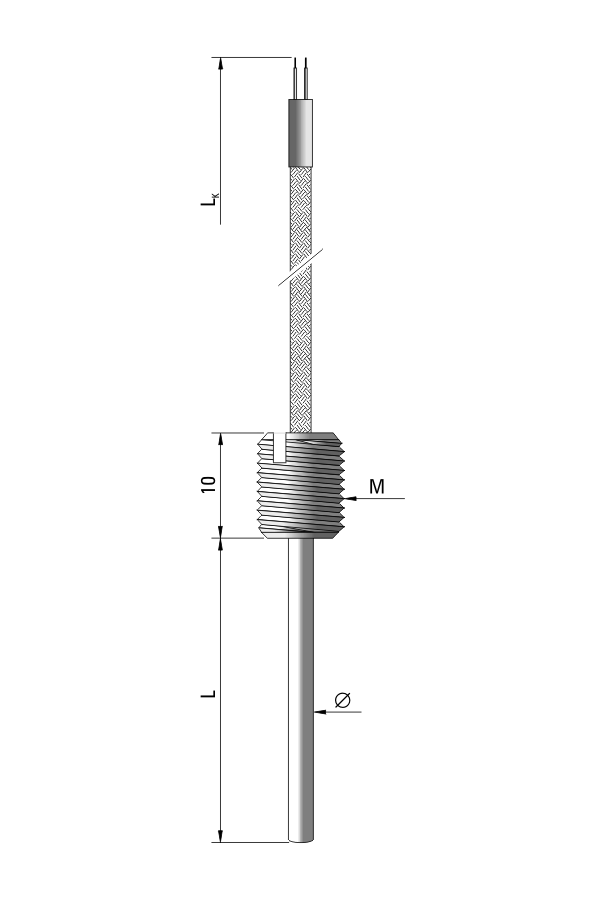

Długość czujnika L	30÷200 mm ⁽²⁾
Średnica osłony Ø	3, 4, 5 mm ⁽²⁾
Materiał osłony	stal 1H18N9T
Izolacja przewodu	włókno szklane i ekran stalowy ⁽³⁾
Długość przewodu L_K	0,5÷5 m ⁽²⁾
Przyłącze procesowe M	M8x1, M10x1, M12x1.5 ⁽²⁾

⁽¹⁾ na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽²⁾ inne parametry na życzenie
⁽³⁾ na życzenie inne izolacje przewodu PCV, silikon, teflon, pancerz

Załączniki do produktu

TP-379 karta katalogowa

{"element-przetwarzajacy":{"type":"translate","separator":"-","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"},"termoelement-t-cu-cuni":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-oslony-mm":{"type":"standard","separator":"-","multiple":"0","translations":{"3":{"value":"","input":"0"},"4":{"value":"","input":"0"},"5":{"value":"","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"30":{"value":"","input":"0"},"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"05":{"value":"","input":"0"},"10":{"value":"","input":"0"},"15":{"value":"","input":"0"},"25":{"value":"","input":"0"},"30":{"value":"","input":"0"},"50":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wielkosc-gwintu-m":{"type":"translate","separator":"-","multiple":"0","translations":{"m8x1":{"value":"","input":"0"},"m10x1":{"value":"","input":"0"},"m12x1-5":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"opcje-przewod":{"type":"translate","separator":" ","multiple":"0","translations":{"wykonanie-standardowe-wlokno-szklane-i-ekran-stalowy-tmax-400c":{"value":"-","input":"0"},"pcv-tmax-80c":{"value":"(PCV)","input":"0"},"silikon-tmax-180c":{"value":"(silikon)","input":"0"},"teflon-tmax-260c":{"value":"(teflon)","input":"0"},"pancerz":{"value":"(pancerz)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

element przetwarzający

średnica osłony [mm]

długość czujnika (L) [mm]

długość przewodu (Lk) [m]

wielkość gwintu M

opcje - przewód

Kod zamówieniowy:

Uwagi:
