Czujnik temperatury TP-373

Opis produktu

Uniwersalny czujnik temperatury.

Dane techniczne

Zakres pomiarowy	-40÷400°C
Element przetwarzający	opornik platynowy Pt100 ⁽¹⁾ termoelement Cu-CuNi (T) termoelement Fe-CuNi (J) termoelement NiCr-NiAl (K)
Klasa elementu przetwarzającego	2 (B) ⁽²⁾
Rodzaj spoiny pomiarowej termoelementu	izolowana ⁽²⁾
Materiał osłony	stal 1H18N9T
Izolacja przewodu	włókno szklane i ekran stalowy ⁽³⁾
Długość przewodu L_K	0,5 \| 1,5 \| 2,5 ⁽²⁾
Przyłącze procesowe M	króciec M6, M8x1, M10x1, M12x1,5, M20x1,5, G1/2″. 1/4″-20

⁽¹⁾ na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽²⁾ inne parametry na życzenie
⁽³⁾ na życzenie inne izolacje przewodu PVC, silikon, teflon, pancerz

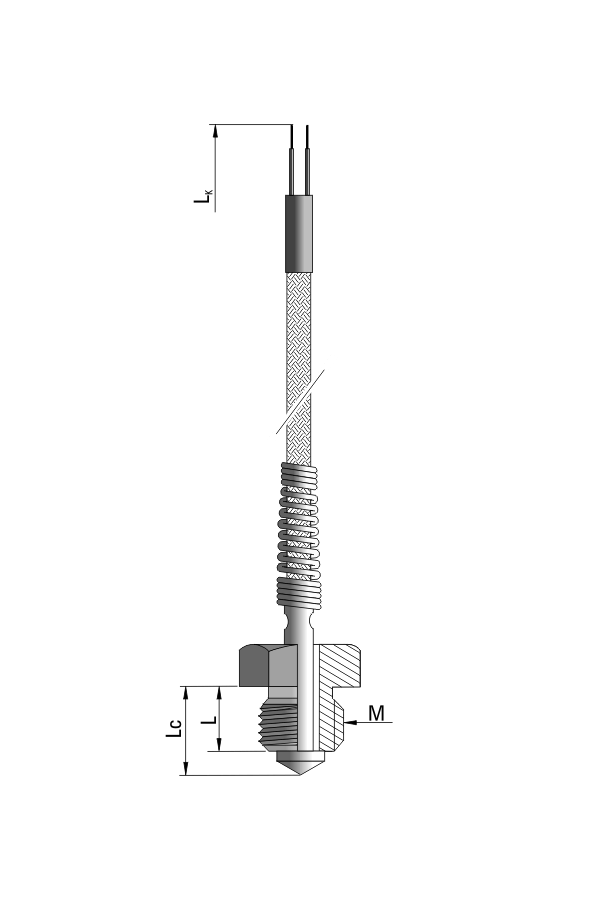

Wykonania
M ⁽²⁾	L ⁽²⁾	Lc ⁽²⁾
M6	10	16,5
M8x1	12	19
M10x1	15	22,5
M12x1,5	20	29
M20x1,5	30	43
G1/2″	30	43
1/4″-20	15	21,5

Załączniki do produktu

TP-373_375 karta katalogowa
