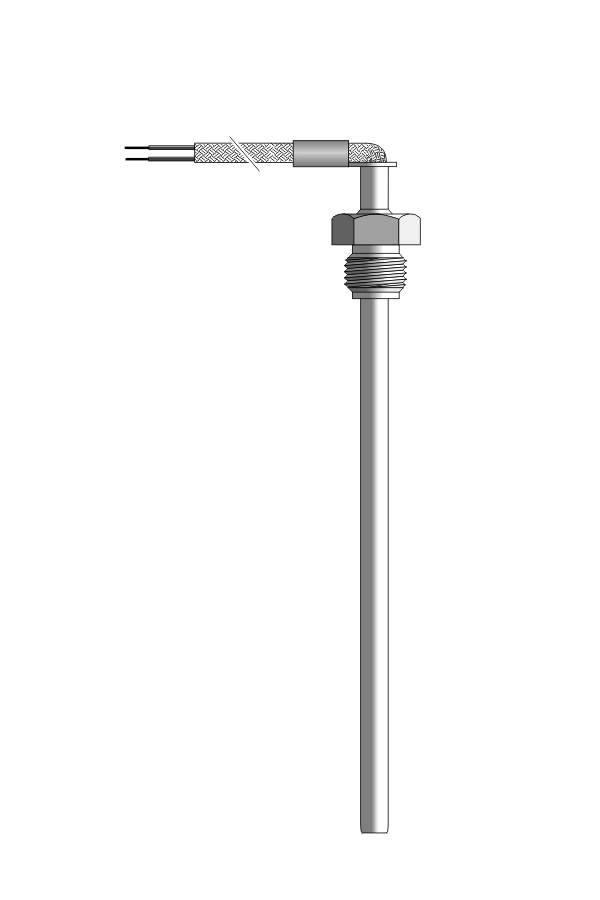

Czujnik temperatury TP-372

Opis produktu

Uniwersalny czujnik temperatury z wspawanym przyłączem procesowym.

Dane techniczne

Zakres pomiarowy	-40÷400°C
Element przetwarzający	opornik platynowy Pt100 ⁽²⁾ termoelement Cu-CuNi (T) termoelement Fe-CuNi (J) termoelement NiCr-NiAl (K)
Rodzaj spoiny pomiarowej termoelementu	izolowana ⁽¹⁾
Klasa elementu przetwarzającego	2 (B)
Materiał osłony	stal 1H18N9T
Średnica osłony Ø	2.5, 3, 4, 5, 6, 8 mm
Izolacja przewodu	włókno szklane i ekran stalowy ⁽³⁾
Przyłącze procesowe	króciec wspawany M6, M8x1, M10x1, M12x1,5, M20x1,5, G1/2″ ⁽¹⁾

⁽¹⁾inne parametry na życzenie
⁽²⁾na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽³⁾na życzenie inne izolacje przewodu PVC, silikon, teflon, pancerz

Załączniki do produktu

TP-371_372 karta katalogowa

{"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"opornik-platynowy-pt100":{"value":"Pt100","input":"0"},"termoelement-k-nicr-nial":{"value":"K","input":"0"},"termoelement-j-fe-cuni":{"value":"J","input":"0"},"termoelement-t-cu-cuni":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-oslony-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"25":{"value":"2,5","input":"0"},"3":{"value":"","input":"0"},"4":{"value":"","input":"0"},"5":{"value":"","input":"0"},"6":{"value":"","input":"0"},"8":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"500":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"05":{"value":"","input":"0"},"10":{"value":"","input":"0"},"15":{"value":"","input":"0"},"20":{"value":"","input":"0"},"25":{"value":"","input":"0"},"30":{"value":"","input":"0"},"40":{"value":"","input":"0"},"50":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przylacze-procesowe-m":{"type":"translate","separator":"-","multiple":"0","translations":{"m6":{"value":"","input":"0"},"m8x1":{"value":"","input":"0"},"m10x1":{"value":"","input":"0"},"m12x15":{"value":"","input":"0"},"m20x15":{"value":"","input":"0"},"g1-2":{"value":"","input":"0"},"inne":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"opcje-przewod":{"type":"translate","separator":" ","multiple":"0","translations":{"wykonanie-standardowe-wlokno-szklane-i-ekran-stalowy-tmax-400c":{"value":"-","input":"0"},"pvc-tmax-80c":{"value":"(PVC)","input":"0"},"silikon-tmax-180c":{"value":"(silikon)","input":"0"},"teflon-tmax-260c":{"value":"(teflon)","input":"0"},"pancerz":{"value":"(pancerz)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wymagania-dodatkowe":{"type":"translate","separator":"(","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"dodaj":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"inna klasa, termorezystor 3 i 4-żyłowy, wykonanie podwójne","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

element przetwarzający

średnica osłony [mm]

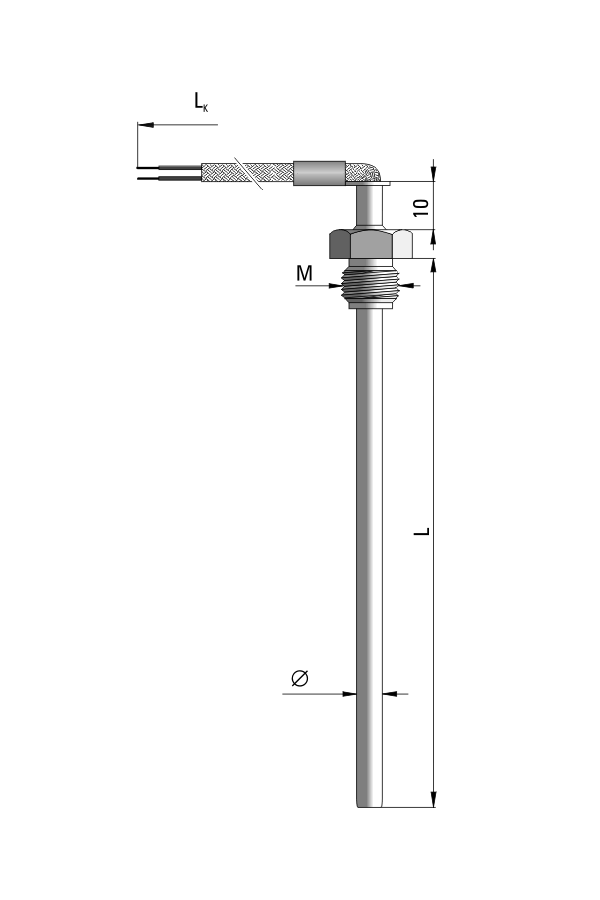

długość czujnika (L) [mm]

długość przewodu (Lk) [m]

przyłącze procesowe M

opcje - przewód

wymagania dodatkowe ?

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
