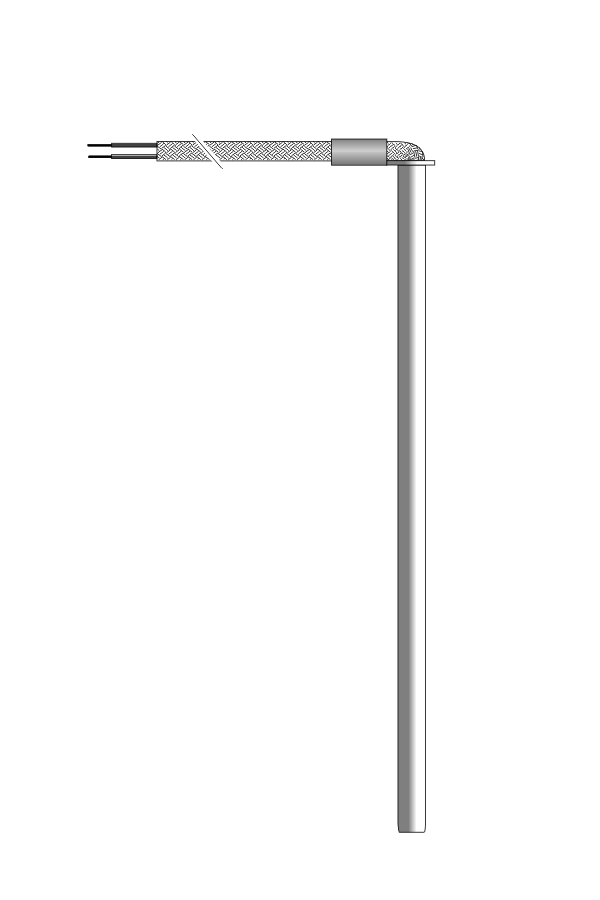

Czujnik temperatury TP-362

Czujnik temperatury TP-362

Czujnik temperatury TP-362

Opis produktu

Uniwersalny czujnik temperatury.

Dane techniczne

Zakres pomiarowy	-40÷400°C
Element przetwarzający	opornik platynowy Pt100 ⁽¹⁾ termoelement Fe-CuNi (J) termoelement NiCr-NiAl (K) termoelement Cu-CuNi (T)
Klasa elementu przetwarzającego	2 (B)
Spoina pomiarowa termoelementu	izolowana ⁽²⁾
Materiał osłony	stal 1H18N9T
Średnica osłony	2.5, 3, 4, 5, 6, 8 mm
Długość czujnika L ⁽²⁾	50, 100, 200, 300, 400, 600, 800 mm ⁽²⁾
Długość przewodu L_K	0,5 \| 1 \| 1,5 m ⁽²⁾
Izolacja przewodu	włókno szklane i ekran stalowy ⁽³⁾
Wyposażenie dodatkowe	króciec przesuwny KP

⁽¹⁾ na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽²⁾ inne parametry na życzenie
⁽³⁾ na życzenie inne izolacje przewodu PVC, silikon, teflon, pancerz

Załączniki do produktu

TP-361_362 karta katalogowa
