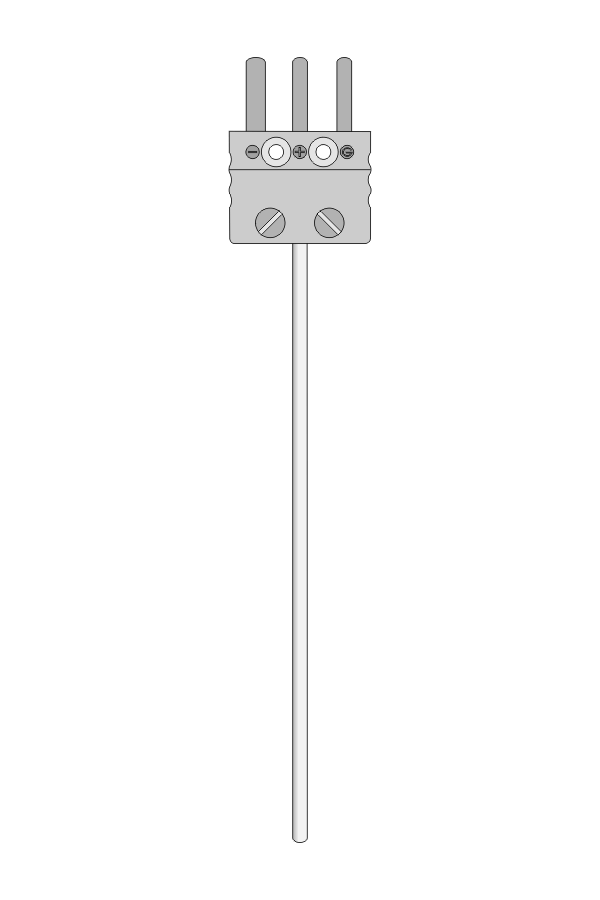

Czujnik temperatury TP-271_273 (Pt100, płaszczowy, wtyk MP)

Opis produktu

Uniwersalne, płaszczowe czujnik termorezystancyjne, z wtykiem MP.

Sprawdź inne nasze czujniki temperatury!

Dane techniczne

Zakres pomiarowy	-40÷400°C
Element przetwarzający	opornik platynowy Pt100 ⁽¹⁾
Klasa elementu przetwarzającego	B ⁽²⁾
Montaż	3 przewodowy
Typ/średnica osłony [mm]
TP-271	3
TP-272	4
TP-273	5
Przyłącze	gniazdo MP-G

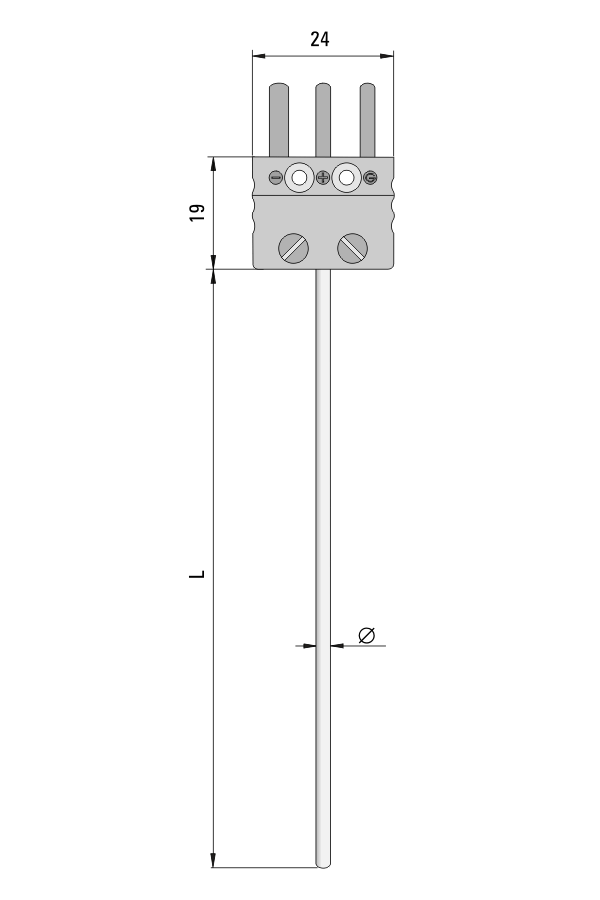

Długość czujnika L	100, 200, 300, 400, 600, 800 mm ⁽²⁾
Wyposażenie dodatkowe	wtyk MP-G
	króciec przesuwny KP

⁽¹⁾ Na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽²⁾ Inne parametry na życzenie

Załączniki do produktu

TP-261_273 karta katalogowa

{"typ-srednica-czujnika":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-271-o-3mm":{"value":"271","input":"0"},"tp-272-o-4mm":{"value":"272","input":"0"},"tp-273-o-5mm":{"value":"273","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"50","to":"20000","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"krociec-przesuwny-kp":{"value":"KP","input":"0"},"gniazdo-mp-g":{"value":"MP-G","input":"0"},"krociec-kp-i-gniazdo-mp-g":{"value":"KP-MP-G","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

typ / średnica czujnika

długość czujnika (L) [mm]

wyposażenie dodatkowe

Kod zamówieniowy:

Uwagi:

Dodaj do zapytania ofertowego
