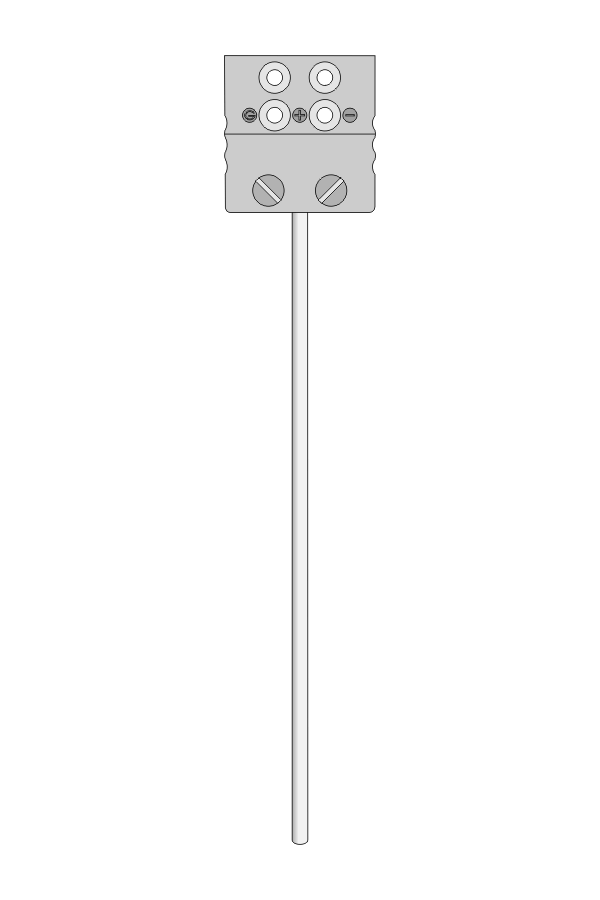

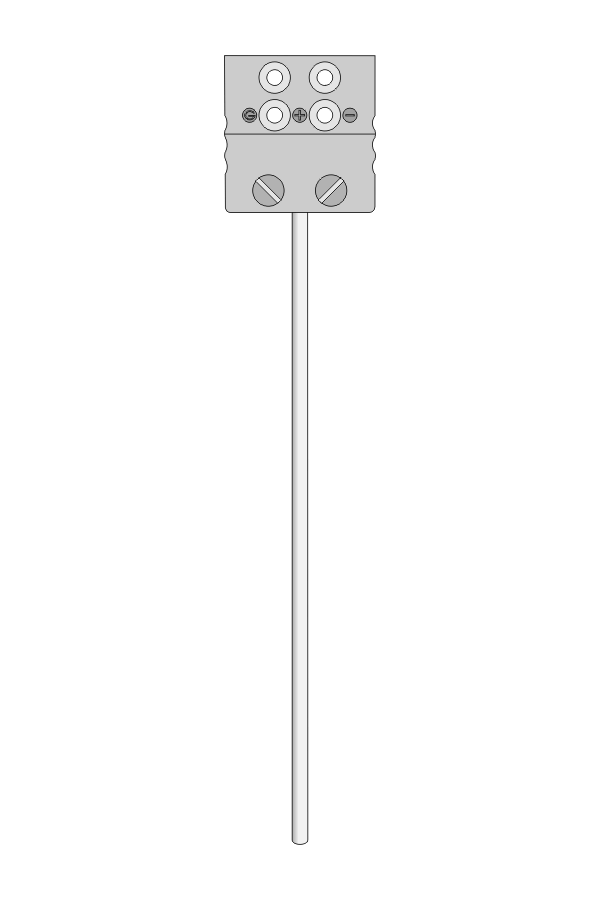

Czujnik temperatury TP-261_263 (Pt100, płaszczowy, gniazdo MP)

Opis produktu

Uniwersalny czujnik temperatury, termorezystancyjny, płaszczowy z gniazdem przyłączeniowym MP.

Dane techniczne

Zakres pomiarowy	-40÷400°C
Element przetwarzający	opornik platynowy Pt100 ⁽¹⁾
Klasa elementu przetwarzającego	B ⁽²⁾
Montaż	3 przewodowy
Typ/średnica osłony [mm]
TP-261	3
TP-262	4
TP-263	5
Przyłącze	gniazdo MP-G
Długość czujnika L	100, 200, 300, 400, 600, 800 mm ⁽²⁾
Wyposażenie dodatkowe	wtyk MP
	króciec przesuwny KP

⁽¹⁾ Na życzenie Pt500, Pt1000, Ni100, Ni1000
⁽²⁾ Inne parametry na życzenie

Załączniki do produktu

TP-261_273 karta katalogowa
