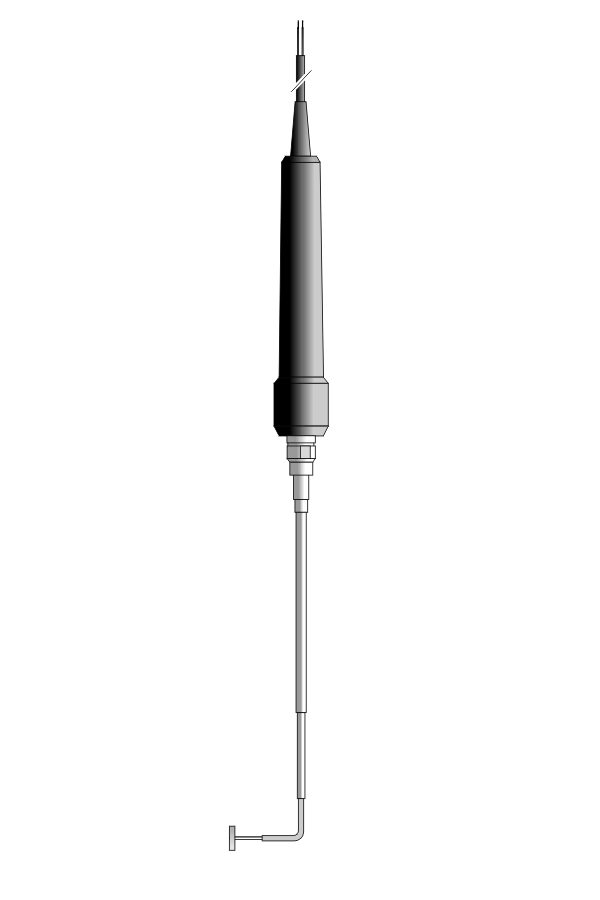

Czujnik temperatury TP-104

Opis produktu

Uniwersalne czujniki do pomiaru temperatury cieczy, gazów lub powierzchni z kątową końcówką pomiarową.

Sprawdź również inne czujniki temperatury z oferty Czaki!

Dane techniczne

Zakres temperatury	-40÷1100°C
Rodzaj termoelementu płaszczowego	NiCr-NiAl (K) ⁽¹⁾
Średnica termoelementu Ø	1,5 mm ⁽²⁾
Rodzaj spoiny pomiarowej	uziemiona (a) lub izolowana (b)
Klasa termoelementu	1
Przewód kompensacyjny L_K	spiralny 1,5 m ⁽²⁾
Materiał osłony	Inconel
Temperatura pracy przewodu i rękojeści	-20÷80°C

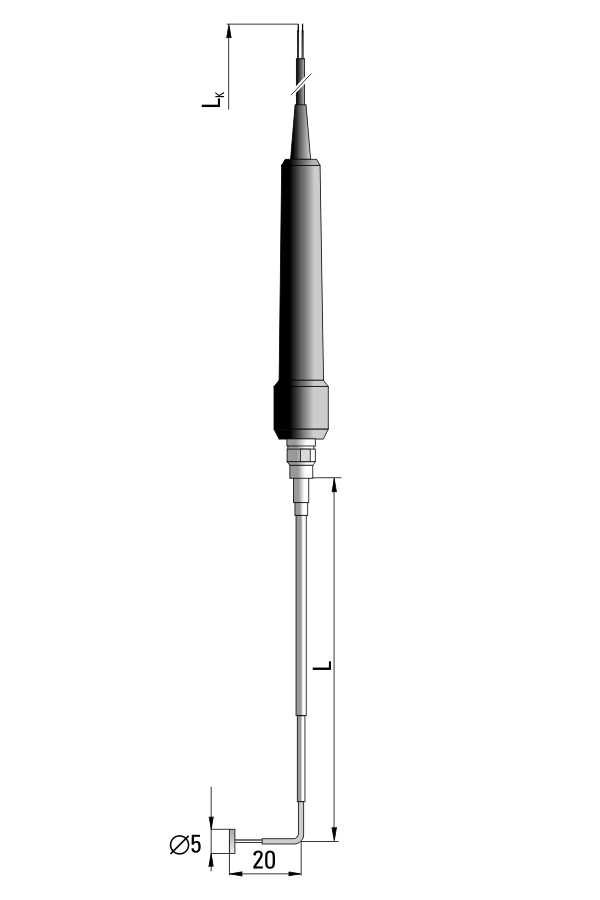

Długość czujnika L	120, 180, 300, 630, 800, 1000, 1500, 2000 mm ⁽²⁾
Wyposażenie dodatkowe	wtyk MT-K do współpracy z przenośnymi miernikami temperatury ⁽²⁾

⁽¹⁾ na życzenie inne termoelementy
⁽²⁾ inne parametry na życzenie

Załączniki do produktu

TP-101_4 karta katalogowa

{"rodzaj-spoiny":{"type":"translate","separator":"-","multiple":"0","translations":{"izolowana":{"value":"b","input":"0"},"uziemiona":{"value":"a","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"120":{"value":"","input":"0"},"180":{"value":"","input":"0"},"300":{"value":"","input":"0"},"630":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"1500":{"value":"","input":"0"},"2000":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"10","to":"2500","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"brak":{"value":"-","input":"0"},"wtyk-mt":{"value":"MT","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"rodzaj-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"standard-k-nicr-nial":{"value":"-","input":"0"},"j-fe-cuni":{"value":"(J)","input":"0"},"n-nicrsi-nisi":{"value":"(N)","input":"0"},"t-cu-cuni":{"value":"(T)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"standard-o15mm":{"value":"-","input":"0"},"o1mm":{"value":"(1mm)","input":"0"},"o-2mm":{"value":"(2mm)","input":"0"},"o-3mm":{"value":"(3mm)","input":"0"},"o-45mm":{"value":"(4,5mm)","input":"0"},"o-6mm":{"value":"(6mm)","input":"0"},"o-8mm":{"value":"(8mm)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przewod-kompensacyjny":{"type":"translate","separator":"","multiple":"0","translations":{"standard-15m-pvc-spiralny":{"value":"-","input":"0"},"pvc-prosty":{"value":"(PVC)","input":"0"},"silikon":{"value":"(silikon)","input":"0"},"teflon":{"value":"(teflon)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-kompensacyjnego-m":{"type":"translate","separator":"(Lk=","multiple":"0","translations":{"10":{"value":"1,0","input":"0"},"15":{"value":"1,5","input":"0"},"20":{"value":"2,0","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"20","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny","is_equal":"(PVC),(silikon),(teflon)"}]}}}

Zapytaj o produkt

(+48) 22 720 31 80

Nasz ekspert pomoże Ci dopasować produkt do Twoich potrzeb

Możliwe wykonania

Czas realizacji zamówień wynosi 2-7 dni roboczych

rodzaj spoiny

długość czujnika L [mm]

wyposażenie dodatkowe

rodzaj termoelementu

średnica termoelementu

przewód kompensacyjny

Kod zamówieniowy:

Uwagi:
