Temperature sensor TP-921_925

Temperature sensor TP-921_925

Temperature sensor TP-921_925

Product description

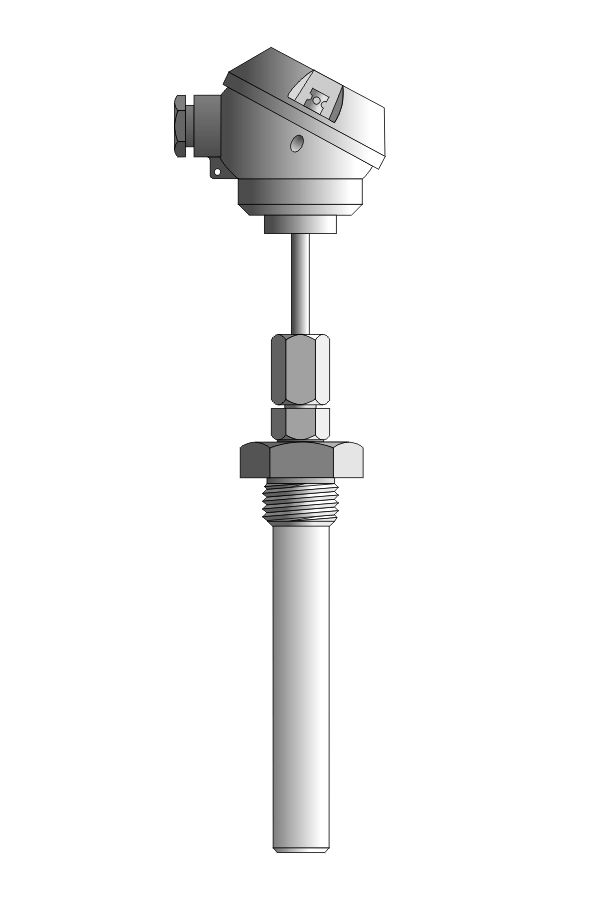

Sensor for temperature measurement in receptacles and pipelines, pressure installations up to 10 MPa.

Technical data

Temperature range	-40÷550°C platinum resistor Pt100
	-40÷400°C thermocouple Cu-CuNi (T)
	-40÷600°C thermocouple Fe-CuNi (J)
	-40÷900°C thermocouple NiCr-NiAl (K)
Measuring elements	1P2: single Pt100, 2-wire
	1P3: single Pt100, 3-wire
	1P4: single Pt100, 4-wire
	2P2: double Pt100, 2-wire
	2P3: double Pt100, 3-wire
	1J: single thermocouple J
	1K: single thermocouple K
	1T: single thermocouple T
	2J: double thermocouple J
	2K: double thermocouple K
	2T: double thermocouple T
Sensor class	platinum resistor: B
Sensor class	thermocouple T, J, K: 2
Sensor junction	insulated

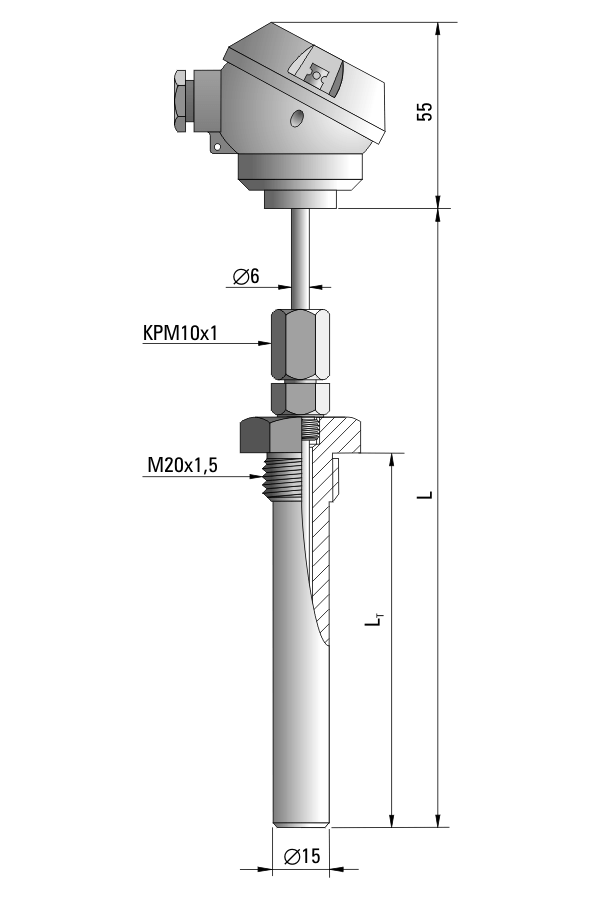

Versions – sheath length (LT)/sensor length (L)
TP-921	45/100 mm
TP-922	75/150 mm
TP-923	100/200 mm
TP-924	150/250 mm
TP-925	250/300 mm
Fitting	fixed M20x1.5 and compreesion gland KPM10x1
Maximum working pressure	10 MPa
Sheath Ø6 material	steel 1.4541
Preasure sheath material	toughened steel
Pressure sheath diameter	15 mm
Head type	B, MA (sensor heads)
Head operating temperature	-40÷100°C
Optional accesories	temperature transmitter
	thermowell for welding
	compensation cable

Product attachments

TP-921_925 data sheet
