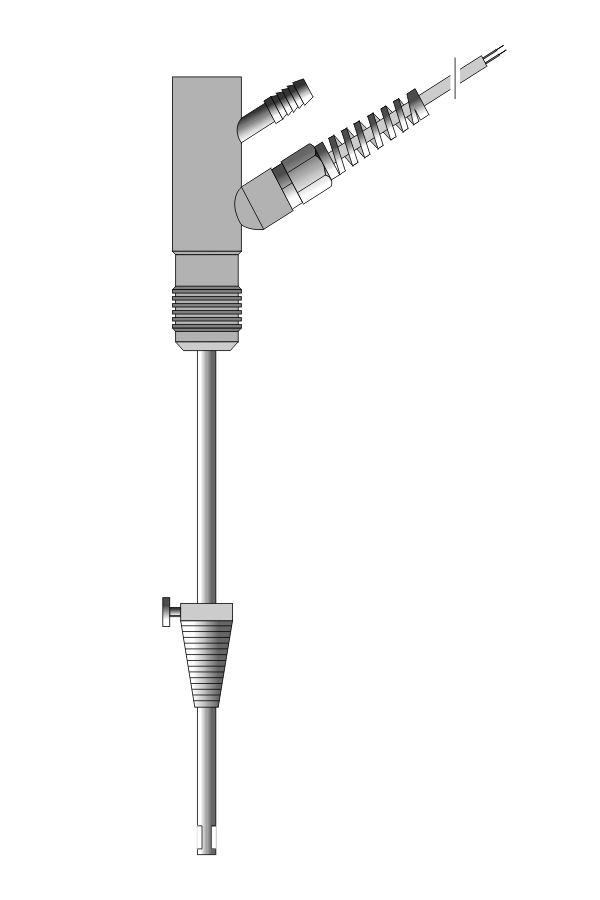

Temperature sensor TP-791

Product description

Specialized sensor for gas temperature measurement, for exhaust gas analyzers.

Technical data

Temperature range	0÷1000°C
Measuring element	thermocouple NiCr-NiAl (K)
Thermocouple class	1
Thermocouple junction	insulated
Handle and cable operating temperature	–20÷80°C
Sheath material	steel 1.4541

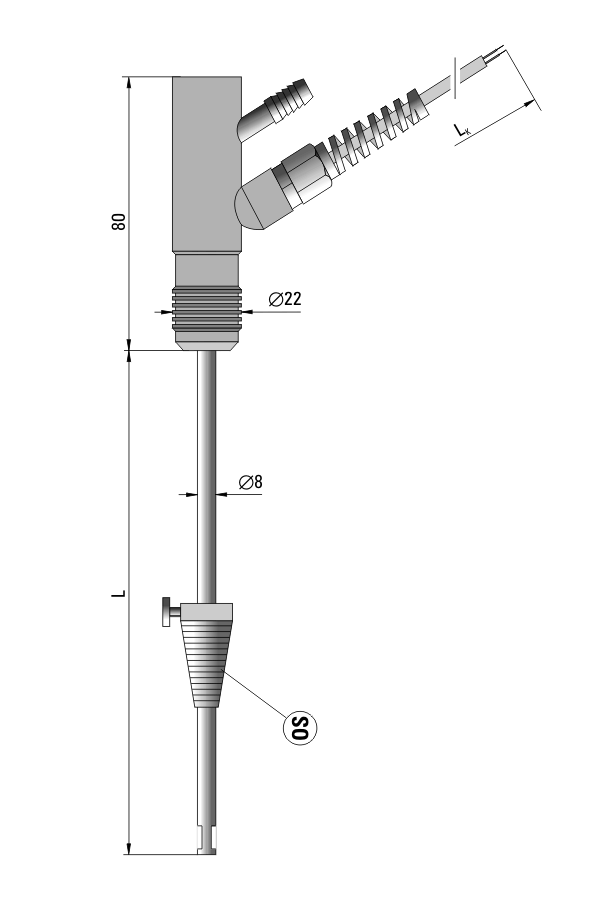

Sensor length (L)	300, 500, 700 mm
Compensation cable length (L_k)	2, 3, 4 m
Optional accesories	conical limiter for sensor immersion depth type OS

Product attachments

TP-791 data sheet
