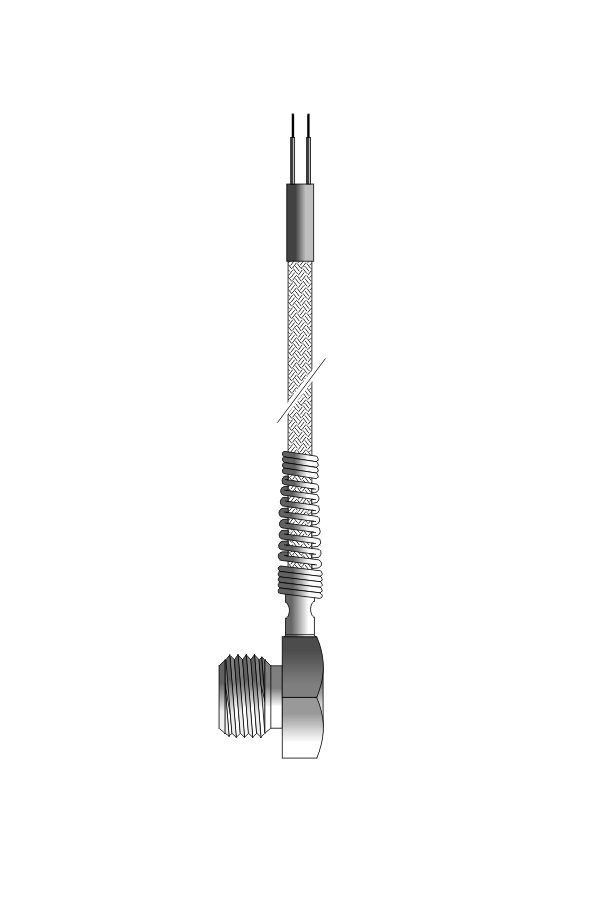

Temperature sensor TP-374

Product description

Universal temperature sensor with threaded fitting.

Technical data

Temperature range	-40÷400°C
Measuring element	platinum resistor (Pt100) ⁽¹⁾ thermocouple Cu-CuNi (T) thermocouplet Fe-CuNi (J) thermocouplet NiCr-NiAl (K)
Measuring element class	2 (B) ⁽¹⁾
Measuring junction	insulated ⁽¹⁾
Sheath	steel 1.4541
Cable insulation	fiber glass and steel braid
Cable length (Lk)	0.5, 1.5, 2.5 ⁽¹⁾
Fitting version (M)	M6, M8x1, M10x1, M12x1,5, M20x1,5, G1/2″. 1/4″-20 ⁽¹⁾

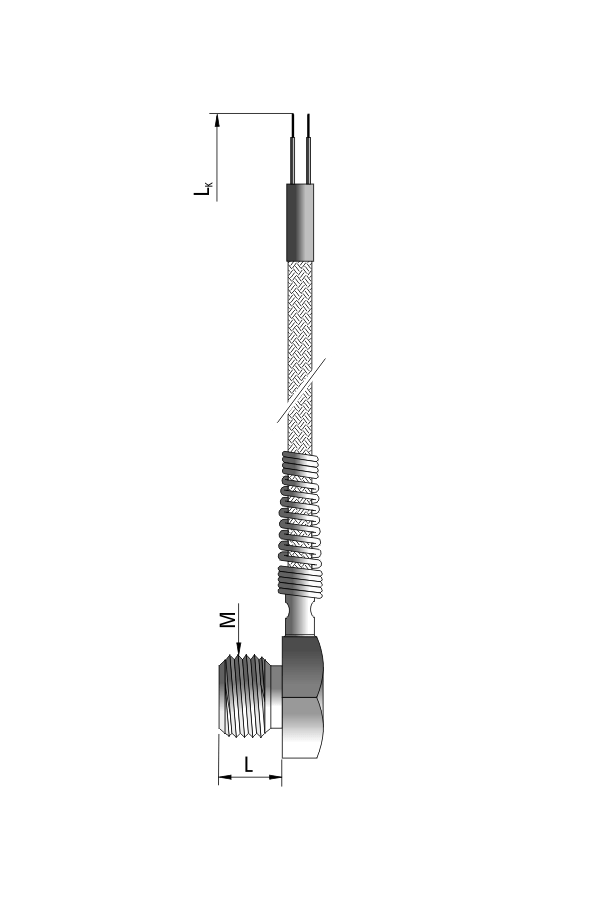

Versions
M ⁽²⁾	L ⁽²⁾	Lc ⁽²⁾
M6	10	16,5
M8x1	12	19
M10x1	15	22,5
M12x1,5	20	29
M20x1,5	30	43
G1/2″	30	43
1/4″-20	15	21,5

⁽¹⁾ Pt500, Pt1000, Ni100, Ni1000 on demand
⁽²⁾ Other parameters according to customer requirement

Product attachments

TP-373_375 data sheet
