Temperature sensor TP-366

Product description

Sensor for temperature measurement of machine parts, blocks and various construction elements.

Technical data

Temperature range	-40÷400°C
Measuring element	platinum resistor Pt100 ⁽¹⁾ thermocouple Cu-CuNi (T) thermocouple Fe-CuNi (J) thermocouple NiCr-NiAl (K)
Measuring element class	2 (B) ⁽²⁾
Measuring junction	insulated ⁽²⁾

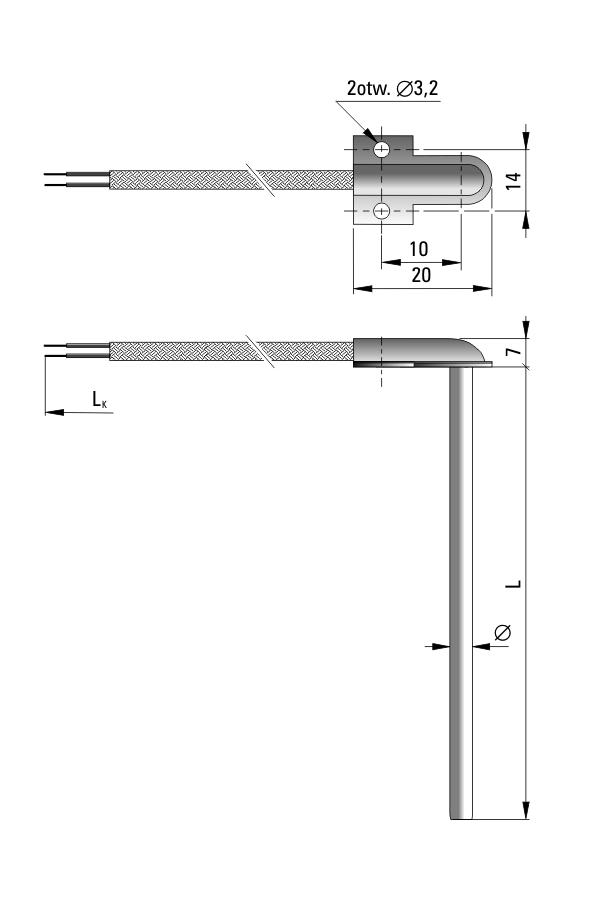

Sensor length (L)	20÷1000 mm ⁽²⁾
Cable length (Lk)	0.5÷2.5 m ⁽²⁾
Cable insulation	fiber glass and steel braid ⁽²⁾
Sheath material	steel 1.4541
Additional accesories	compression gland KP ⁽²⁾

⁽¹⁾ Pt500, Pt1000, Ni100, Ni1000 on demand
⁽²⁾ Other paremeters according to customer requirements

Product attachments

TP-366 data sheet

{"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"resistor-pt100":{"value":"Pt100","input":"0"},"thermocouple-k-nicr-nial":{"value":"K","input":"0"},"thermocouple-j-fe-cuni":{"value":"J","input":"0"},"thermocouple-t-cu-cuni":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-oslony-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"2-5":{"value":"","input":"0"},"3":{"value":"","input":"0"},"4":{"value":"","input":"0"},"5":{"value":"","input":"0"},"6":{"value":"","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"20":{"value":"","input":"0"},"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"500":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"05":{"value":"","input":"0"},"10":{"value":"","input":"0"},"15":{"value":"","input":"0"},"20":{"value":"","input":"0"},"25":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"standard-none":{"value":"-","input":"0"},"kpm8x1":{"value":"(KPM8x1)","input":"0"},"kpm10x1":{"value":"(KPM10x1)","input":"0"},"kpm12x15":{"value":"(KPM12x1,5)","input":"0"},"other":{"value":"-KP-","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"opcje-przewod":{"type":"translate","separator":"","multiple":"0","translations":{"standard-fiber-glass-and-steel-braid-tmax-400c":{"value":"-","input":"0"},"pvc-tmax-80c":{"value":"(PVC)","input":"0"},"silicone-tmax-180c":{"value":"(silicone)","input":"0"},"ptfe-tmax-260c":{"value":"(PTFE)","input":"0"},"armor-sheather":{"value":"(armor)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days

measuring element

sheath outer diameter [mm]

sensor length L [mm]

cable length (Lk) [m]

compression gland

cable sheath material

Ordering code:

Remarks:
