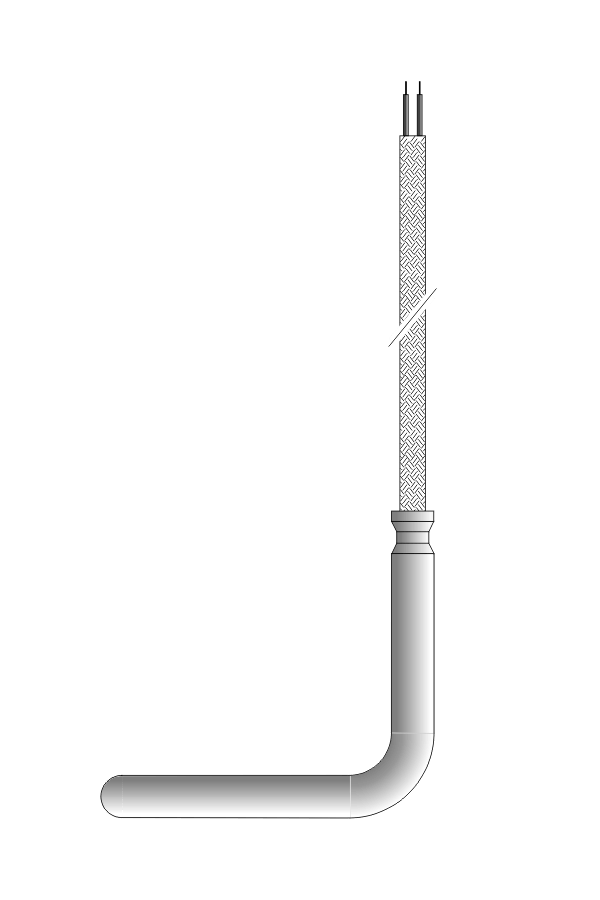

Temperature sensor TP-363

Product description

Universal temperature sensor.

Technical data

Temperature range	-40÷400°C
Measuring element	platinum resistor Pt100 thermocouple Cu-CuNi (T) thermocouple Fe-CuNi (J) thermocouple NiCr-NiAl (K)
Measuring element class	2 (B)
Measuring junction	insulated

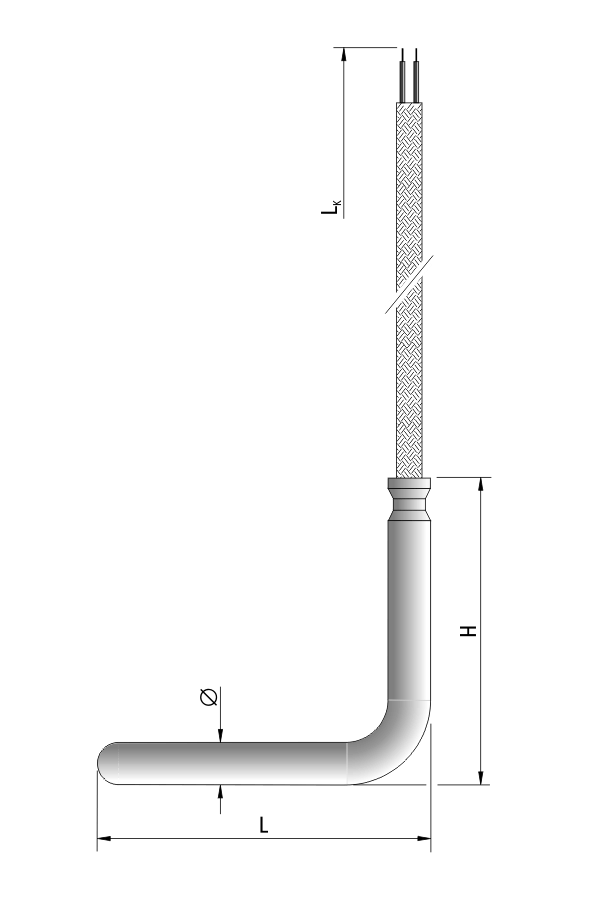

Sensor diameter	4, 5, 6, 8 mm
Sensor length (L)	50÷1000 mm
Sensor length (H)	50÷1000 mm
Cable length (Lk)	0.15÷2.5 m
Cable insulation	fiber glass and steel braid
Sheath material	steel 1.4541

Product attachments

TP-363 data sheet

{"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"resistor-pt100":{"value":"Pt100","input":"0"},"k-nicr-nial":{"value":"K","input":"0"},"j-fe-cuni":{"value":"J","input":"0"},"t-cu-cuni":{"value":"T","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-oslony-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"4":{"value":"","input":"0"},"5":{"value":"","input":"0"},"6":{"value":"","input":"0"},"8":{"value":"","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"500":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-h-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"500":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"inna":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"05":{"value":"","input":"0"},"10":{"value":"","input":"0"},"15":{"value":"","input":"0"},"20":{"value":"","input":"0"},"25":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"opcje-przewod":{"type":"translate","separator":"","multiple":"0","translations":{"standard-fiber-glass-and-steel-braid-tmax-400c":{"value":"-","input":"0"},"pvc-tmax-80c":{"value":"(PVC)","input":"0"},"silicone-tmax-180c":{"value":"(silicone)","input":"0"},"ptfe-tmax-260c":{"value":"(PTFE)","input":"0"},"armor-sheather":{"value":"(armor)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wymagania-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"none":{"value":"-","input":"0"},"add":{"value":"(","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"such as flange, compression gland, diffrent angle, shape etc.","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days

measuring element

sheath outer diameter [mm]

sensor length L [mm]

sensor length H [mm]

cable length (Lk) [m]

cable sheath material

additional requirements ?

Ordering code:

Remarks:
