Temperature sensor TP-351

Product description

Sheathed thermocouple temperature sensor.

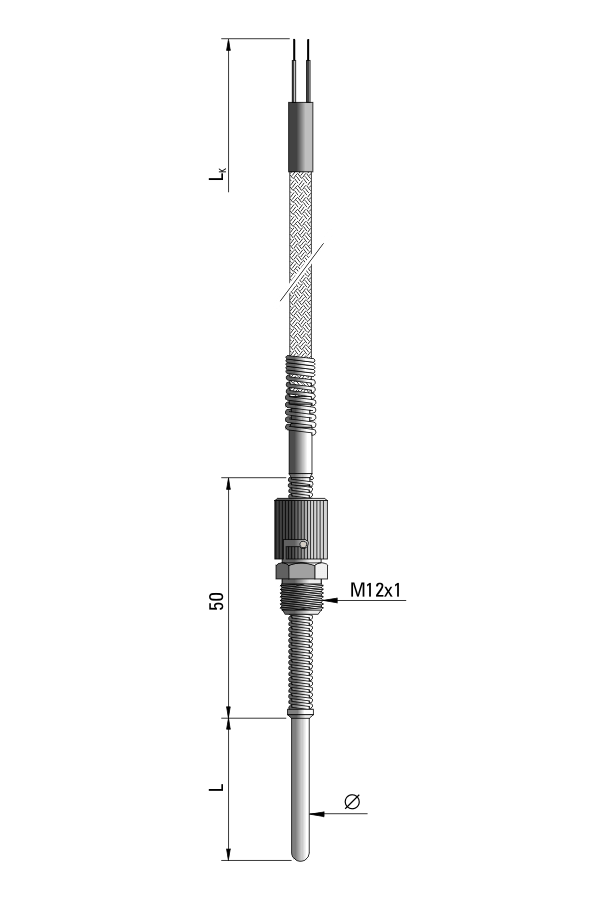

Technical data

Temperature range	-40÷700°C
Measuring element	thermocouple Fe-CuNi (J) thermocouple NiCr-NiAl (K)
Measuring element class	1
Measuring junction	a: grounded, b: insulated
Cable length (Lk)	0.5÷5.0 m
Cable insulation	fiber glass and steel braid
Sheath material	Inconel
Fitting thread	G1/2″

Product attachments

TP-351_352 data sheet

{"termoelement":{"type":"translate","separator":"","multiple":"0","translations":{"j-fe-cuni":{"value":"J","input":"0"},"k-nicr-nial":{"value":"K","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"rodzaj-spoiny":{"type":"translate","separator":"-","multiple":"0","translations":{"a-grounded":{"value":"a","input":"0"},"b-insulated":{"value":"b","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-czujnika-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"15":{"value":"","input":"0"},"2":{"value":"","input":"0"},"3":{"value":"","input":"0"},"45":{"value":"","input":"0"},"6":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"20":{"value":"","input":"0"},"50":{"value":"","input":"0"},"100":{"value":"","input":"0"},"200":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-lk-m":{"type":"translate","separator":"-","multiple":"0","translations":{"05":{"value":"","input":"0"},"10":{"value":"","input":"0"},"15":{"value":"","input":"0"},"25":{"value":"","input":"0"},"30":{"value":"","input":"0"},"50":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"opcje-izolacja-przewodu":{"type":"translate","separator":"","multiple":"0","translations":{"standard-fiber-glass-and-steel-braid-tmax-400c":{"value":"-","input":"0"},"pvc-tmax-80c":{"value":"(PVC)","input":"0"},"silicone-tmax-180c":{"value":"(silikon)","input":"0"},"ptfe-tmax-260c":{"value":"(teflon)","input":"0"},"armor-sheather":{"value":"(pancerz)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wymagania-dodatkowe":{"type":"translate","separator":"","multiple":"0","translations":{"none":{"value":"-","input":"0"},"add":{"value":"(","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"such as different: thread, diameter, edge shape, length of compression, gland or thread","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days

thermocouple

measuring junction

sheath outer diameter [mm]

sensor length L [mm]

cable length (Lk) [m]

cable sheath material

additional requirements ?

Ordering code:

Remarks:

Add to quote request
