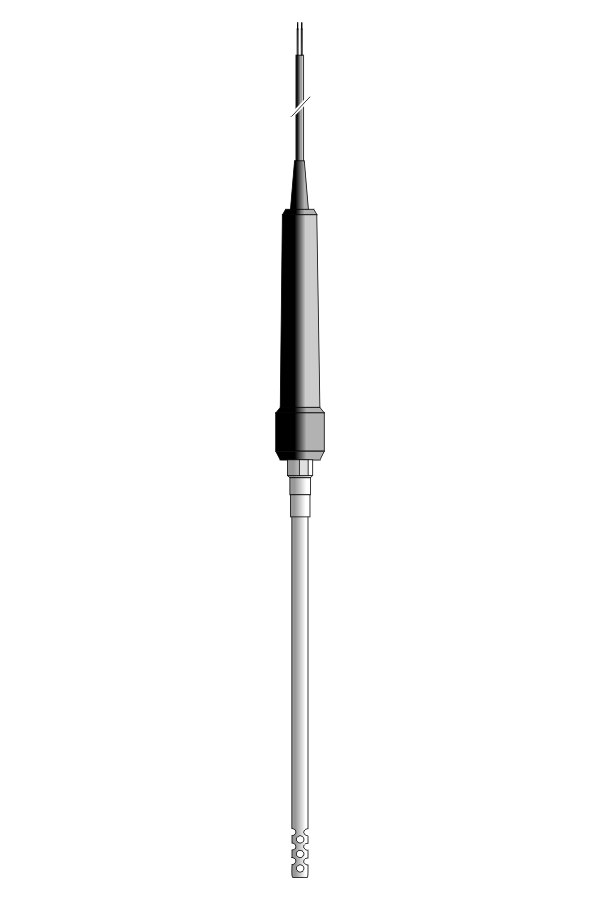

Temperature sensor TP-141_142

Product description

Sensor for temperature measurement of gases.

Technical data

Temperature range	-40°C…+900°C (K) -40°C…+550°C (Pt100)
Measuring element	thermocouple NiCr-NiAl (K) ⁽¹⁾
Measuring element	platinium resistor (Pt100) ⁽²⁾
Measuring junction	isolated ⁽³⁾
Class of processing element	2 (B)

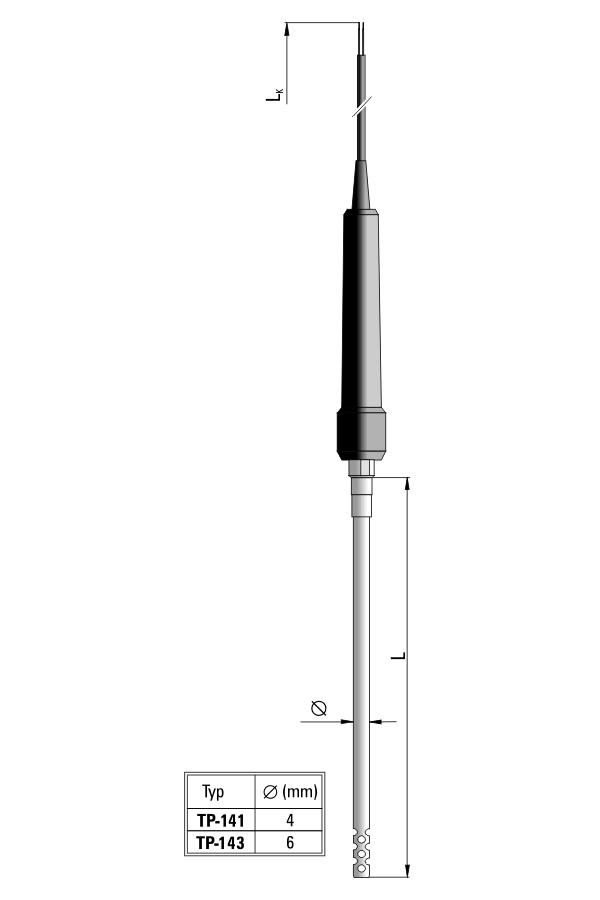

Sheath diameter	4, 6 mm
Sheath material	steel 1.4541
Cable length	1,5m – spiral ⁽³⁾
Handle and cable operating temperature	–20°C…+80°C
Sensor length	200, 300, 400, 600 lub 800 mm ⁽³⁾

^{(1) Other thermocouples on demand

(2) Pt500, Pt1000, Ni100, Ni1000 on demand}^{(3) Other parameters according to customer requirements}

Product attachments

TP-111_142 data sheet

{"typ-srednica":{"type":"translate","separator":"-","multiple":"0","translations":{"tp-141-o-4mm":{"value":"141","input":"0"},"tp-142-o-6mm":{"value":"142","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"element-przetwarzajacy":{"type":"translate","separator":"","multiple":"0","translations":{"nicr-nial-k":{"value":"K","input":"0"},"platinum-resistor-pt100":{"value":"Pt100","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"200":{"value":"","input":"0"},"300":{"value":"","input":"0"},"400":{"value":"","input":"0"},"600":{"value":"","input":"0"},"800":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"0","type":"number","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"none":{"value":"-","input":"0"},"mt-k-plug-k":{"value":"MT-K","input":"0"},"mp-plug-pt100":{"value":"MP","input":"0"},"other-plug":{"value":"MT-x","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days

type / diameter

measuring element

sensor length L [mm]

additional accessories

Ordering code:

Remarks:
