Temperature sensor TP-121
Product description

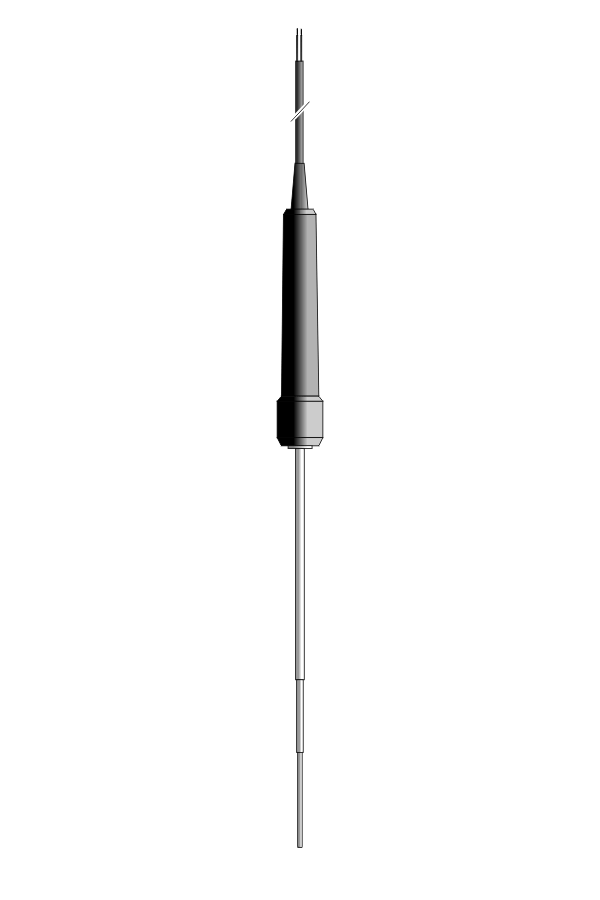

Thermoelectric sensor for measuring surface temperature with spring clamp.
Technical data
| Temperature range | -40°C…+800°C |
| Measuring element | NiCr-NiAl (K) (1) |
| Class of processing element | 2 |
| Measuring junction | grounded (2) |

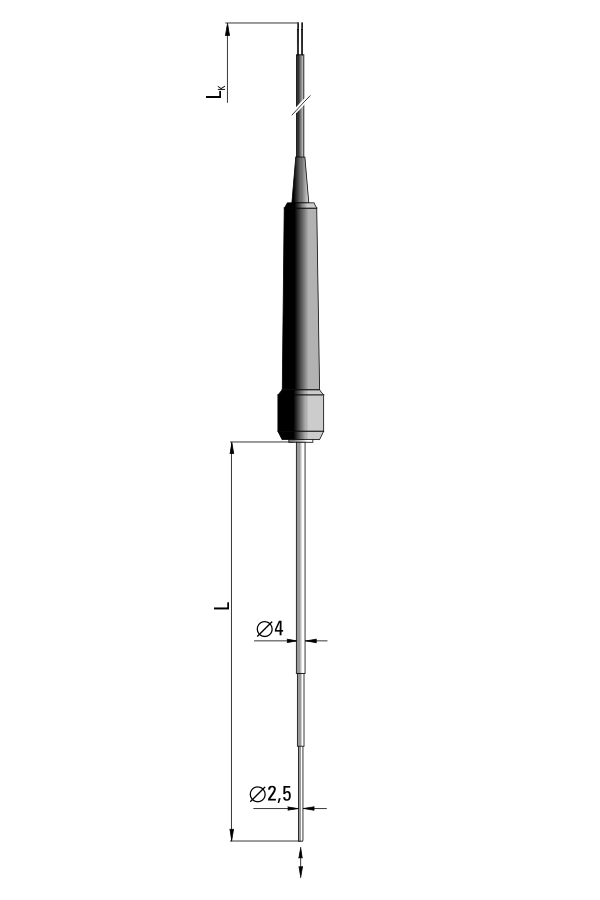

| Sensor length L | 100, 150, 200, 250, 300 mm (2) |
| Length of compensation cable | 1,5 m, spiral (2) |
| Sheath material | steel 1H18N9T |
| Handle and cable operating temperature | -20°C…+80°C |
| Additional accessories | MT-K plug (for use with hand held thermometers) (2) |
(1) Other thermocouples on demand
(2) Other parameters according to customer requirements
