Temperature sensor TP-103
Product description
Universal sensors for measuring the temperature of liquids, gases or surfaces.
Technical data
| Temperature range | -40°C…+1100°C |
| Sheathed thermocouple | NiCr-NiAl (K) (1) |
| Thermocouple outer diameter | 1,5 mm (2) |
| Measuring junction | grounded (type a), insulated (type b) |

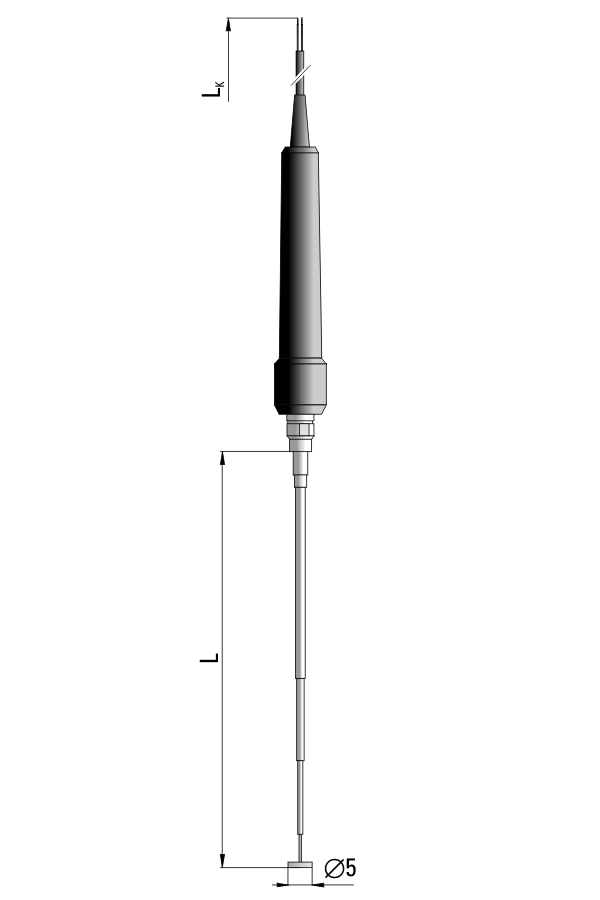

| Sensor length | 120, 180, 300, 630, 800, 1000, 1500 lub 2000 mm (2) |
| Class of thermocouple | 1 |
| Compensation cable Lk | spiral 1,5 m (2) |
| Sheath material | Inconel |
| Handle operating temperature | -20°C…+80°C |
| Additional accessories | plug type MT-K (for use with hand held meters) (2) |
(1) Other thermocouples on demand
(2) Other parameters according to customer requirements
