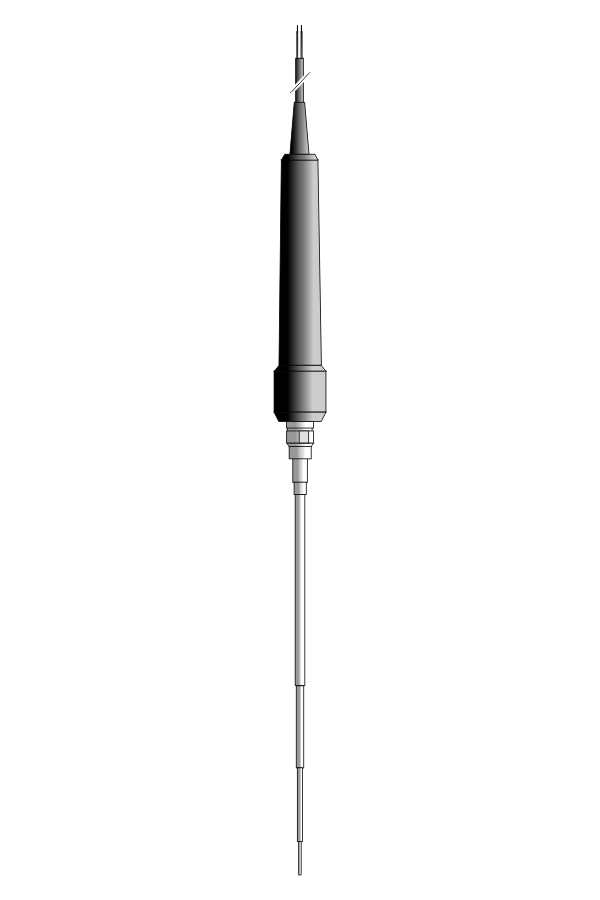

Temperature sensor TP-101

Product description

Universal sensor for measuring the temperature of liquids, gases or surfaces. Straight measuring tip.

Technical data

Temperature range	-40°C…+1100°C
Sheathed thermocouple	NiCr-NiAl (K) ⁽¹⁾

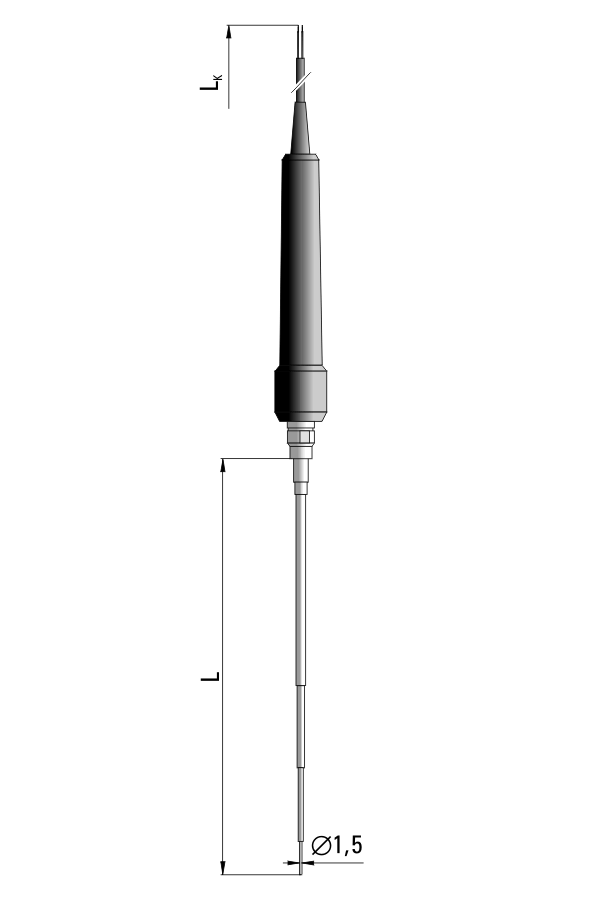

Thermocouple outer diameter	1,5 mm (2)
Measuring junction	grounded (type a), insulated (type b)
Sensor length	120, 180, 300, 630, 800, 1000, 1500 lub 2000 mm ⁽²⁾
Class of thermocouple	1
Compensation cable Lk	spiral 1,5 m ⁽²⁾
Sheath material	Inconel
Handle operating temperature	-20°C…+80°C
Additional accessories	plug type MT-K (for use with hand held meters) ⁽²⁾

^{(1) Other thermocouples on demand}^{(2) Other parameters according to customer requirements}

Product attachments

TP-101 data sheet

{"rodzaj-spoiny":{"type":"translate","separator":"-","multiple":"0","translations":{"insulated":{"value":"b","input":"0"},"grounded":{"value":"a","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-czujnika-l-mm":{"type":"translate","separator":"-","multiple":"0","translations":{"120":{"value":"","input":"0"},"180":{"value":"","input":"0"},"300":{"value":"","input":"0"},"630":{"value":"","input":"0"},"800":{"value":"","input":"0"},"1000":{"value":"","input":"0"},"1500":{"value":"","input":"0"},"2000":{"value":"","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"50","to":"2500","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wyposazenie-dodatkowe":{"type":"translate","separator":"-","multiple":"0","translations":{"none":{"value":"-","input":"0"},"mt-plug":{"value":"MT","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"rodzaj-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"standard-k-nicr-nial":{"value":"-","input":"0"},"j-fe-cuni":{"value":"(J)","input":"0"},"n-nicrsi-nisi":{"value":"(N)","input":"0"},"t-cu-cuni":{"value":"(T)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"srednica-termoelementu":{"type":"translate","separator":"","multiple":"0","translations":{"standard-o15mm":{"value":"-","input":"0"},"o1mm":{"value":"(1mm)","input":"0"},"o-2mm":{"value":"(2mm)","input":"0"},"o-3mm":{"value":"(3mm)","input":"0"},"o-45mm":{"value":"(4,5mm)","input":"0"},"o-6mm":{"value":"(6mm)","input":"0"},"o-8mm":{"value":"(8mm)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"przewod-kompensacyjny":{"type":"translate","separator":"","multiple":"0","translations":{"standard-spiral-15m-pvc":{"value":"-","input":"0"},"pvc-other":{"value":"(PVC)","input":"0"},"silicone":{"value":"(silicone)","input":"0"},"ptfe":{"value":"(PTFE)","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"dlugosc-przewodu-kompensacyjnego-m":{"type":"translate","separator":"(Lk=","multiple":"0","translations":{"10":{"value":"1,0","input":"0"},"15":{"value":"1,5","input":"0"},"20":{"value":"2,0","input":"0"},"other":{"value":"","input":"1"}},"validation":{"required":"1","type":"number","range":[{"from":"1","to":"20","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"przewod-kompensacyjny","is_equal":"(PVC),(silicone),(PTFE)"}]}}}

NAJPOPULARNIEJSZE WARIANTY

TP-101-a-120-MT

204,00 zł
Stan: 6

TP-101-b-300-MT

204,00 zł
Stan: 8

TP-101-b-800-MT

244,00 zł
Stan: 26

Excluding VAT

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days

measuring junction

sensor length L [mm]

additional accessories

sheathed thermocouple

thermocouple diameter

compensation cable

Ordering code:

Remarks:

Add to quote request
