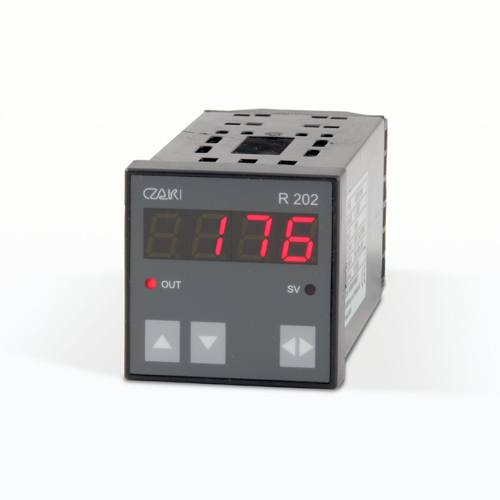

R-202 Temperature controller (on/off with hysteresis control characteristic)

Product description

Easy to use microprocessor temerature controller. For use directly with temperature sensors or transmitters with current output.

control characteristic – on/off with hysteresis
for use with sensors: Pt100, Fe-CuNi (J), NiCr-NiAl(K), NiCrSi-NiSi (N), PtRh30-PtRh6 (B), PtRh13-Pt (R), PtRh10-Pt (S), Cu-CuNi (T) or current loop 4…20 mA (420)
automatic compensation of thermocouple cold junction
assembly into the hole on the board or control panel

Technical data

Temperature control range	see table in data sheet
Accuracy, (T 23°C ± 5°C)	0,25% of control range
Output	relay contact or control voltage for SSR
Relay contacts	SPDT, 5 A, 250 VAC / 24 VDC
SSR control voltage	10VDC ± 2V
Thermocouple cold junction compensation	internal, automatic
Ambient temperature T	0°C…+45°C
Standard power supply	230 V AC +10% –15%, 50 Hz, 3 VA
Optional power supply	24 V AC, 24 V DC, 12 V DC, 110/115 V AC
Mounting window dimensions (height x width)	45,5 x 45,5 mm
Dimensions (height x width x depth) / weight	48 x 48 x 115 mm / 200 g

Product attachments

R-202 - data sheet R-202 - user manual

{"wejscie":{"type":"translate","separator":"-","multiple":"0","translations":{"pt100-platinum-resistor":{"value":"Pt100","input":"0"},"k-type-thermocouple-nicr-nial":{"value":"K","input":"0"},"j-type-thermocouple-fe-cuni":{"value":"J","input":"0"},"n-type-thermocouple-nicrsi-nisi":{"value":"N","input":"0"},"t-type-thermocouple-cu-cuni":{"value":"T","input":"0"},"b-type-thermocouple-ptrh30-ptrh6":{"value":"B","input":"0"},"r-type-thermocouple-ptrh13-pt":{"value":"R","input":"0"},"s-type-thermocouple-ptrh10-pt":{"value":"S","input":"0"},"current-loop-4-20ma":{"value":"420","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"wykonanie":{"type":"translate","separator":"\/","multiple":"0","translations":{"resolution-1c":{"value":"-","input":"0"},"01c-only-up-to-1999c":{"value":"1","input":"0"},"for-cooling":{"value":"2","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wejscie","is_equal":"Pt100"}]}},"wskazanie-dla-4ma":{"type":"user","separator":"(","multiple":"0","translations":{"enter-value":{"value":"","input":"0"}},"validation":{"required":"1","type":"number","range":[{"from":"-200","to":"1900","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wejscie","is_equal":"420"}]}},"wskazanie-dla-20ma":{"type":"user","separator":"...","multiple":"0","translations":{"enter-value":{"value":"","input":"0"}},"validation":{"required":"1","type":"number","range":[{"from":"-100","to":"1999","field":"","value":""}]},"hint":"","display":{"always":"-1","when":[{"field":"wejscie","is_equal":"420"}]}},"wyjscie-regulacyjne":{"type":"translate","separator":"-","multiple":"0","translations":{"relay-contacts":{"value":"-","input":"0"},"control-voltage-for-ssr":{"value":"SSR","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}},"zasilanie":{"type":"translate","separator":"-","multiple":"0","translations":{"230v-ac":{"value":"-","input":"0"},"110-115v-ac":{"value":"110\/115VAC","input":"0"},"24v-ac":{"value":"24VAC","input":"0"},"24v-dc":{"value":"24VDC","input":"0"},"12v-dc":{"value":"12VDC","input":"0"}},"validation":{"required":"0","type":"","range":[{"from":"","to":"","field":"","value":""}]},"hint":"","display":{"always":"1","when":[{"field":"","is_equal":""}]}}}

NAJPOPULARNIEJSZE WARIANTY

R-202-Pt100

249,00 zł
Stan: 6

R-202-Pt100-2

249,00 zł
Stan: 5

R-202-K

249,00 zł
Stan: 10

R-202-J

249,00 zł
Stan: 2

R-202-N

249,00 zł
Stan: 3

R-202-S

249,00 zł
Stan: 1

Excluding VAT

Ask about the product

(+48) 22 720 31 80

Our experts will help you to customize the product

Possible variants

Delivery time is 2-7 business days

type of sensor

control output

power supply

Ordering code:

Remarks:

Add to quote request
