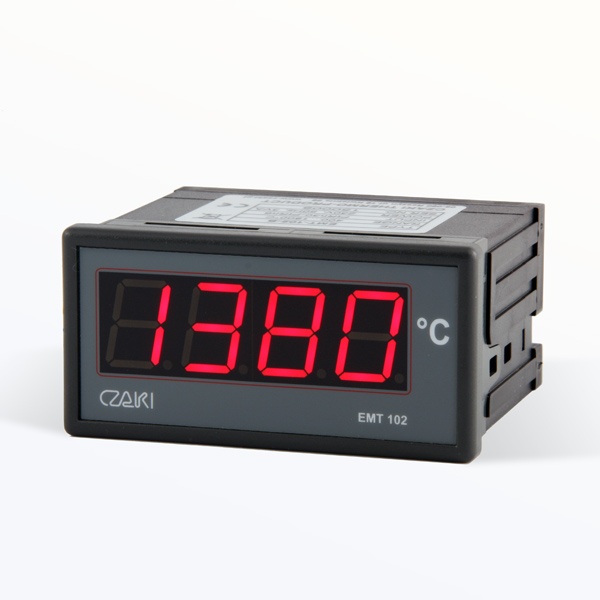

EMT-102 temperature meter

Product description

Features:

cooperation with sensors: Pt100, Ni100, K, J, N, T, B, R, S, 1-wire® semiconductor (DS18B20)
relay output with programmable alarm threshold
sensor nonlinearity compensation
thermocouple cold junction compensation
sensor wire resistance compensation (Pt100, Ni100)

Technical data

Input / measurement range
Pt100	-199÷850°C
Ni100	-60÷150°C
thermocouple J	-199÷1200°C
thermocouple K	-199÷1370°C
thermocouple N	-199÷1300°C
thermocouple S	0÷1700°C
thermocouple R	0÷1700°C
thermocouple B	400÷1800°C
thermocouple T	-199÷300°C
1-wire DS18B20	-55÷125°C
Resolution	0.1°C for T in (-100÷1000°C), 1°C otherwise
Accuracy	±0.15%T ±1 digit
Cold junction accuracy	±0.4°C
Display	4 digit LED 20 mm, red
Standard supply	230 VAC / 3 VA
Optional supply (LV)	10÷30 V DC, 500 mW
Ambient temperature	-25÷50°C
Ingress protection	IP61 (front) / IP20
Dimensions (heigth x width x depth)	48 x 96 x 80 mm
Mounting window (height x width)	45.2 x 92 mm
Weigth	260 g

Product attachments

EMT-102 data sheet EMT-102 manual
